A high-quality 3.3mH Corobar Coil with a resistance of 0.38Ω, suitable for crossover components.
Highlights
- Exceptional purity of copper with > 99.99% CU Reinheit.
- Includes a 10/40 mm wire connection length with 9mm tinning.
- Constructed with ABS coil body material for durability.
- Inductance tolerance of ±5% at nominal 25-degree C temperature.
Product details

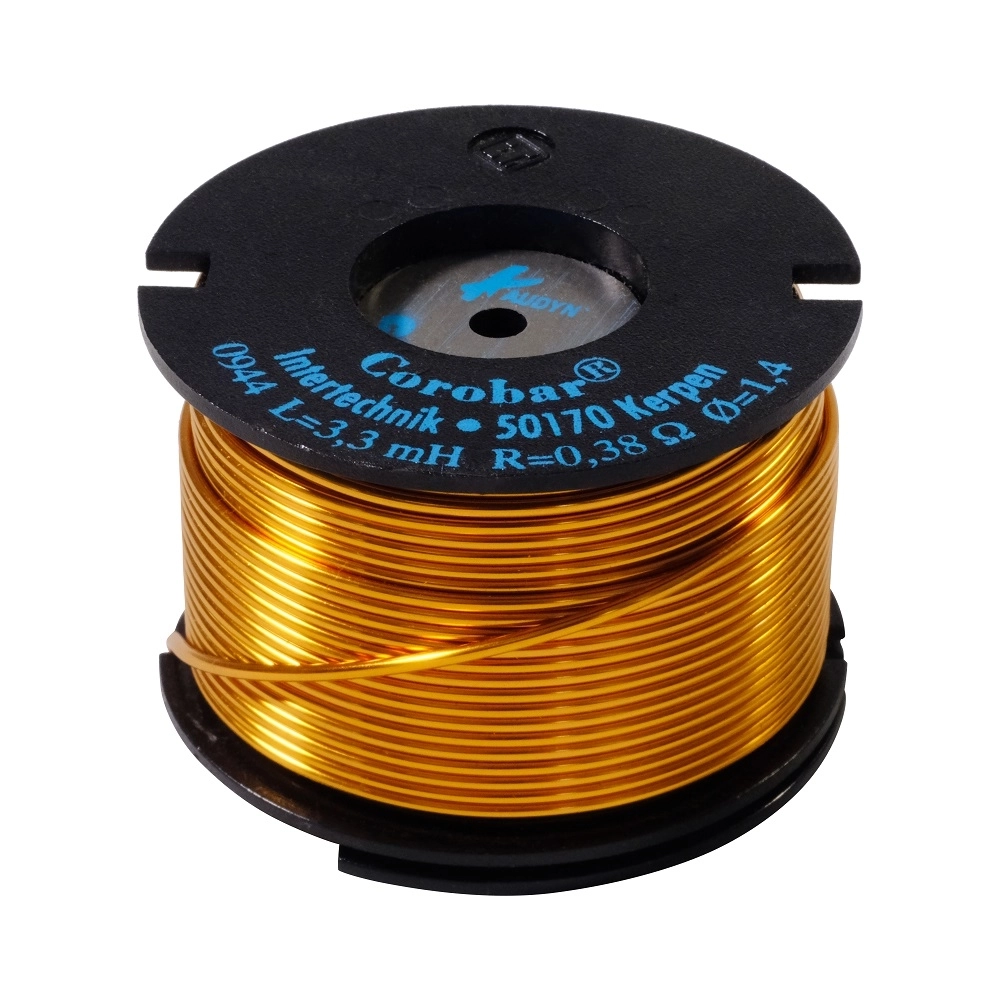

Audyn CO62/3.3/140 | 3,3 mH | 0,38 Ω | 5% | 15 AWG | Corobar Coil
The Audyn Corobar Coil is a high-performing crossover component, made with copper foil coils. Its 3.3mH inductance value and 0.38Ω resistance make it a reliable choice for audio applications. The coil boasts of a copper purity greater than 99.99%, ensuring superior electrical conductivity. Its connection length of 10/40mm and a 9mm tinning length provide ample space for secure connections. The coil is built with high-quality ABS material, promising a long-lasting lifespan. Also, it features an inductance tolerance of ±5% at a nominal 25-degree C, providing consistency in performance. The Corobar design makes it ideal for high-end audio systems, delivering clear and rich sound. This coil is perfect for those seeking to enhance the performance of their crossover components.
I.T. Intertechnik artikelnummer: 1340944
