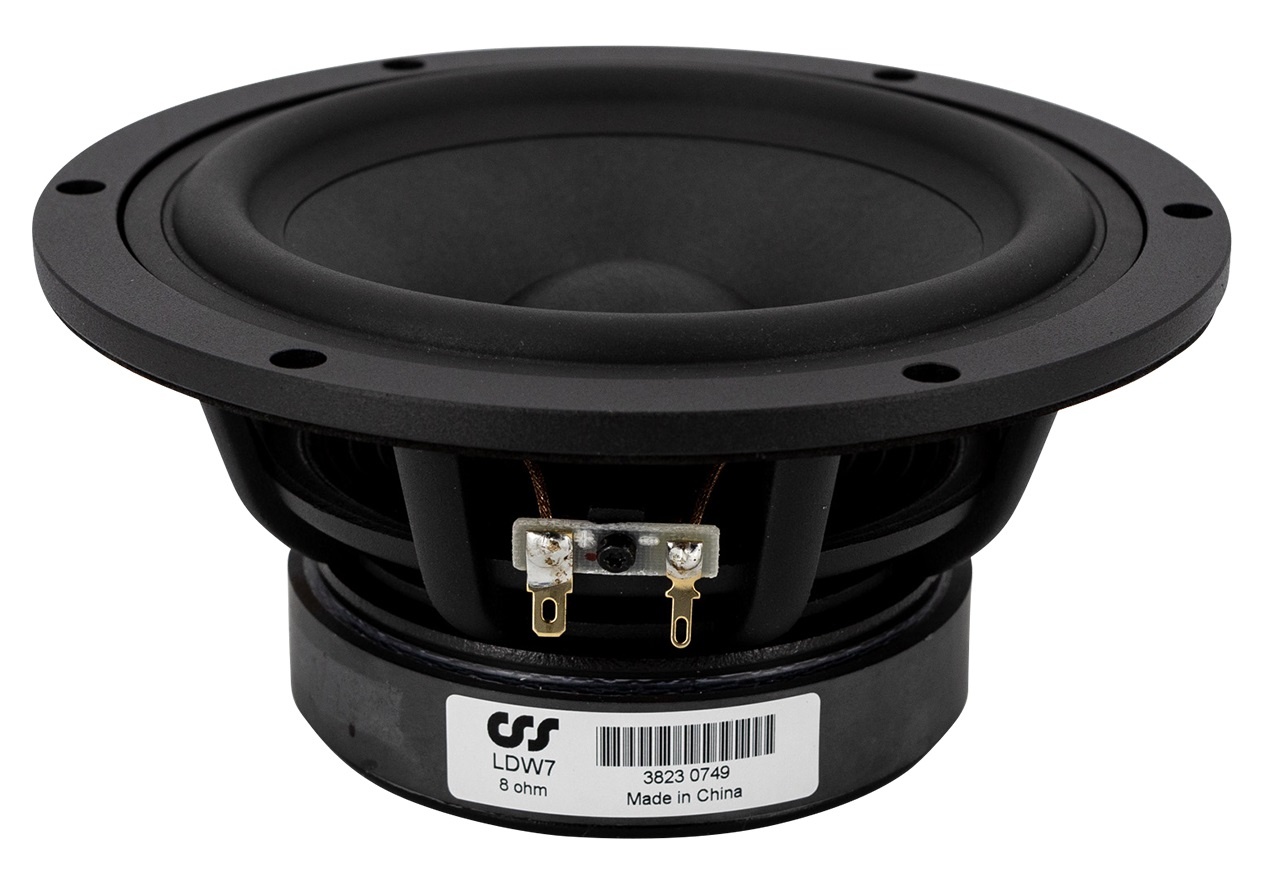

        LDW7 Bass-midwoofer

        CSS LDW7 Bass-midwoofer

        €199,95

        10+ Op voorraad

        CSS LDW7 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: CSS
        € 165,25€ 199,95 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 189,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving CSS LDW7 Bass-midwoofer

        Aspiring speaker builders, take note! The CSS LDW7 is a 7-inch bass-midwoofer driver that punches above its weight, offering both clear midrange and impactful bass at an attractive price point. This versatility makes it a popular choice for a wide range of DIY speaker projects.



        Highlights

        • Paper and fiberglass cone blend: This unique cone material offers a good balance of stiffness and flexibility, resulting in smooth midrange reproduction and extended bass response.
        • Symmetrical motor structure: This design helps to minimize distortion and ensure accurate sound reproduction.
        • Low distortion: The LDW7 is known for its clean sound, even at high volumes.
        • High power handling: This driver can handle a significant amount of power, making it suitable for use in loudspeakers designed for powerful sound.
        • Vented or sealed enclosure options: The LDW7 performs well in both vented enclosures, which typically produce deeper bass, and sealed enclosures, which offer tighter bass and a more compact design.



        Product details

        CSS LDW7 Bass-midwoofer



        The LDW7's secret weapon lies in its unique cone material. By blending paper and fiberglass, the cone achieves a balance of stiffness and flexibility. This translates to smooth and detailed midrange reproduction while allowing for extended bass response, ensuring your music comes alive with rich detail. Additionally, the symmetrical motor structure minimizes distortion for accurate sound across the frequency spectrum.



        The LDW7 is no slouch when it comes to power handling either. It can accommodate significant wattage, making it ideal for speakers designed to deliver powerful audio. Another plus is its adaptability to enclosure types. The LDW7 performs well in vented enclosures, known for producing deeper bass, or sealed enclosures, favored for tighter bass and a space-saving design. This flexibility allows you to tailor the speaker's sound characteristics to your specific preferences and project requirements.

        Toon meer

        Specificaties

        Artikelnummer
        LDW7
        EAN
        0848864053738
        Nominale diameter
        7"
        Belastbaarheid (RMS)
        80 Watts
        Belastbaarheid (max)
        200 Watts
        Impedantie (Z)
        Gevoeligheid (SPL bij 1m / 2.83V)
        86 dB
        Frequentierespons
        30 to 4,500Hz
        Spreekspoeldiameter
        1.5"
        Gelijkstroomweerstand (Re)
        6.4Ω
        Spreekspoelinductie (Le)
        0.17mH
        Resonantiefrequentie (Fs)
        30 Hz
        Mechanische Q (Qms)
        9
        Elektrische Q (Qes)
        0.39
        Totale Q (Qts)
        0.37
        Bewegende massa (Mms)
        21.9g
        Compliantie van de ophanging (Cms)
        1.3mm/N
        Effectief oppervlak (Sd)
        131cm²
        Krachtsfactor (BL)
        8.2T·m
        Equivalentvolume (Vas)
        30,86 Liter
        Maximale excursie (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Paper / Glass Fiber
        Surroundmateriaal
        Rubber
        Spreekspoel vormermateriaal
        Fiberglass
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        7.166"
        Totale diepte
        3.23"
        Montagegatdiameter
        6.02"
        Bolt Circle Diameter
        6.67
        # Bevestigingsgaten
        6
        Gesloten volume
        8,5 Liter
        Gesloten F3
        64.4Hz
        Gepoort volume
        19,8 Liter
        Gepoort F3
        35.9Hz
