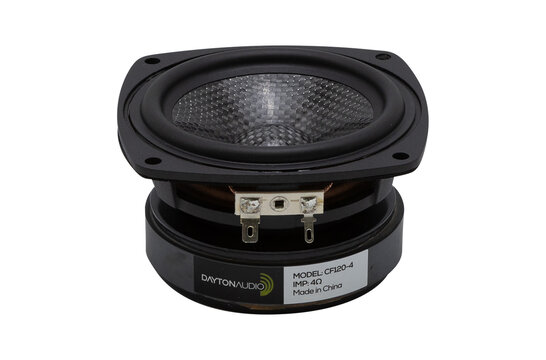

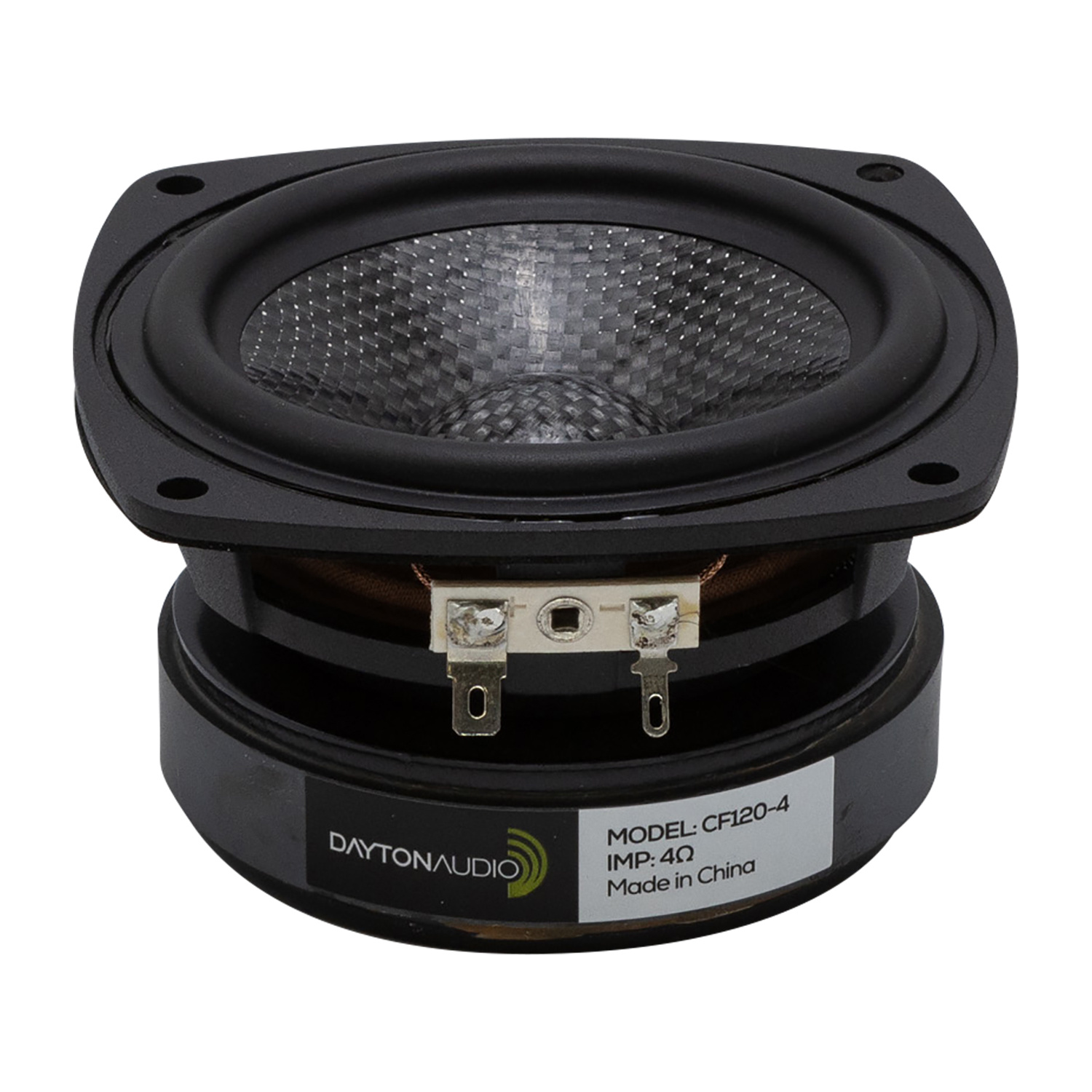

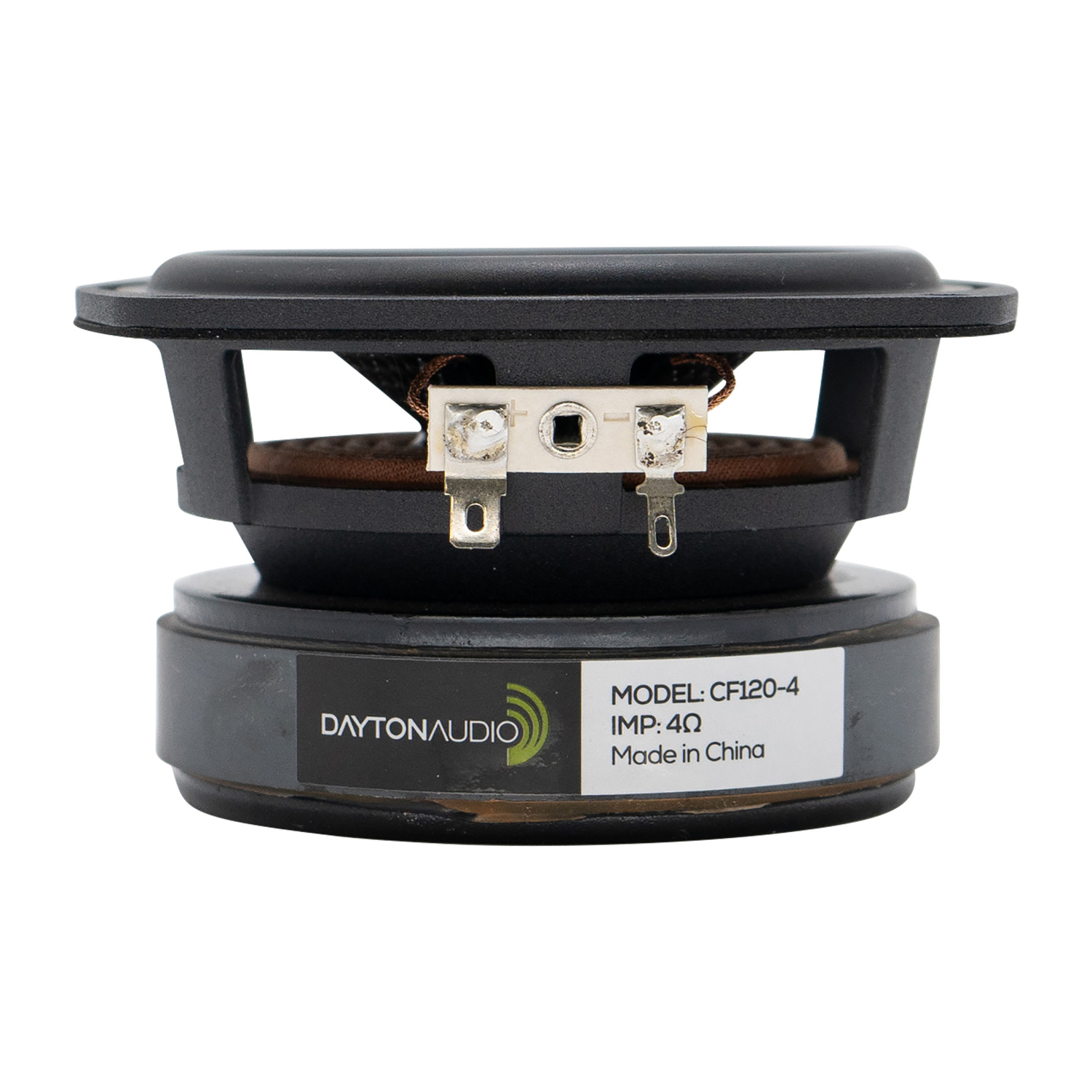

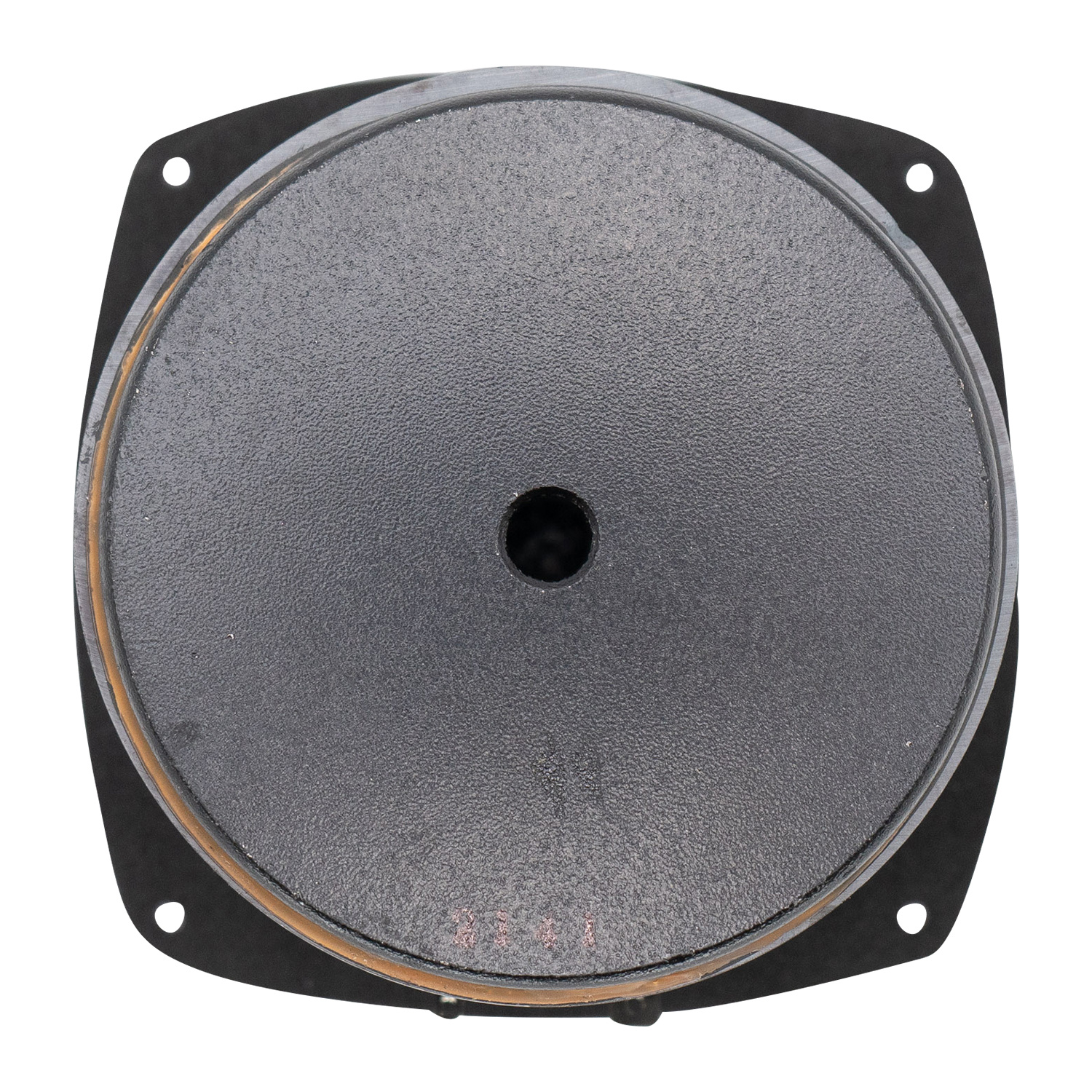

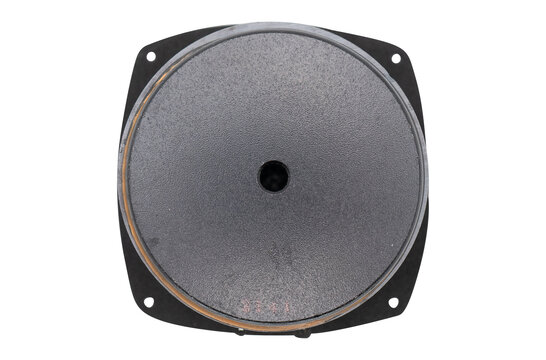

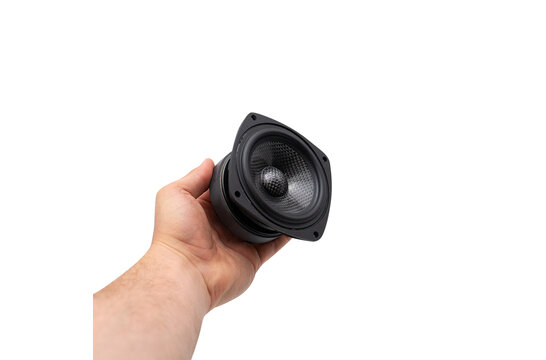

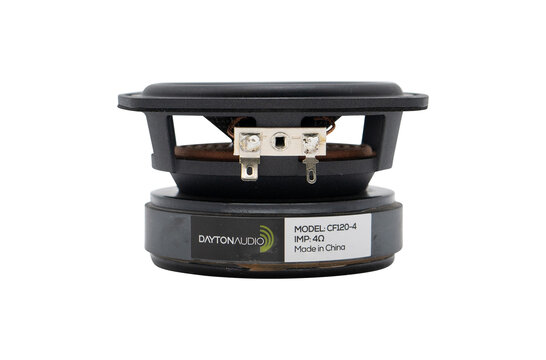

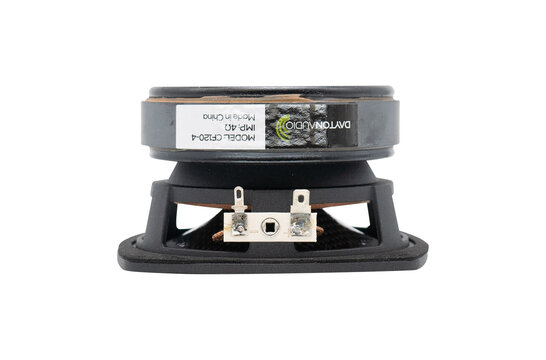

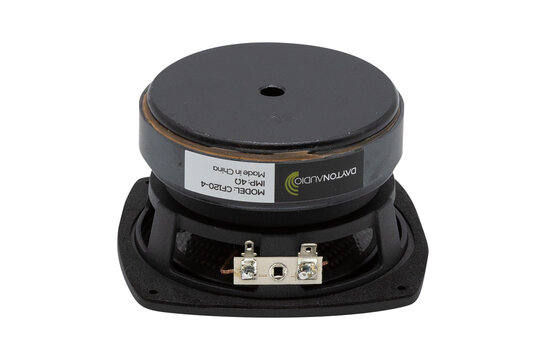

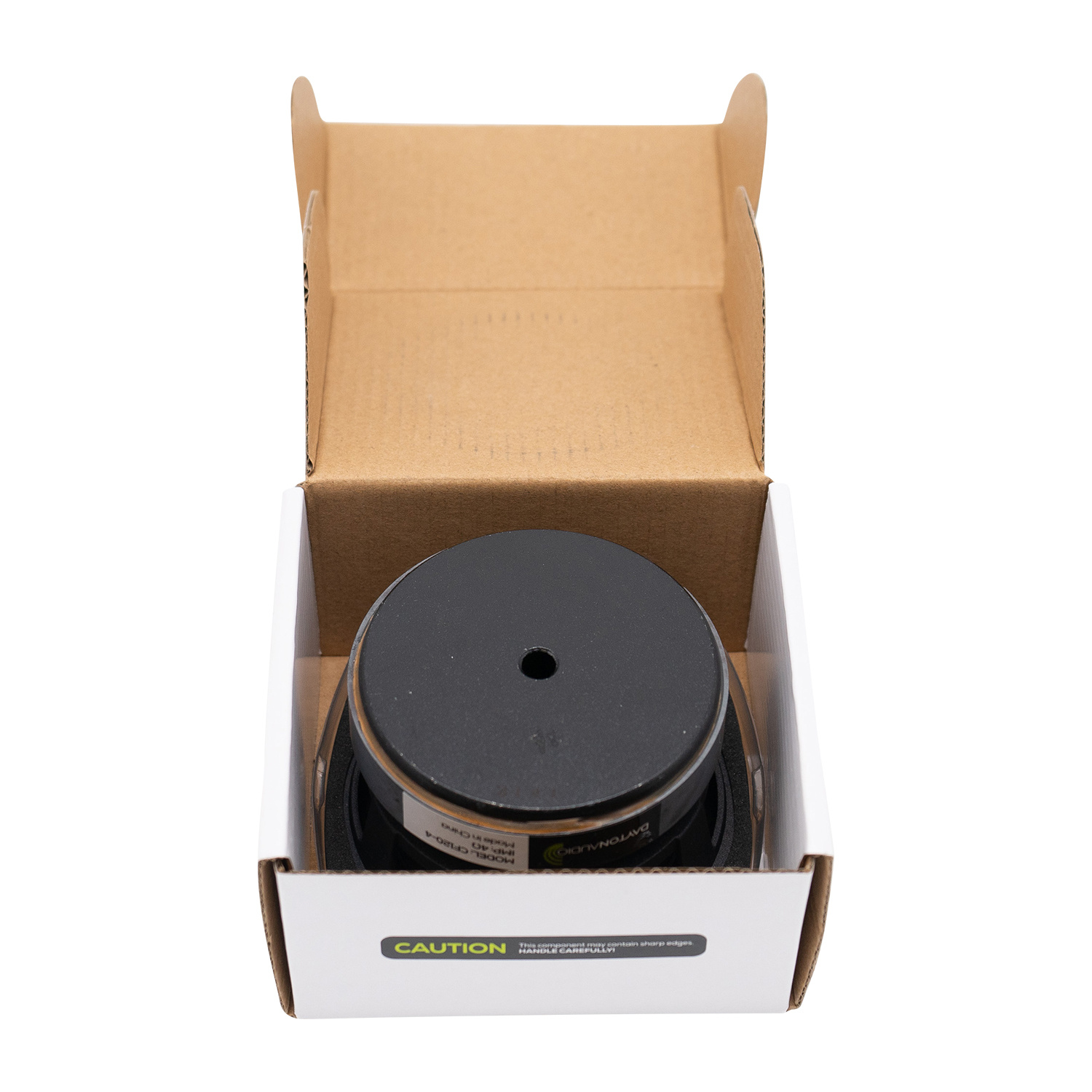

Dayton Audio CF120-4 Bass-midwoofer

€49,95

10+ Op voorraad

Toevoegen aan winkelwagen

Dayton Audio CF120-4 Bass-midwoofer

2 reviews

Merk: Dayton Audio

Toon alle Bass-mid woofer

4.5" | 4 Ω

€ 49,⁹⁵ 10+ Op voorraad

Gratis verzending vanaf € 99
Nu besteld, morgen verstuurd
Vijf jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Productomschrijving Dayton Audio CF120-4 Bass-midwoofer

Dayton Audio's CF120-4 4-1/2" midwoofer utilizes a high-tech carbon fiber cone to create its own perfect combination of visual aesthetics and uncompromising audio performance.

Highlights

Pincushion cast aluminum frame

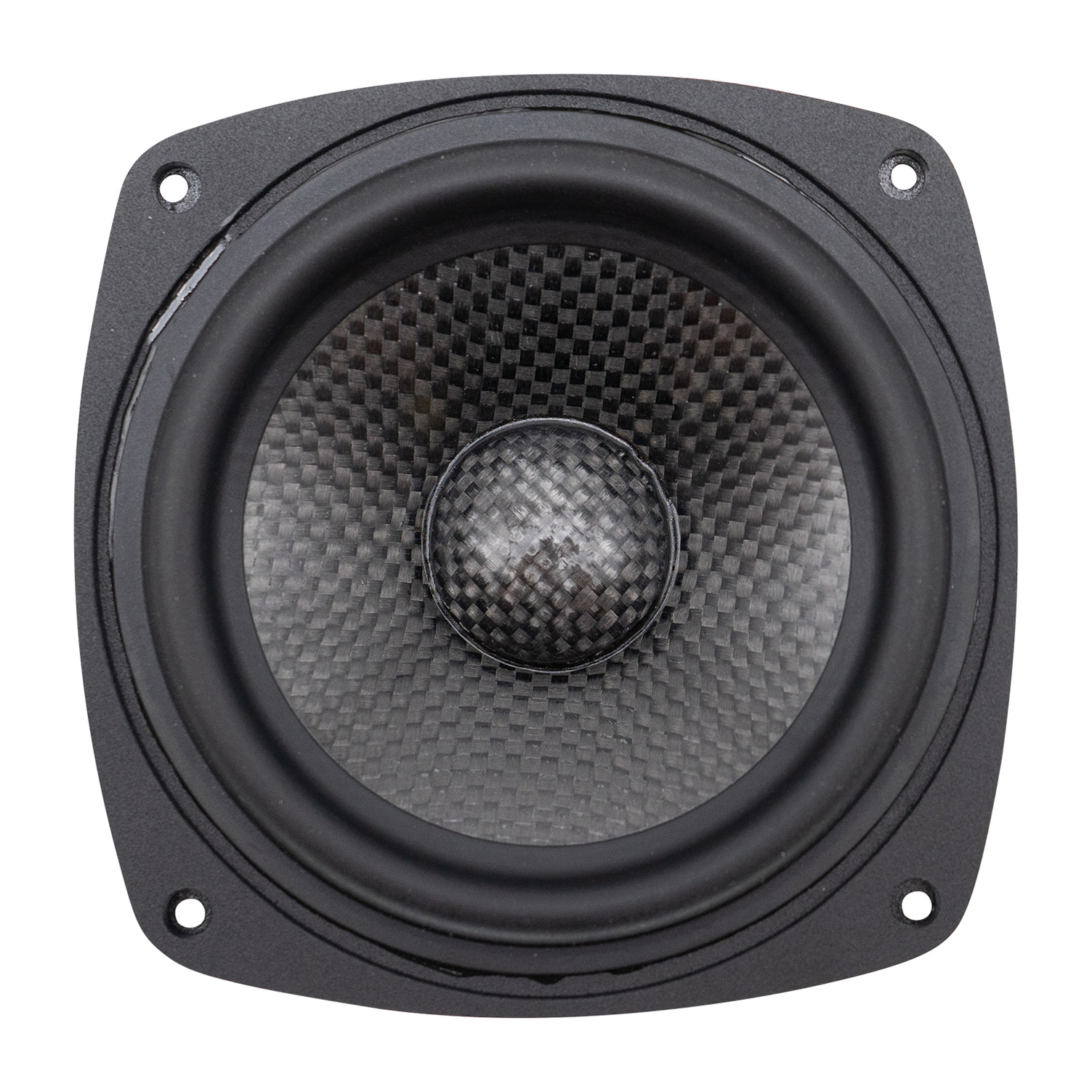

Ultra-light and stiff woven carbon fiber cone
Copper cap and large magnet provide a low distortion motor structure
Durable and potent 1" diameter hi-temp 2-layer voice coil
Black anodized aluminum vented former increases heat dissipation and power handling
Flat extended frequency response to 15,000 Hz
Great for small satellite 2-way, MTM designs, or high-end car audio applications

Product details

Dayton Audio CF120-4 4-1/2" Woven Carbon Fiber Midwoofer 4 Ohms

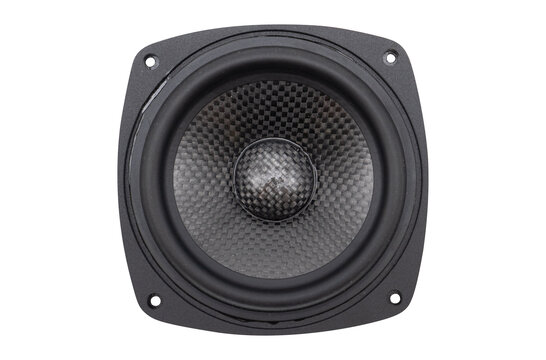

Take one longing glance at the Dayton Audio CF120-4 4-1/2" midwoofer's carbon fiber cone, cast frame, and large magnet, and you'll realize performance, not cost, was the primary development criteria. Delve further into the product details, and the flat extended frequency response, strong motor, and well-balanced parameters will confirm your thoughts. This beautiful driver looks awesome -- and performs as well as it looks!

Specificaties

Artikelnummer: CF120-4
EAN: 0848791001895
Woofer type: WooferMidwoofer
Nominale diameter: 4.50"
Belastbaarheid (RMS): 30 watts
Belastbaarheid (max): 60 watts
Impedantie (Z): 4 ohms
Gevoeligheid (SPL bij 1m / 2.83V): 89.1 dB
Frequentierespons: 50 - 15,000 Hz
Spreekspoeldiameter: 25.4 mm
Gelijkstroomweerstand (Re): 3.4 ohms
Spreekspoelinductie (Le): 0.45 mH @ 1 kHz
Resonantiefrequentie (Fs): 53.2 Hz
Mechanische Q (Qms): 1.89
Elektrische Q (Qes): 0.32
Totale Q (Qts): 0.28
Bewegende massa (Mms): 6.9g
Compliantie van de ophanging (Cms): 1.31 mm/N
Effectief oppervlak (Sd): 51.5 cm²
Maximaal verplaatst volume (Vd): 20.6 cm³
Krachtsfactor (BL): 4.94 Tm
Equivalentvolume (Vas): 4.87 liters
Maximale excursie (Xmax): 3.5 mm
Cone / Diaphragm Material: Carbon Fiber Composite
Surroundmateriaal: Rubber
Spreekspoel draadmateriaal: Copper
Spreekspoel vormermateriaal: Aluminum
Mand- /framemateriaal: Cast Aluminum
Magneetmateriaal: Ferrite
Totale buitendiameter: 5" ; Across flats 4.5"
Totale diepte: 2.25"
Montagegatdiameter: 3.75"
Bolt Circle Diameter: 4.5625"
# Bevestigingsgaten: 4
Gesloten volume: 0.02 ft.³
Gesloten F3: 153 Hz
Gepoort volume: 0.06 ft.³
Gepoort F3: 89 Hz

Toon meer

Reviews

2 reviews

Schrijf een review

5 van 5

It has clear sound and a surprisingly deep bass for such a small speaker. The carbon fiber looks beautiful in my red cabinet. I’m very pleased with the quality.

Door Ricardo M. on 10 December 2020

5 van 5

Firstly, i want to thank Tom from SoundImports for his fantastic advice and turnaround service during the Christmas season, which ensured i got these midranges ASAP. I have some original Def Tech Mythos II , which i have owned since 2002 and use as a front stage accross my HT system. One of the midranges blew and i was not able to source an original replacement. Having said that and mindful that the CF 120's are 4 ohm, and not exactly 100% matched in specs, I still decided to pull the trigger and buy 6 to replace all the old drivers with new ones. Now, I drive the Mythos with Denon POA4400 mono blocks... so they are not short of power but I have to admit I always felt they were a little 'hang back' in their presentation, especially when i compare to my Infinity Kappa's in the midrange (which are also rather hungry). Anyway, i started the replacment on the blown unit and simply hooked up the drivers in serial as the internal factory arrangement is parallel. I tested that speaker and immediately could tell a difference in comparison to the other channel with original drivers - and this, without running in. For me, it was clear the soundstage was wider, clearer and more robust. Simple as that. I proceeded to replace the other 4 midranges for the LF and Centre and could not be happier. Not everything went witout a hitch. If anyone wants these for Mythos, they are a facia match but the magnet is slightly larger in circumference to the original which makes it 'sit' about 1-2mm higher into the aluminium back enclosure. This means that the screws attaching the fascia of the speaker to the back enclosure in the middle section are hard to get back in and ever so slighlty not a straight fascia when all screws are in.... this should be sorted by getting slightly longer screws in the same size and potentially putting a gasget around the entire fascia mount to raise it by the required 1-1/2mm. However, in the end this is not a deal breaker. So all i can say is that i am very happy with these little guys given the small amount of choice at this size and, that arranging them in series for 8ohm has actually in my case, improved the Mythos II sonically. I was skeptical before going ahead but have no regrets. Highly recommended.

Toon meer

Door Melb2Kiel on 4 Januari 2018
