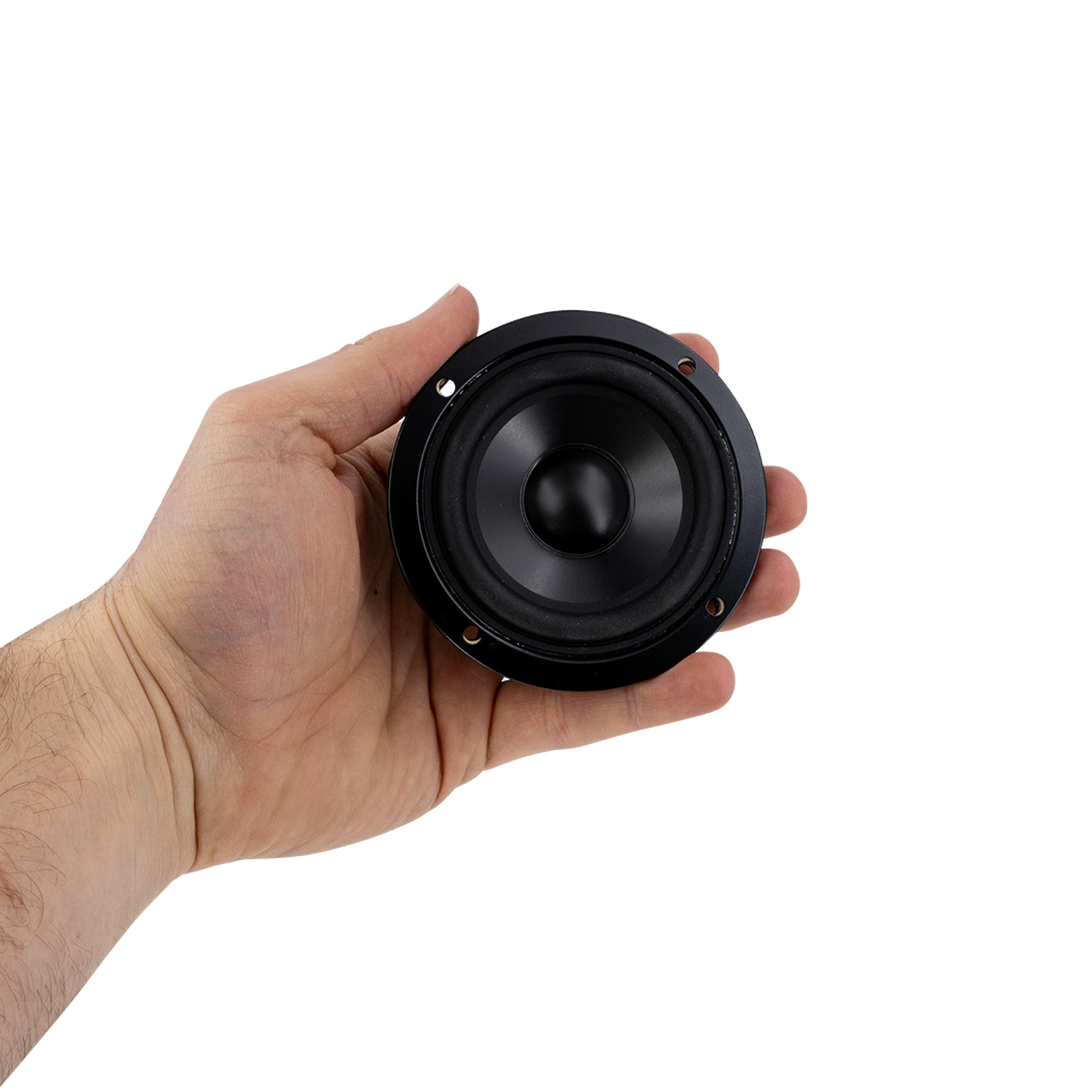

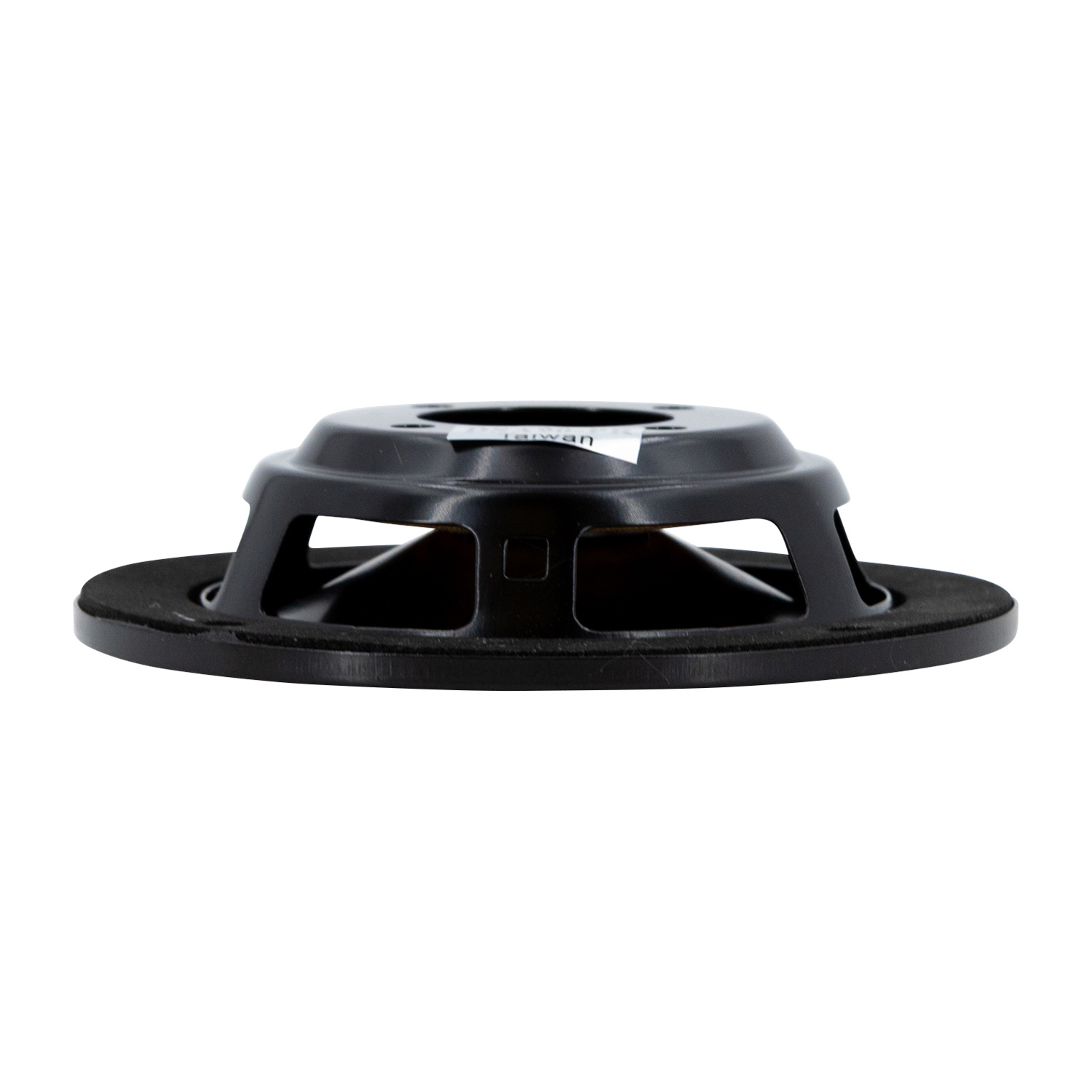

        Designer DSA90-PR Passive Radiator

        Dayton Audio Designer DSA90-PR Passive Radiator

        €20,95

        7 Op voorraad

        Toevoegen aan winkelwagen

        Dayton Audio Designer DSA90-PR Passive Radiator

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Dayton Audio
        Toon alle Passive radiator
        passive | 3"
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        € 17,31€ 20,95 7 Op voorraad
        • -5% Bestel 4 voor slechts € 19,90 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator
        Designer DSA90-PR Passive Radiator

        Productomschrijving Dayton Audio Designer DSA90-PR Passive Radiator

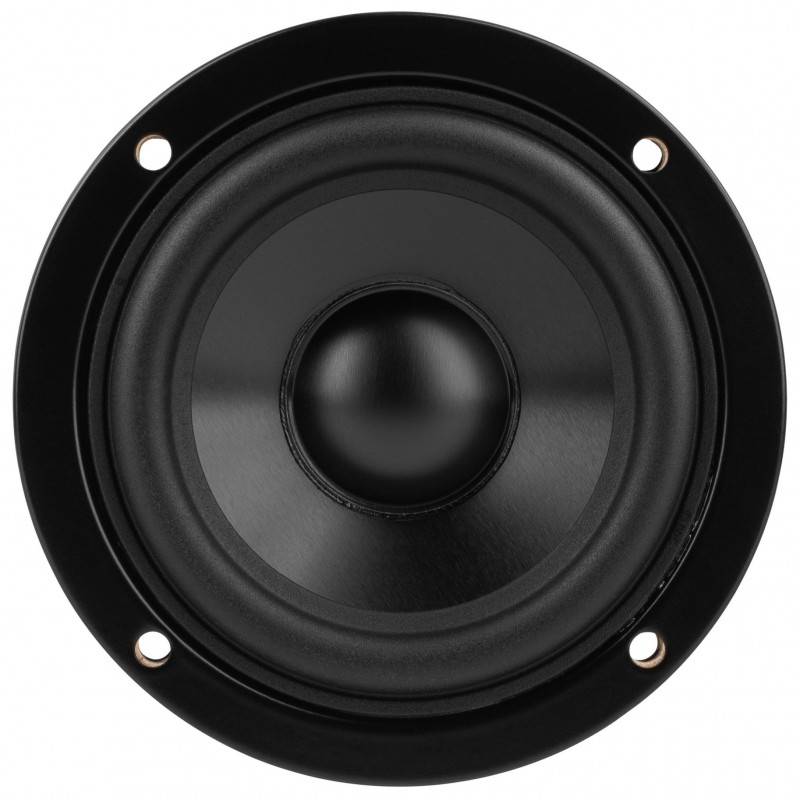

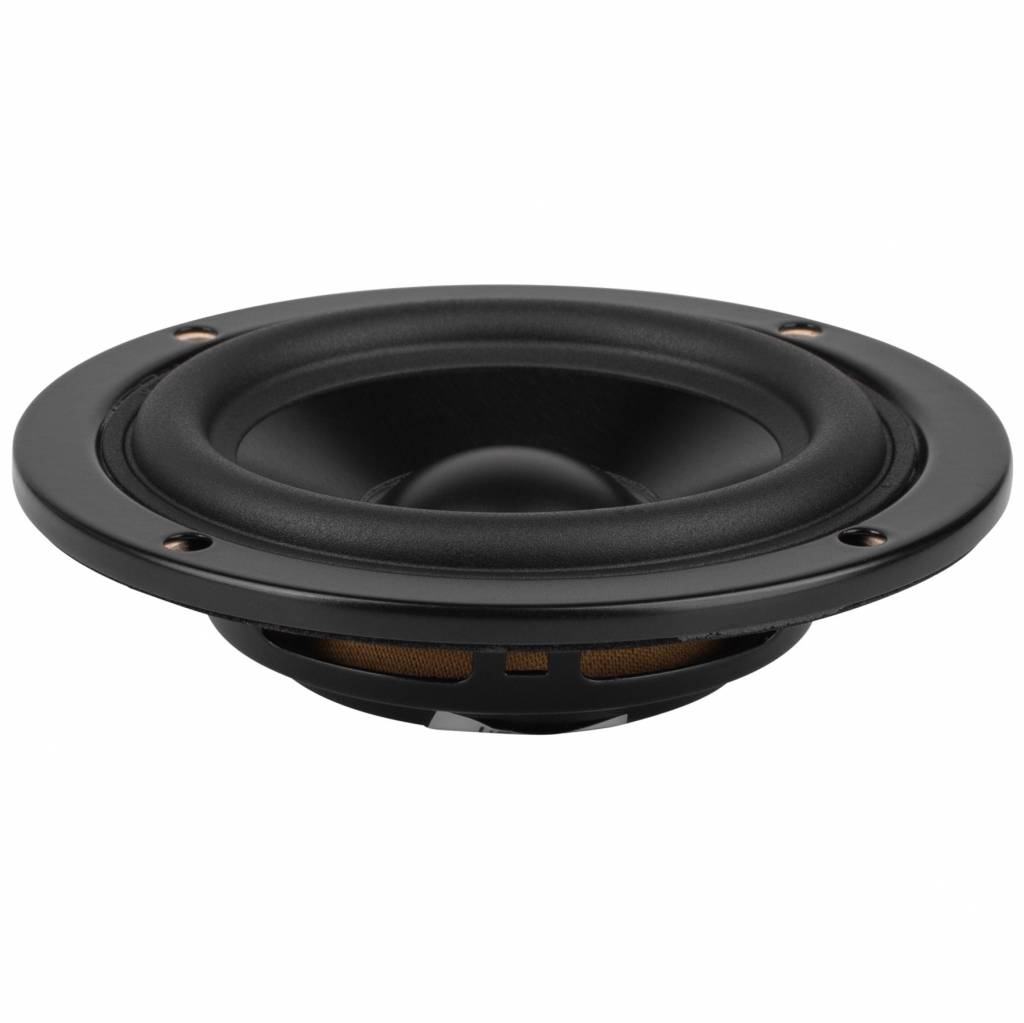

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



        Highlights

        • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
        • Allows tuning small enclosures lower than using conventional ports
        • Rear mounted screw allows easy mass adjustment for custom tuning
        • Cosmetic frame edge looks great even when surface mounted



        Product details

        Dayton Audio DSA90-PR 3" Designer Series Aluminum Cone Passive Radiator

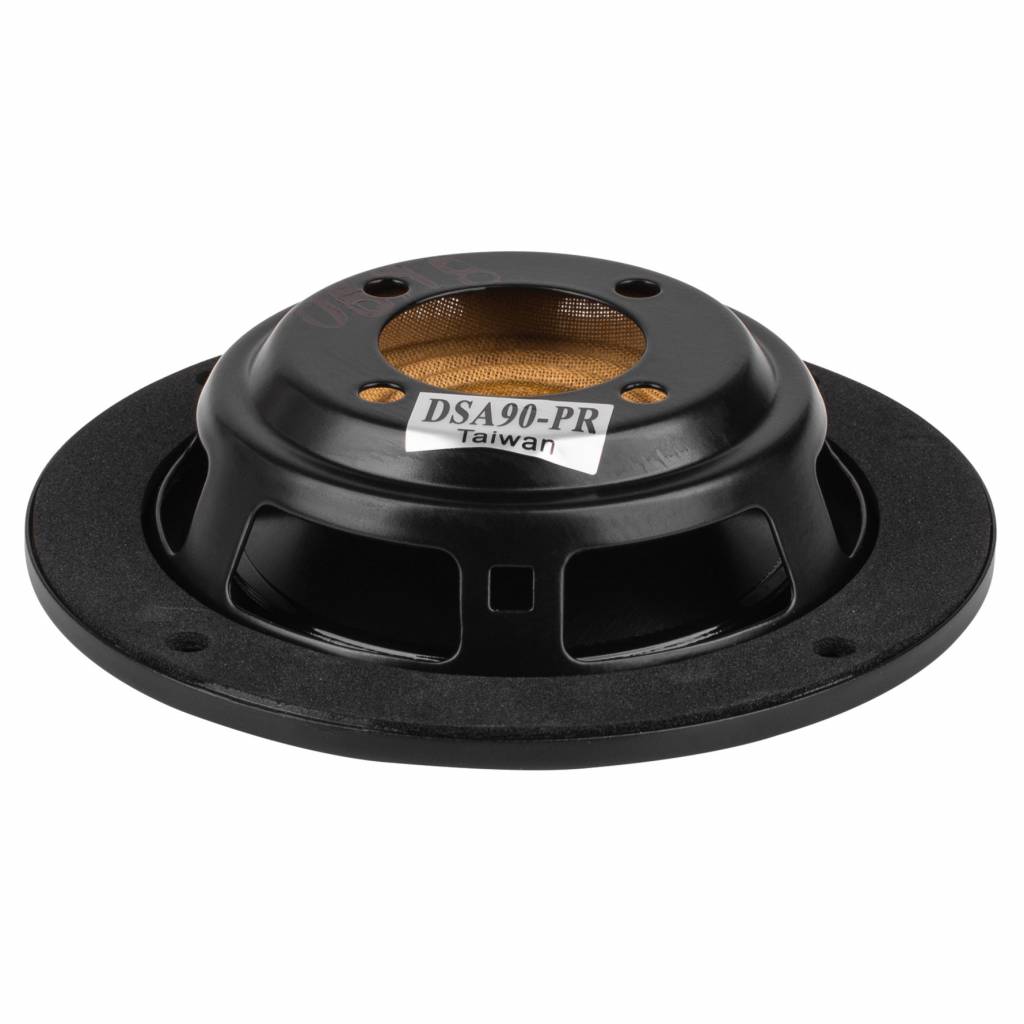

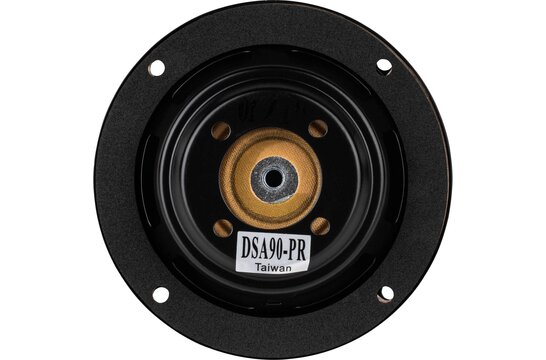

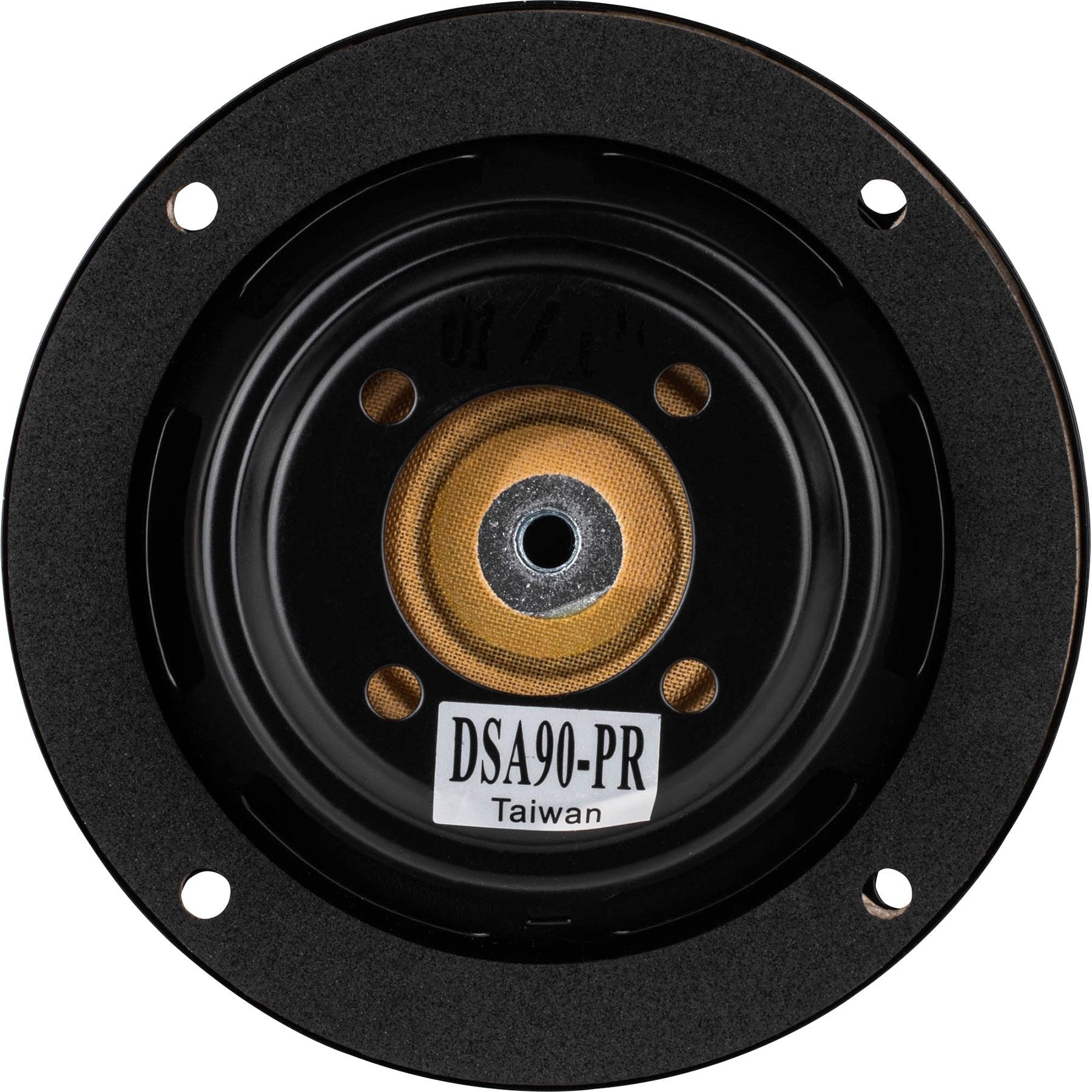

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems.



        Specifications: • Fs: 43.7 Hz • Vas: 0.124 cu. ft. • Qms: 5.72 • Cms: 2.55 mm/N • Rms: 0.2 kg/s • Mms: 5 g • Sd: 31.2 sq. cm. • Xmax: 4 mm • Dimensions: Overall diameter: 3.63", Cutout diameter: 2.76", Depth: 0.86".



        Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
        To calculate Vd: Sd x Xmax = Vd

        Toon meer

        Specificaties

        Artikelnummer
        DSA90-PR
        EAN
        0848791005022
        Woofer series
        Dayton Audio Designer series
        Woofer type
        Passive Radiator
        Nominale diameter
        3’’
        Resonantiefrequentie (Fs)
        43.7 Hz
        Mechanische Q (Qms)
        5.72
        Bewegende massa (Mms)
        5g
        Compliantie van de ophanging (Cms)
        2.55 mm/N
        Effectief oppervlak (Sd)
        31.2 cm²
        Equivalentvolume (Vas)
        0.124 ft.³
        Maximale excursie (Xmax)
        4 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Steel
        Totale buitendiameter
        3.63"
        Totale diepte
        0.86"
        Montagegatdiameter
        2.76"
        Bolt Circle Diameter
        3.27"
        # Bevestigingsgaten
        4

        Toon meer
