        ND90-PR Passive Radiator

        Dayton Audio ND90-PR Passive Radiator

        €14,95

        10 Op voorraad

        Toevoegen aan winkelwagen

        Dayton Audio ND90-PR Passive Radiator

        4 reviews
        5 van 5
        4 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Dayton Audio
        Toon alle Passive radiator
        passive | 3.5"
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        € 12,36€ 14,95 10 Op voorraad
        • -5% Bestel 4 voor slechts € 14,20 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator
        ND90-PR Passive Radiator

        Productomschrijving Dayton Audio ND90-PR Passive Radiator

        The Dayton Audio ND90-PR 3-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.



        Highlights

        • Rigid black anodized aluminum alloy cone
        • High excursion capability: 18 mm peak to peak
        • Same "family look" as ND Series woofers
        • Adjustable mass for a vast range of tuning frequencies



        Product details

        Dayton Audio ND90-PR 3-1/2" Aluminum Cone Passive Radiator



        Tune small enclosures with Dayton Audio's ND90-PR 3-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND90-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND90-PR introduces a new range of possibilities.



        The ND90-PR 3-1/2" passive radiator includes:

        (1) Passive radiator

        (2) 7.3 gram disk weights

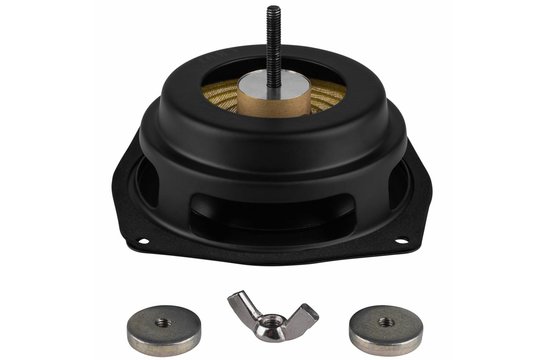

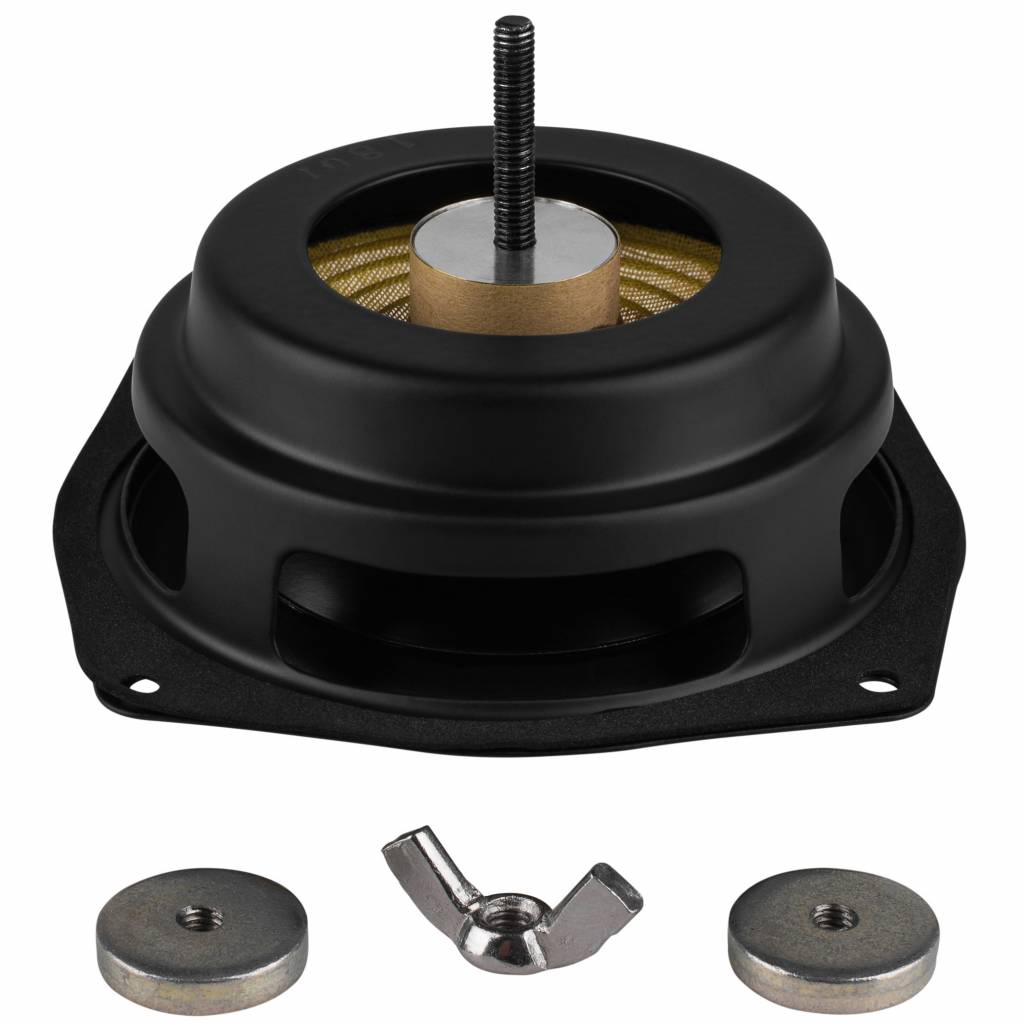

        (1) Wing nut



        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

        Toon meer

        Specificaties

        Artikelnummer
        ND90-PR
        EAN
        0848791004834
        Woofer series
        Dayton Audio ND series
        Woofer type
        Passive Radiator
        Nominale diameter
        3.50"
        Resonantiefrequentie (Fs)
        53.8 Hz
        Mechanische Q (Qms)
        6.15
        Bewegende massa (Mms)
        8.1g
        Compliantie van de ophanging (Cms)
        1.09 mm/N
        Effectief oppervlak (Sd)
        31.2 cm²
        Equivalentvolume (Vas)
        1.5 liters
        Maximale excursie (Xmax)
        9 mm
        Driver's Mechanical Losses (Rms)
        0.44 kg/s
        Cone / Diaphragm Material
        Aluminum Cone
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Steel
        Totale buitendiameter
        4.07"
        Totale diepte
        2.39"
        Montagegatdiameter
        3.35"
        # Bevestigingsgaten
        4

        Toon meer

        Reviews

        4 reviews
        Schrijf een review
        5 van 5
        Nicely built and adjustable
        Door Tim on 12 Mei 2024
        5 van 5
        Very good for small speakers. I tried several box volumes and passive radiators waight but i can’t able to reproduce deep bass below 80/90 hz. Good sound but needs a sub reinforcement for my tastes.
        Door Pietro Antonio on 23 Oktober 2023
