        Designer DS135-8 Bass-midwoofer

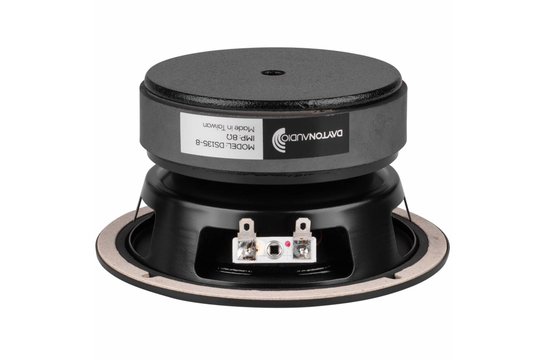

        Dayton Audio Designer DS135-8 Bass-midwoofer

        €41,95

        8 Op voorraad

        Toevoegen aan winkelwagen

        Dayton Audio Designer DS135-8 Bass-midwoofer

        6 reviews
        5 van 5
        6 reviews
        5 sterren
        83%
        4 sterren
        17%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Dayton Audio
        Toon alle Bass-mid woofer
        5" | 8 Ω
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        € 41,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 39,85 per stuk
        +-
        Toevoegen aan winkelwagen
        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer
        Designer DS135-8 Bass-midwoofer

        Productomschrijving Dayton Audio Designer DS135-8 Bass-midwoofer

        The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



        Highlights

        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Coated paper cone, half roll rubber surround for durability and accurate reproduction
        • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
        • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
        • Vented pole piece for minimized power compression and maximized reliability
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



        Product details

        Dayton Audio DS135-8 5" Designer Series Woofer Speaker



        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



        • Suggested enclosures:

        Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz.



        Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz.



        Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



        Specificaties

        Artikelnummer
        DS135-8
        EAN
        0844632095399
        Woofer series
        Dayton Audio Designer series
        Woofer type
        Midwoofer
        Nominale diameter
        3.50"
        Belastbaarheid (RMS)
        50 watts
        Belastbaarheid (max)
        100 watts

        Toon meer

        Reviews

        6 reviews
        Schrijf een review
        5 van 5
        Snelle levering en goede kwaliteit
        Door Ivo on 17 Augustus 2023
        4 van 5
        Top vielen dank
        Door Alwin S. on 31 Oktober 2020
