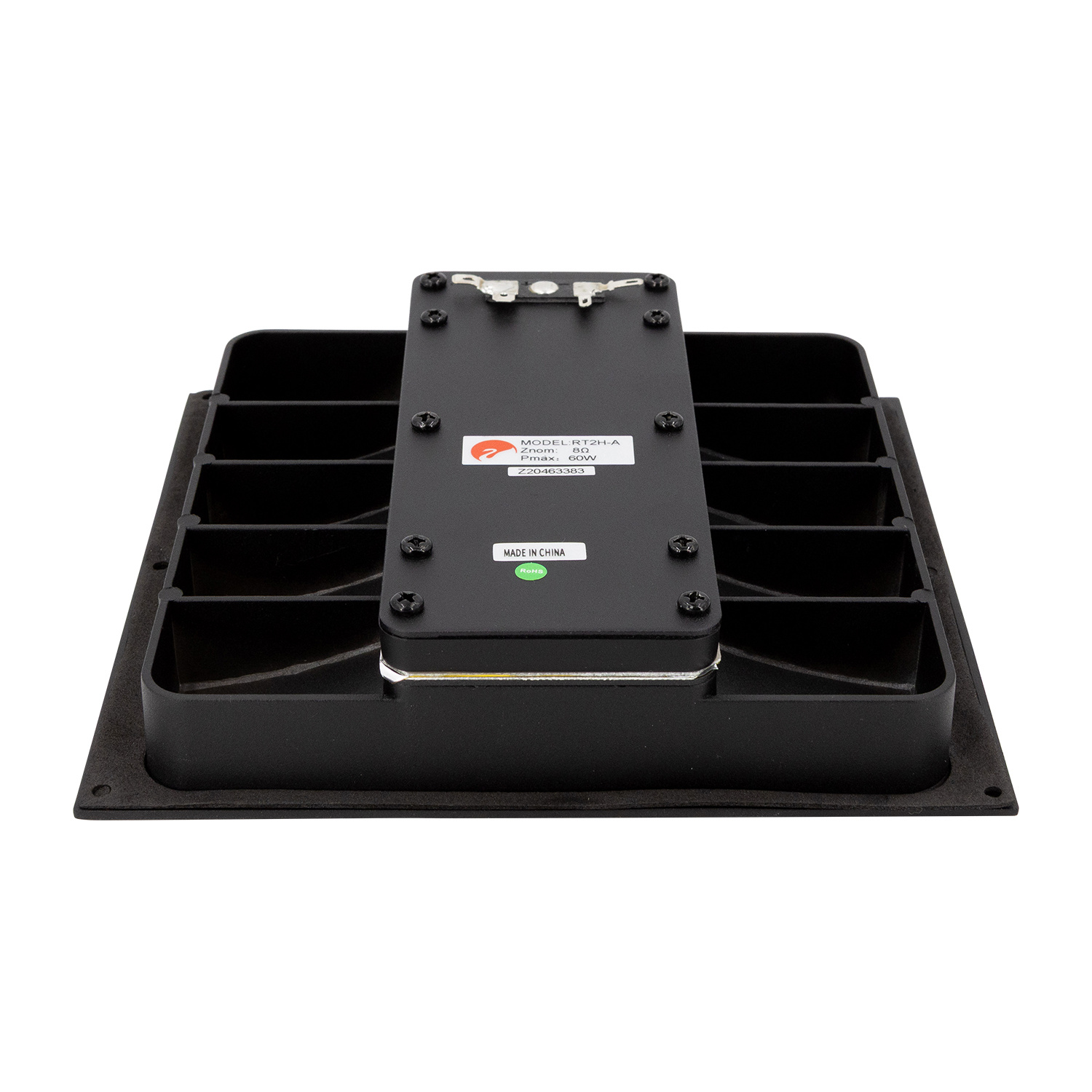

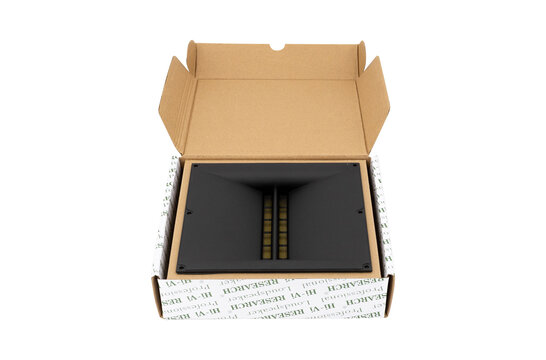

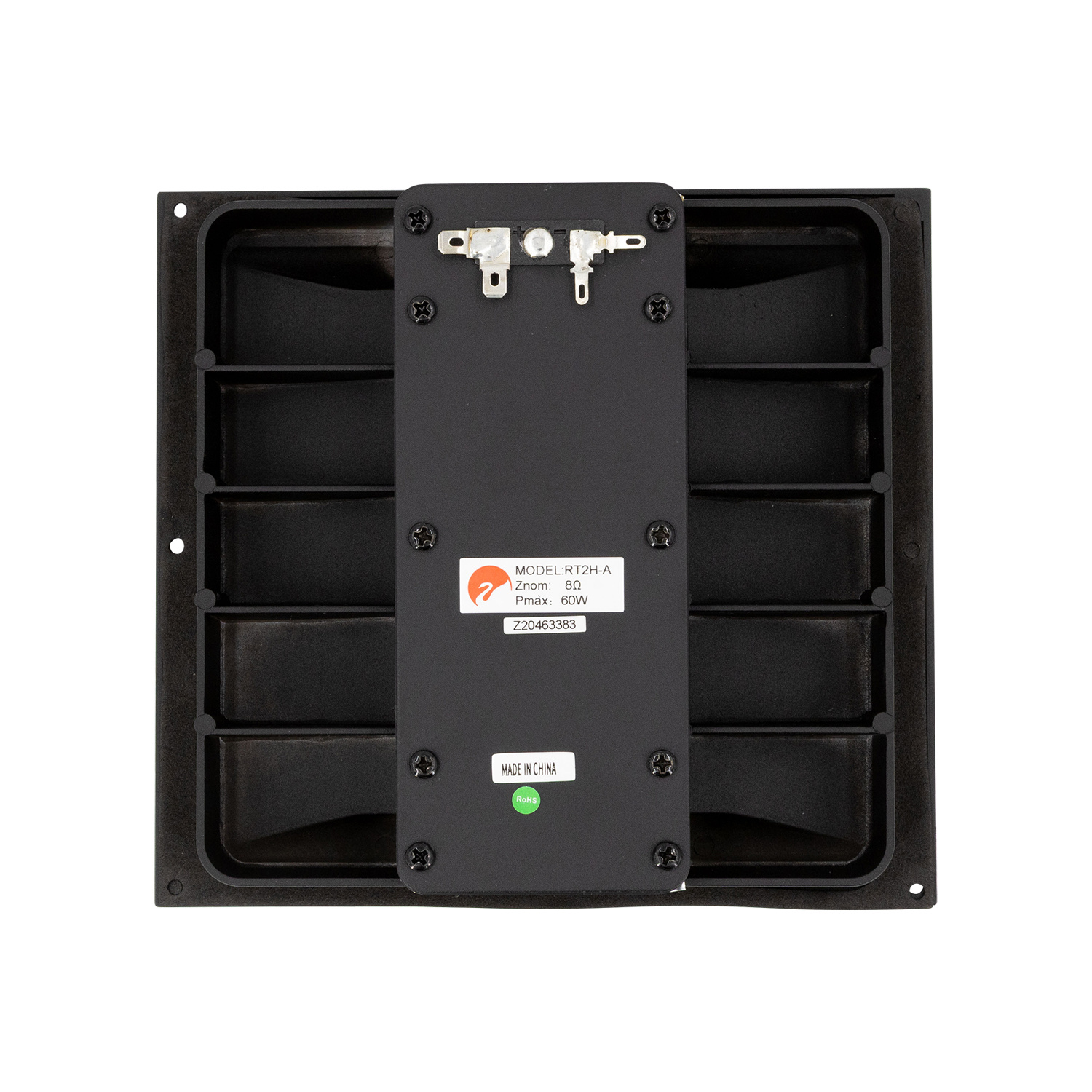

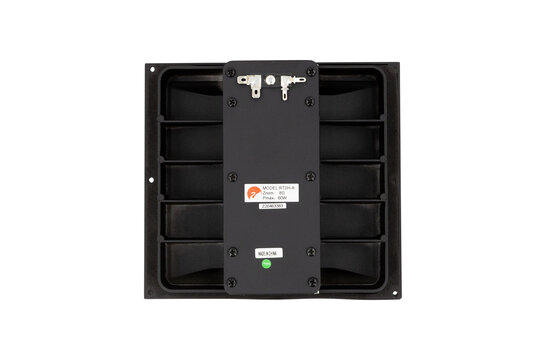

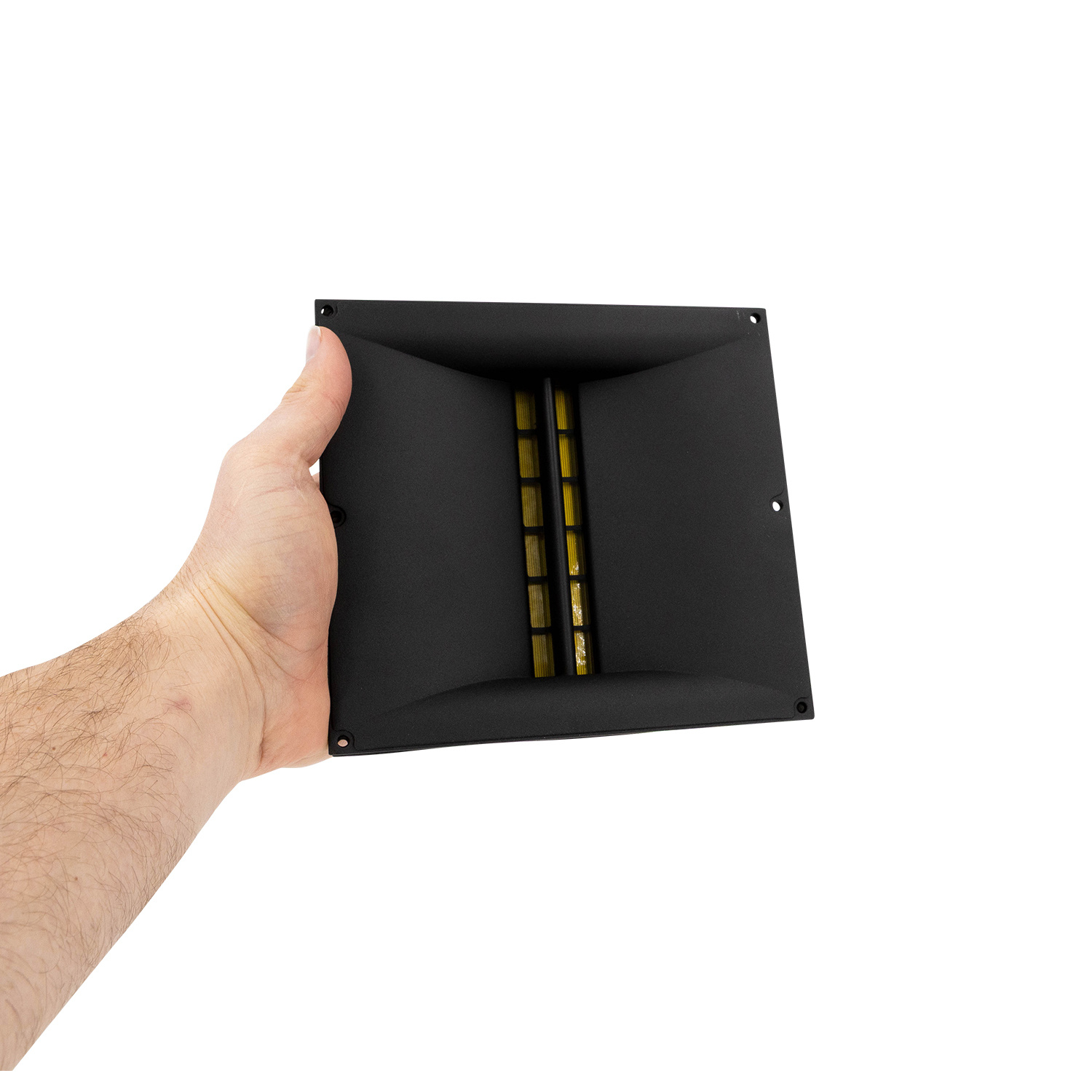

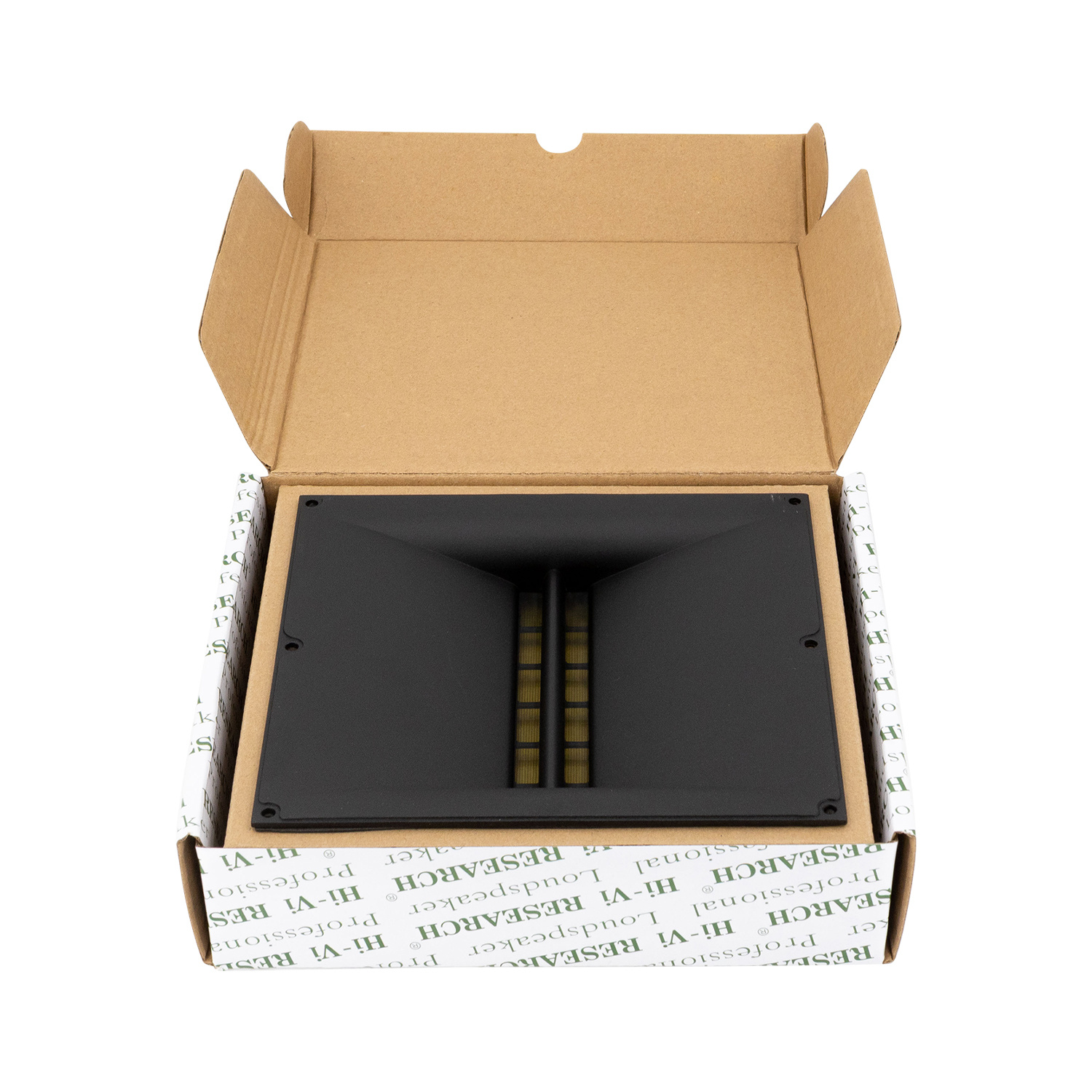

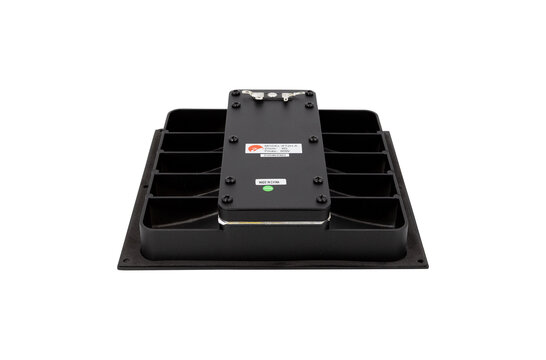

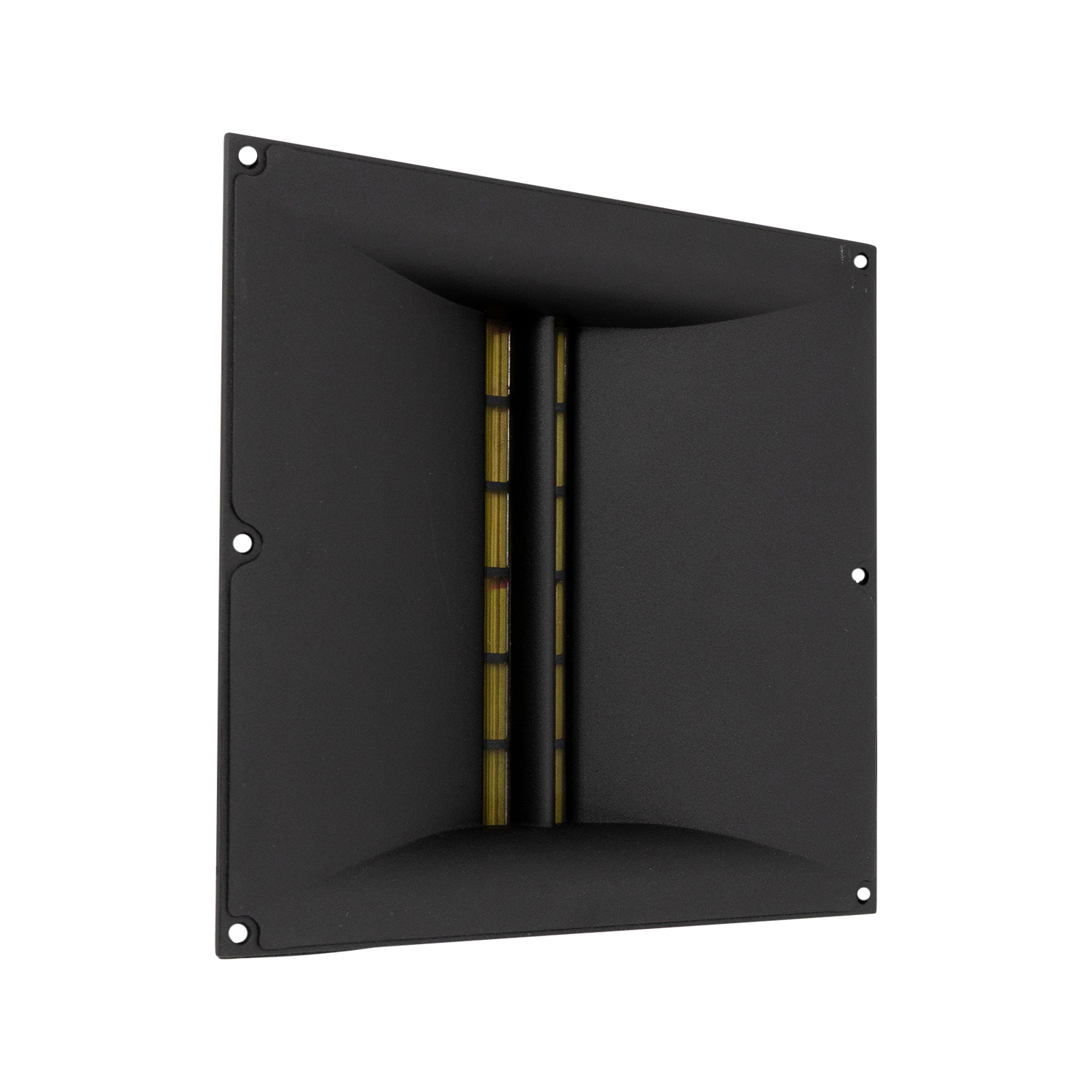

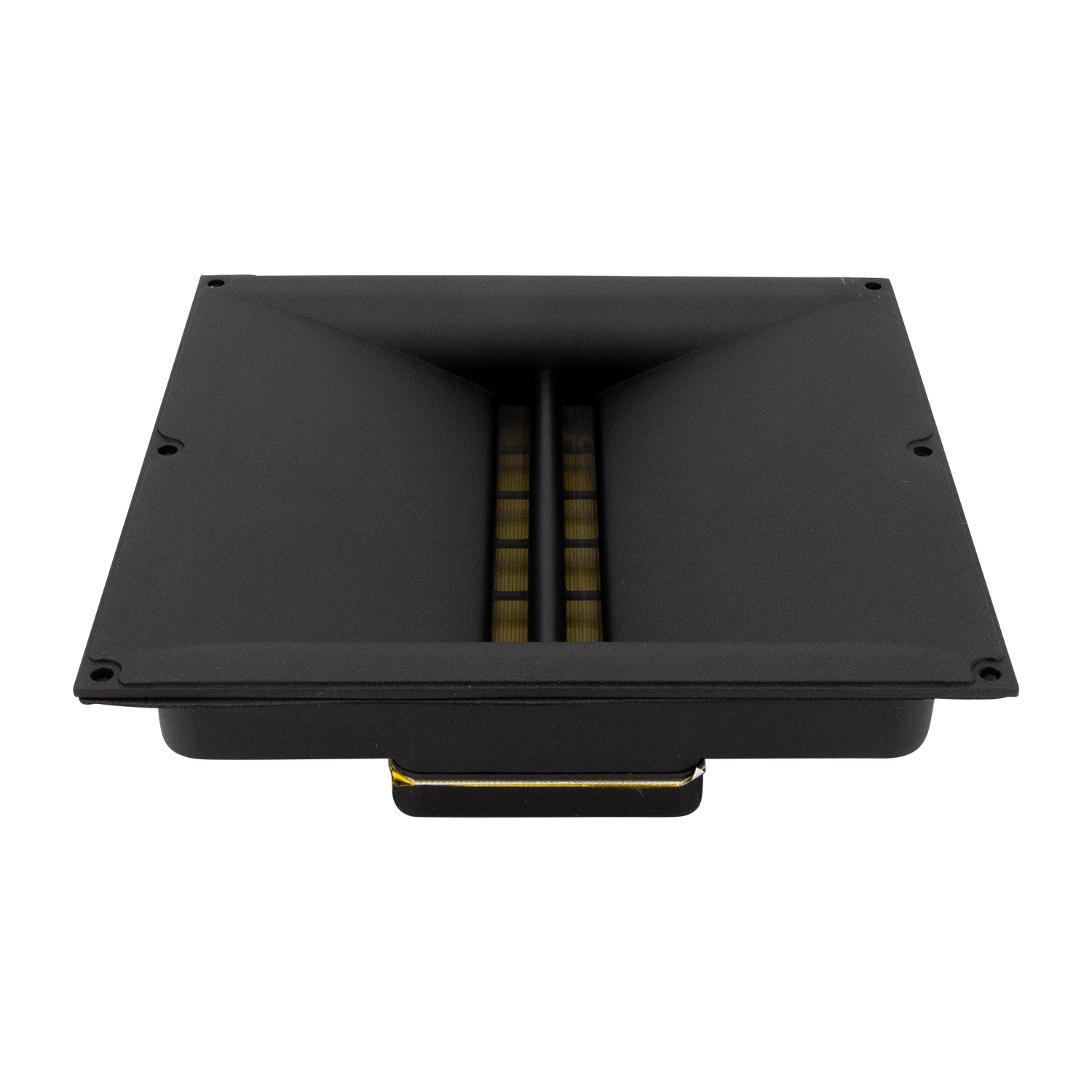

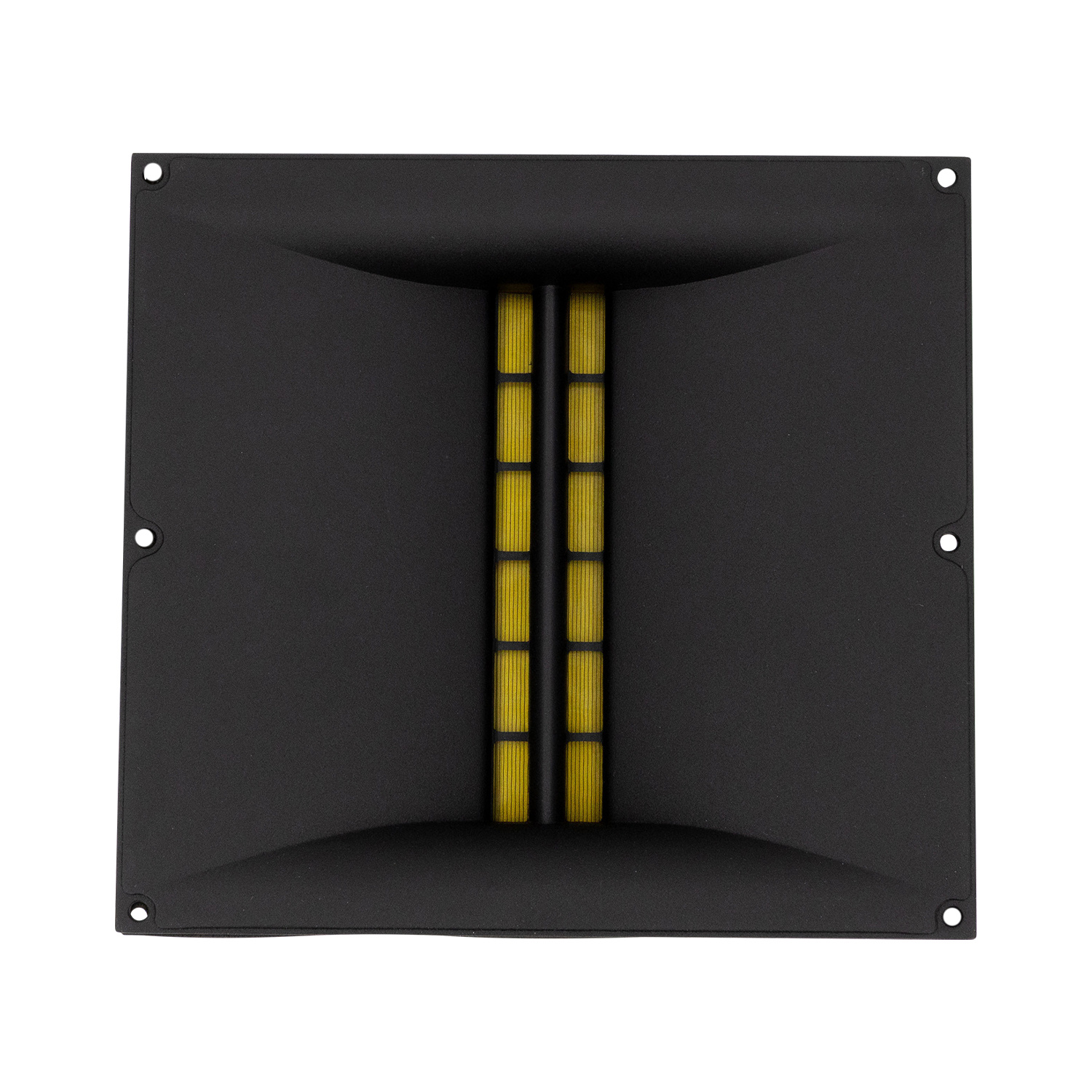

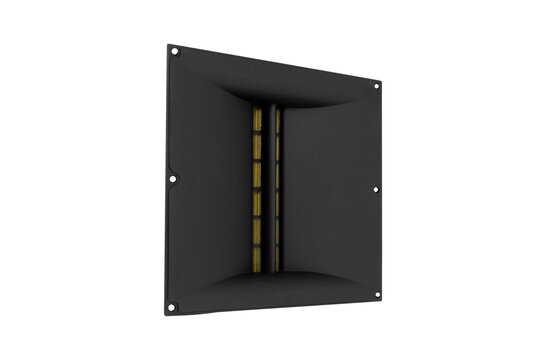

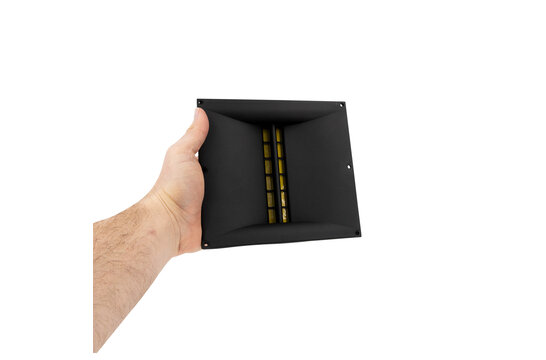

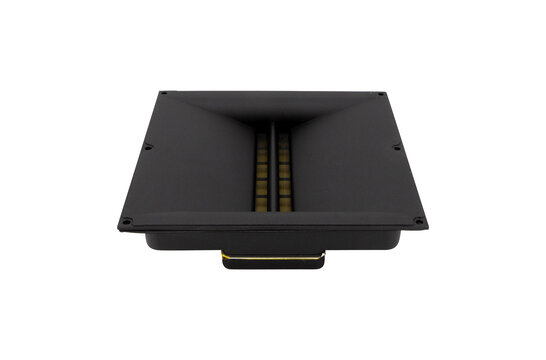

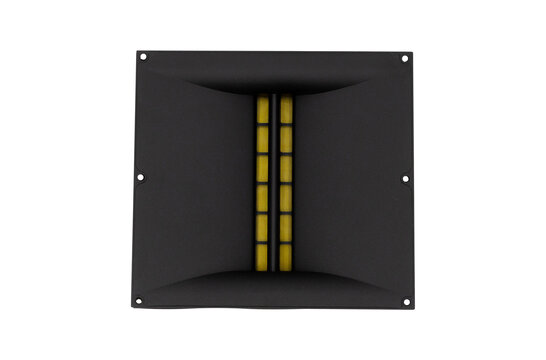

        RT2H-A Planar Isodynamic Tweeter

        HiVi RT2H-A Planar Isodynamic Tweeter

        €89,95

        10+ Op voorraad

        Toevoegen aan winkelwagen

        HiVi RT2H-A Planar Isodynamic Tweeter

        3 reviews
        5 van 5
        3 reviews
        5 sterren
        67%
        4 sterren
        33%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: HiVi
        Toon alle Horn/ waveguide tweeter
        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter
        € 74,34€ 89,95 10+ Op voorraad
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter
        RT2H-A Planar Isodynamic Tweeter

        Productomschrijving HiVi RT2H-A Isodynamic Planar Horn Tweeter

        The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area.



        Highlights

        • Nearly weightless Kapton diaphragm for incredible transient response
        • Semi-horn loaded faceplate for improved efficiency
        • Large diaphragm can accommodate crossovers as low as 3,000 Hz



        Product details

        HiVi RT2H-A Planar Isodynamic Tweeter



        Why Isodynamic? Contrary to a conventional dynamic driver, these transducers have a driving force distributed evenly over the whole area of their vibrating elements. The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area. The membrane assembly is placed precisely between two rows of Neodymium and Barium Ferrite bar magnets. A larger membrane area provides higher power handling and substantially extended low-end cut-off frequency. The aluminum mounting flange, with flared waveguide, controls the frequency response and directivity of the tweeter. These tweeters are magnetically shielded and are extremely flat with a depth only 27mm including the mounting flange.

        Toon meer

        Specificaties

        Artikelnummer
        RT2H-A
        EAN
        0844632021787
        Cone / Dome Diameter
        1.06'' W x 4.61'' H
        Belastbaarheid (RMS)
        30 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        94 dB
        Frequentierespons
        1,700 to 25,000 Hz
        Totale buitendiameter
        7.13" x 7.13"
        Montagegatdiameter
        6.13" x 6.13"
        Diepte
        1.63"
        Aanbevolen kantelfrequentie
        3,000 Hz with 2nd order

        Toon meer

        Reviews

        3 reviews
        Schrijf een review
        4 van 5
        War sehr gut verpackt und schnell zugestellt.
        Door Rodger on 23 Juli 2023
        5 van 5
        Great product and highly recommended SoundImports
        Door Sam G. on 8 Augustus 2020
