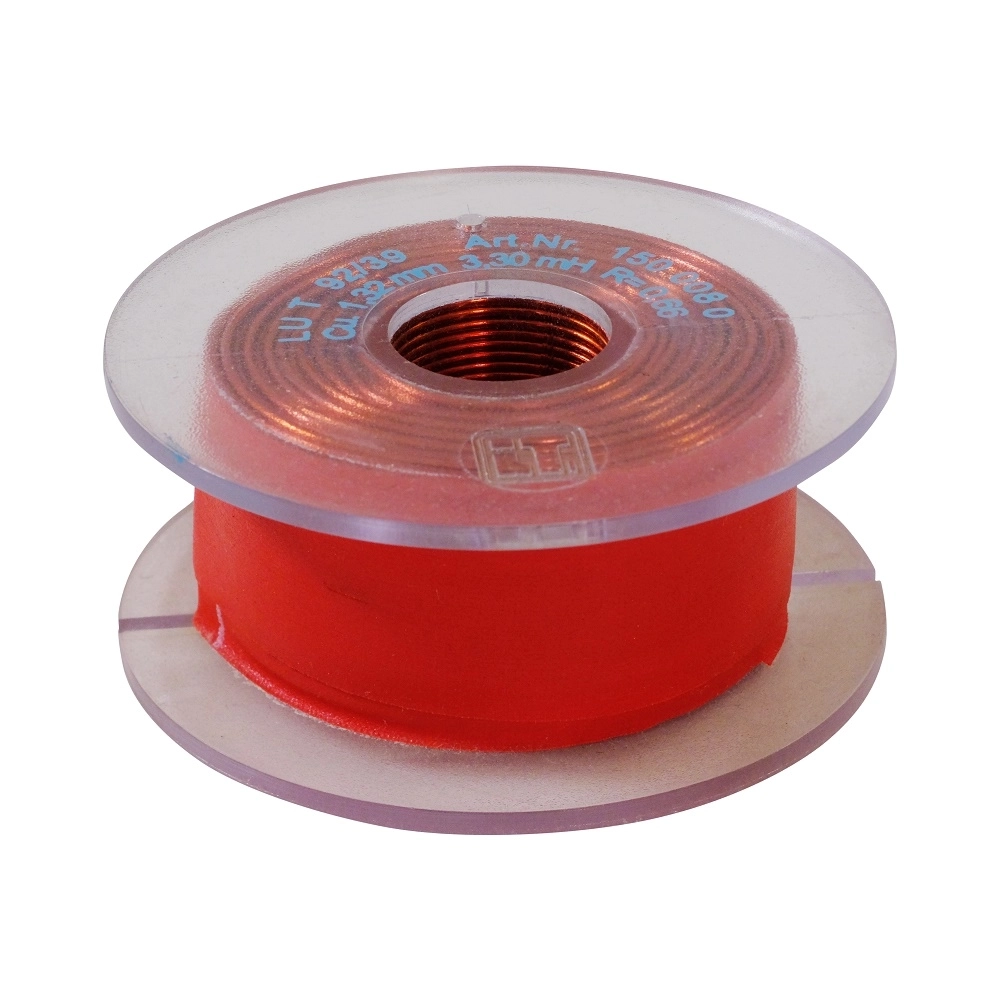

A 3.3 mH, 0.66 Ω, 16 AWG choke coil from Intertechnik with high copper purity and thermal insulation.
Highlights
- 3.3 mH inductance for efficient energy storage
- 0.66 Ω resistance for minimal energy loss
- 16 AWG thickness for enhanced durability
- High >99.99% copper purity for excellent conductivity
Product details
I.T. Intertechnik AT92/330/132 | 3,3 mH | 0,66 Ω | 3% | 16 AWG | Choke Coil
This Intertechnik AT92/330/132 choke coil is a high-quality component for audio crossover systems. It boasts a 3.3 mH inductance, providing efficient energy storage and transfer for your sound system. The coil has a resistance of 0.66 Ω, ensuring minimal energy loss during operation. Its 16 AWG thickness enhances its durability and longevity. Notably, the coil is made with high-purity copper, greater than 99.99%, which ensures excellent electrical conductivity for superior sound quality. The component also features a thermal insulation, and can withstand temperatures ranging from -90 to 135 degrees Celsius. Its tolerance is -3%, measured at nominal 25 degrees Celsius and 1kHz, demonstrating its reliable performance in various conditions. The coil's wire connection length is 50mm and the tin plating length is 9mm.
I.T. Intertechnik artikelnummer: 1500080
