Name: Intertechnik AT92/390/132 | 3,9 mH | 0,72 Ω | 3% | 16 AWG | Choke Coil
Brand: Intertechnik
SKU: AT92/390/132
Price: 62.95 EUR
Availability: BackOrder

AT92/390/132 | 3,9 mH | 0,72 Ω | 3% | 16 AWG | Choke Coil

€ 52,02€ 62,95 Niet op voorraad

Backorder

Gratis verzending vanaf € 99
Snel weer op voorraad
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Intertechnik AT92/390/132 | 3,9 mH | 0,72 Ω | 3% | 16 AWG

High-quality 3.9mH Choke Coil with exceptional conductivity and thermal resistance

Highlights

Superior copper purity of >99.99%
Thermoplastic insulation for enhanced durability
Polycarbonate coil body capable of withstanding temperatures from -90 to 135 degrees Celsius
Excellent inductance tolerance of -3%

Product details

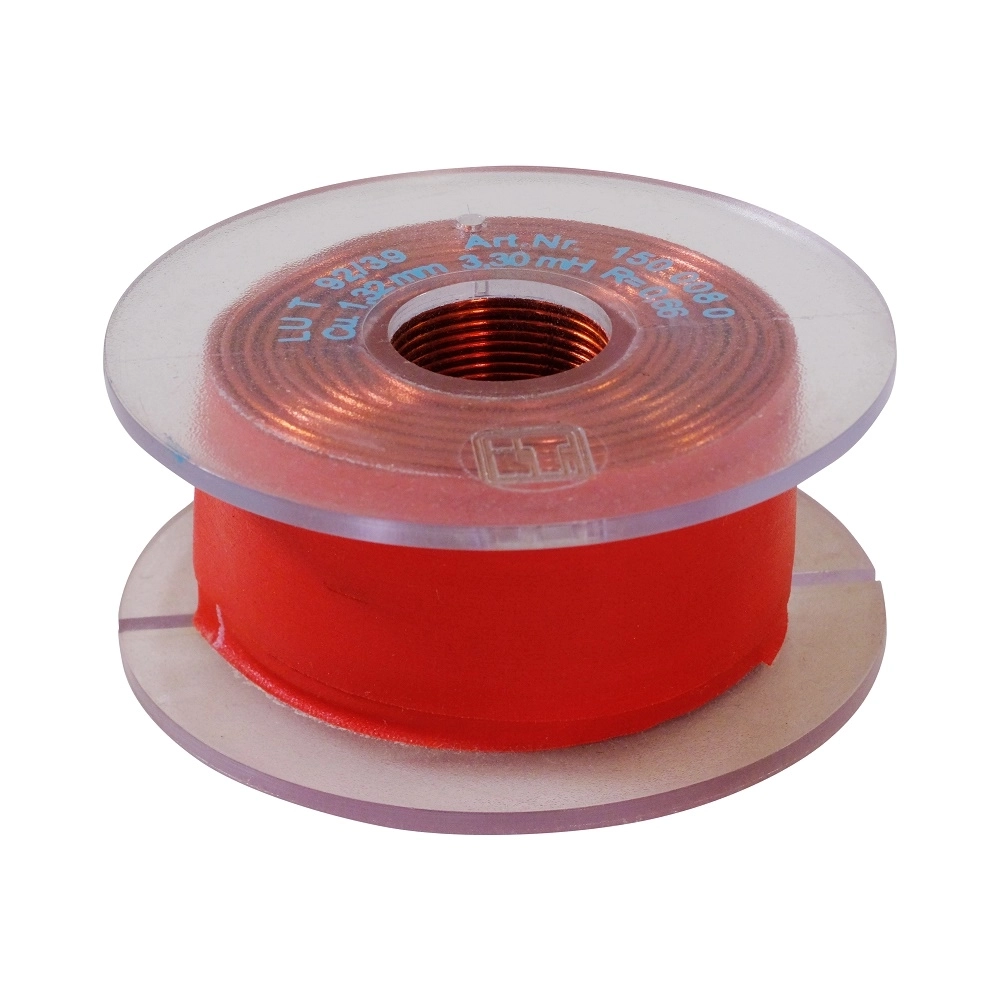

I.T. Intertechnik AT92/390/132 | 3,9 mH | 0,72 Ω | 3% | 16 AWG | Choke Coil

The I.T. Intertechnik AT92/390/132 is a top-of-the-line Choke Coil, ideal for use in crossover components and copper foil coils. It boasts an impressive inductance of 3.9mH and a resistance of 0.72Ω, offering maximum efficiency and performance. The coil features a copper purity of more than 99.99%, ensuring exceptional conductivity. With a robust polycarbonate coil body, it can withstand temperatures ranging from -90 to 135 degrees Celsius. The coil is also equipped with thermoplastic insulation for added durability. Its wire connection length is 50mm and it has a tin length of 9mm. The inductance tolerance is a remarkable -3%, measured at nominal 25 degrees Celsius and 1kHz, promising high precision and reliability. This product is a testament to Intertechnik's dedication to quality and performance.

I.T. Intertechnik artikelnummer: 1500081
