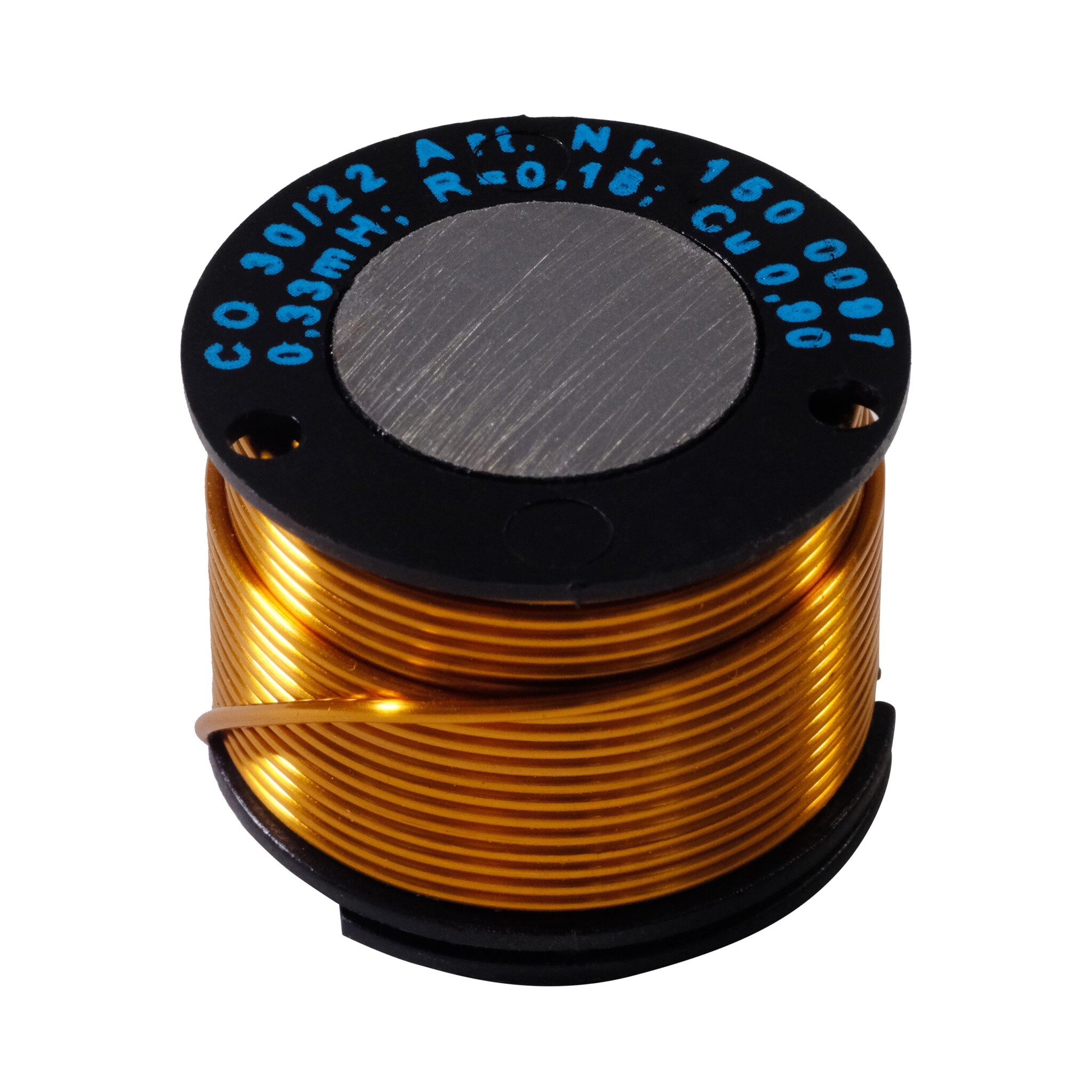

The I.T. Intertechnik CO30/018/090 offers superior performance as a choke coil for audio crossover networks.
Highlights
- Exceptional CU purity of > 99.99%
- Tolerance range of -3% for reliable performance
- Thermoplastic insulation for high temperature tolerance
- Wire connection length of 50 mm and tinning length of 9 mm
Product details
I.T. Intertechnik CO30/018/090 | 0,18 mH | 0,13 Ω | 5% | 19 AWG | Choke Coil
Designed specifically for crossover components and copper foil coils, the I.T. Intertechnik CO30/018/090 Choke Coil stands out with its exceptional copper purity of over 99.99%. The coil features an impressive inductance of 0.18 mH and resistance of 0.13 Ω with a tight tolerance of -3%. The 19 AWG coil is designed with thermoplastic insulation that can withstand temperatures ranging from -90 to 135 degrees Celsius, ensuring optimal performance under various conditions. The wire connection length is 50 mm and tinning length is 9 mm, designed for easy installation and stable connections. This coil embodies the Intertechnik commitment to high-quality audio components, delivering reliable and efficient performance in any audio crossover network.
I.T. Intertechnik artikelnummer: 1500093
