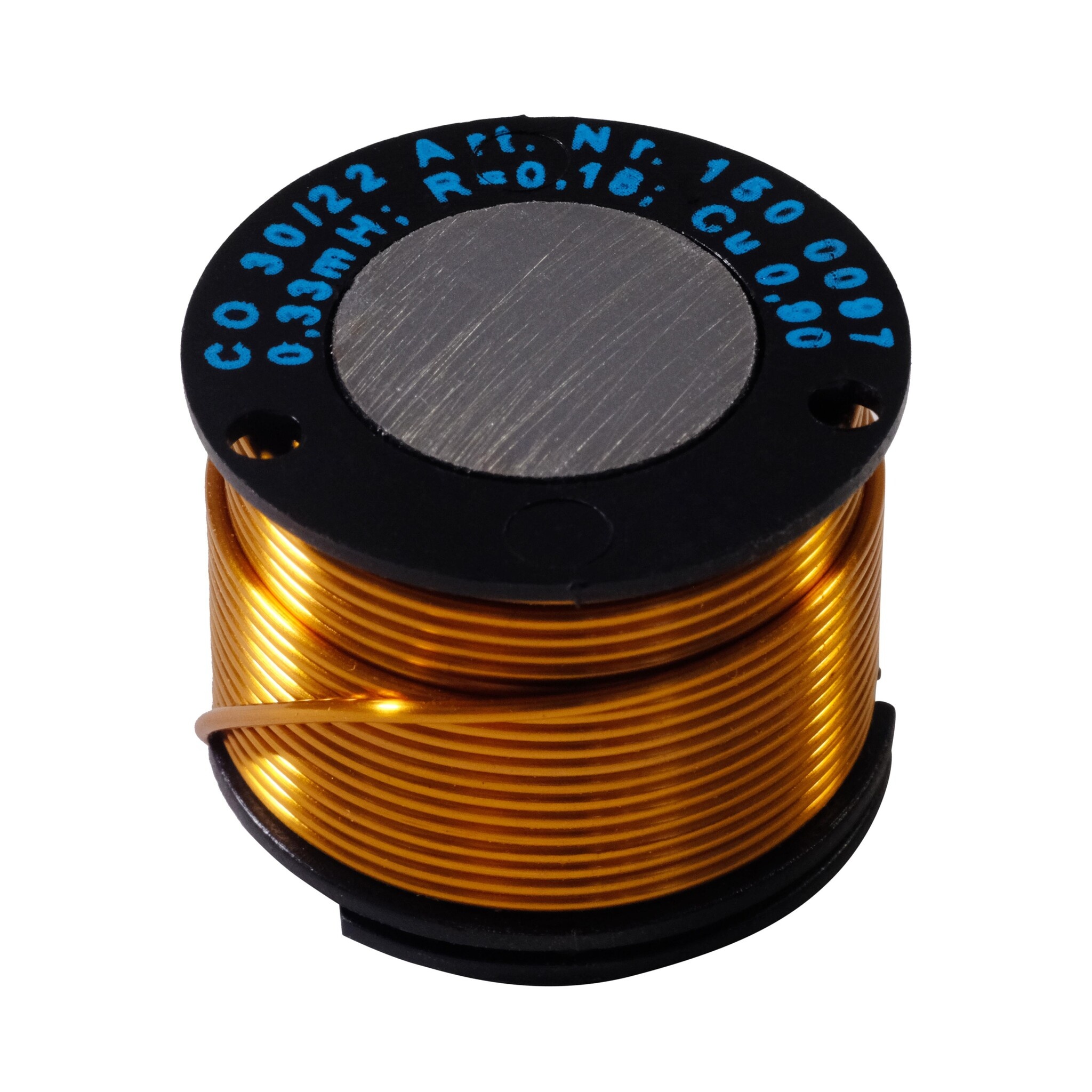

The I.T. Intertechnik CO30/030/090 is a premium-quality choke coil with a 0.3 mH inductance and 0.17 Ω resistance.
Highlights
- High CU purity: >99.99%
- Thermoplastic insulation
- 5% inductance tolerance
- Wire diameter: 19 AWG
Product details
I.T. Intertechnik CO30/030/090 | 0,3 mH | 0,17 Ω | 5% | 19 AWG | Choke Coil
The I.T. Intertechnik CO30/030/090 Choke Coil is a standout product in the category of Crossover Components Coils Copper Foil Coils. With a high CU purity of greater than 99.99%, this component guarantees excellent electrical conductivity. It features a 0.3 mH inductance and a resistance of 0.17 Ω, providing superior sound quality. The coil is crafted with a thermoplastic insulation that withstands temperatures from -90 to 135 degrees Celsius, ensuring durability and longevity. The wire connection length is 50 mm with a tinning length of 9 mm. The coil body is made from resilient polycarbonate. The inductance tolerance is 5%, measured at a nominal 25 degrees Celsius and 1kHz frequency. This choke coil is ideal for high-performance audio systems and other electronics applications.
I.T. Intertechnik artikelnummer: 1500096
