Productomschrijving Intertechnik CO30/047/090 | 0,47 mH | 0,23 Ω | 5% | 19 AWG

A high-quality, 0.47mH choke coil with a 0.23Ω resistance and 5% tolerance.

Highlights

0.47mH Inductance
0.23Ω Resistance
5% Tolerance
19 AWG Size

Product details

I.T. Intertechnik CO30/047/090 | 0,47 mH | 0,23 Ω | 5% | 19 AWG | Choke Coil

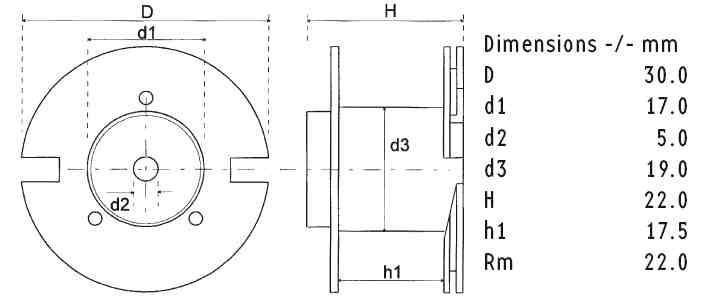

This I.T. Intertechnik CO30/047/090 Choke Coil is a superior choice for your crossover components requirements. With an inductance of 0.47mH and a resistance of 0.23Ω, it provides top-notch performance and reliability. The product boasts a 5% tolerance and 19 AWG size, ensuring precision and durability in various applications. It's made from high-quality copper with a purity greater than 99.99%. The coil also features a wire connection length of 50mm and a tinning length of 9mm. The coil body is made from polycarbonate, which can withstand temperatures ranging from -90 to 135 degrees Celsius. The inductance tolerance is -3%, measured at a nominal 25 degrees Celsius at 1kHz. Choose this product for its outstanding performance and superior quality.

I.T. Intertechnik artikelnummer: 1500099
