Name: Intertechnik DR56/3.9/132 | 3,9 mH | 0,25 Ω | 5% | 16 AWG | Ferrobar Coil
Brand: Intertechnik
SKU: DR56/3.9/132
Price: 44.45 EUR
Availability: BackOrder

DR56/3.9/132 | 3,9 mH | 0,25 Ω | 5% | 16 AWG | Ferrobar Coil

€ 36,74€ 44,45 Niet op voorraad

Backorder

Gratis verzending vanaf € 99
Snel weer op voorraad
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Intertechnik DR56/3.9/132 | 3,9 mH | 0,25 Ω | 5% | 16 AWG

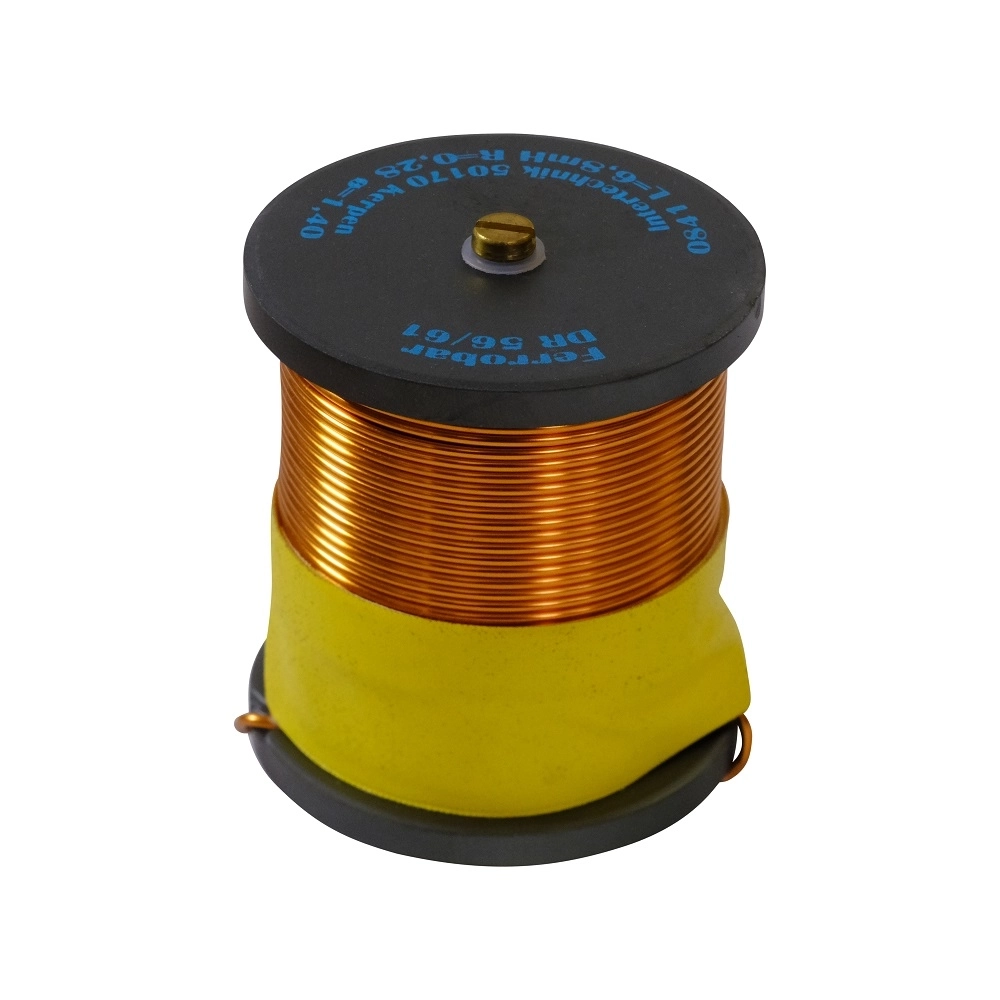

Intertechnik DR56/3.9/132, a high-quality Ferrobar coil with 3.9mH inductance and 0.25Ω resistance.

Highlights

High-quality Ferrobar coil with 3.9mH inductance
Low resistance of 0.25Ω
Convenient 16 AWG wire size
Capable of handling a tolerance level of ± 5%

Product details

I.T. Intertechnik DR56/3.9/132 | 3,9 mH | 0,25 Ω | 5% | 16 AWG | Ferrobar Coil

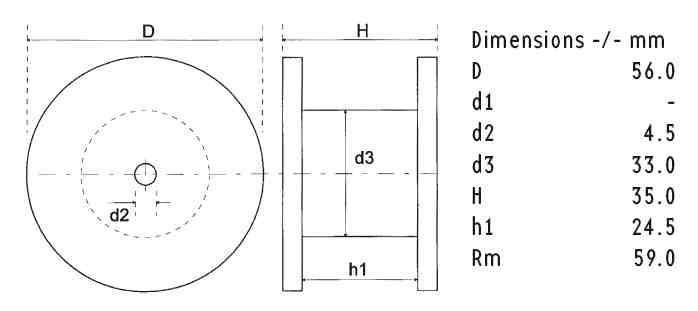

This Intertechnik DR56/3.9/132 Ferrobar Coil, a product within the category of Crossover Components Coils Copper Foil Coils, boasts a high-quality Ferrobar coil with an inductance of 3.9mH and a low resistance of 0.25Ω. This coil is designed with a 16 AWG wire size that offers excellent conductivity and performance. The coil features a CU purity of >99.99% and a wire connection length of 10/ 40mm. The tinning length is 9mm and the coil body material is FERROBAR. The core shape is Ferrobar with an L tolerance of ±5% at Nom. 25°C Cu. 1 kHz FERROBAR (R). Perfect for high-frequency applications where a low resistance and high inductance are required.

I.T. Intertechnik artikelnummer: 1340850
