A high-quality 4.7 mH Ferrobar Coil with excellent purity and precision.
Highlights
- CU purity: > 99.99%
- Wire connection length: 10 / 40 mm
- Tin-plating length: 9 mm
- Inductance tolerance: ± 5%
Product details

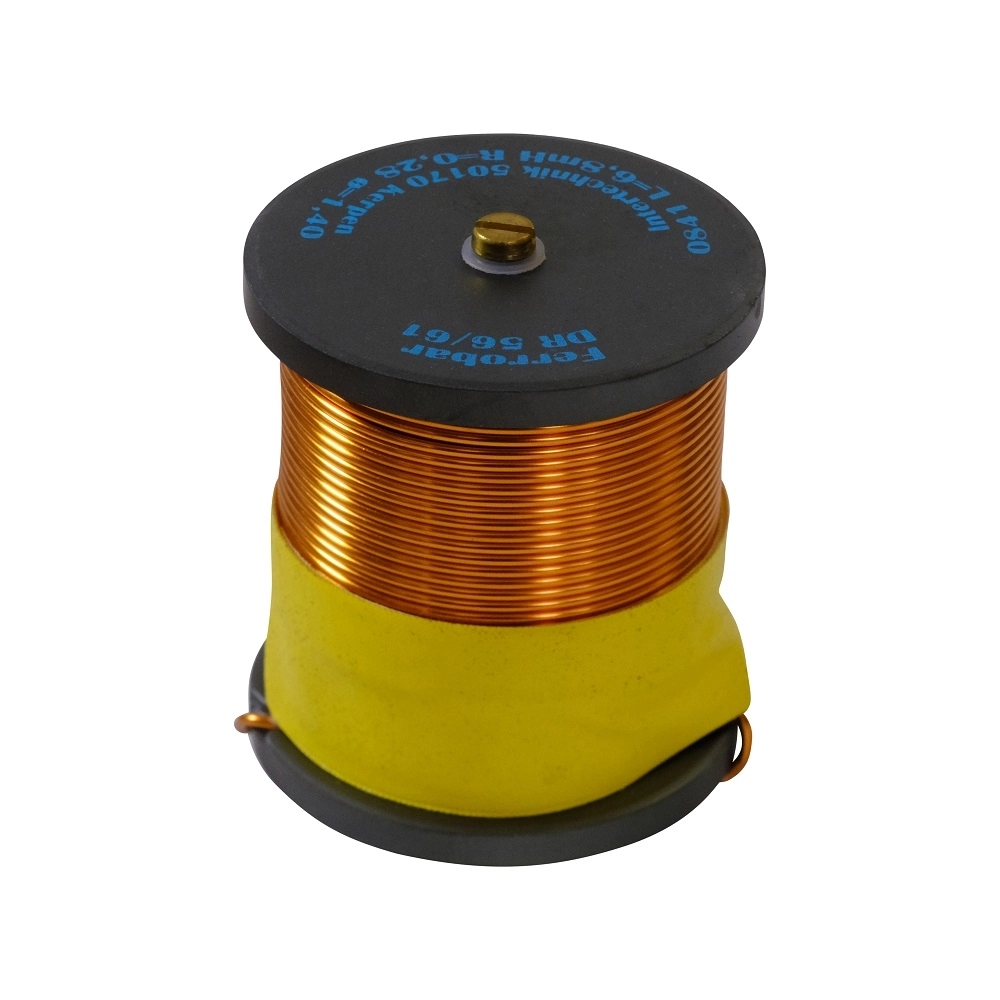

I.T. Intertechnik DR56/4.7/118 | 4,7 mH | 0,33 Ω | 5% | 17 AWG | Ferrobar Coil
The I.T. Intertechnik DR56/4.7/118 is a top-notch Ferrobar Coil, perfect for crossover components and copper foil coils. With a copper purity of over 99.99% and a wire connection length of 10 / 40 mm, this coil ensures superior performance. The tin-plating length of 9 mm further enhances its conductivity and resistance against corrosion. The coil boasts an inductance tolerance of ± 5%, ensuring precise and consistent performance at a nominal 25°C and 1 kHz. The coil is made using Ferrobar, a durable and efficient spool material. It features a resistance of 0.33 Ω and uses 17 AWG wire, ensuring optimal power handling and performance.
I.T. Intertechnik artikelnummer: 1340852
