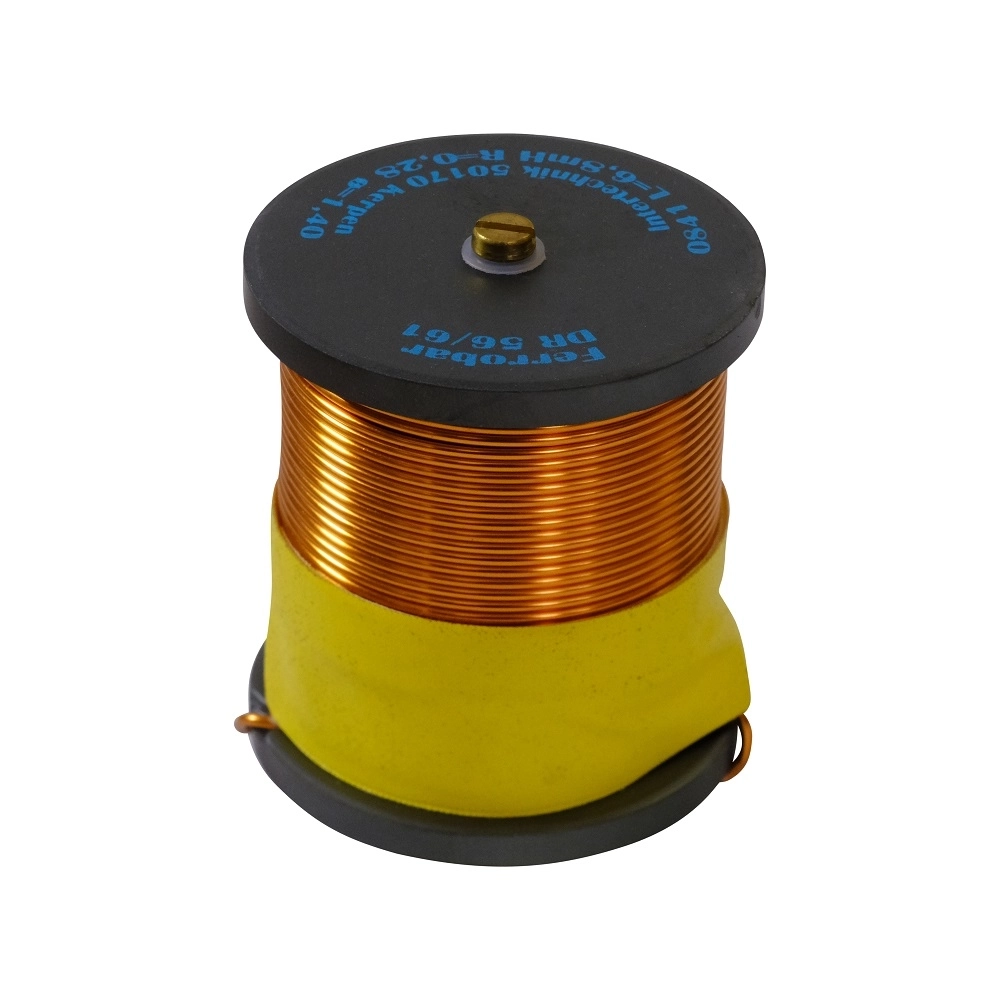

An 8.2 mH, high-quality copper foil coil with a 5% tolerance and Ferrobar core.
Highlights
- High purity copper wire > 99.99%
- Resistance of 0.33 ohms and 8.2 mH inductance
- Ferrobar core for superior magnetic properties
- Tolerance of +-5% for accurate performance
Product details
I.T. Intertechnik DR56/8.2/140 | 8,2 mH | 0,33 Ω | 5% | 15 AWG | Ferrobar Coil

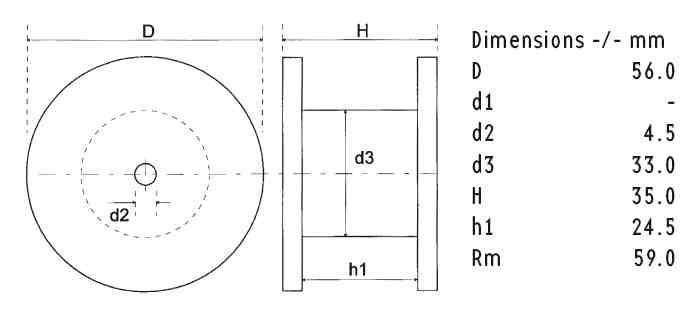

This I.T. Intertechnik DR56/8.2/140 is a top-quality copper foil coil designed for crossover components. The coil has an inductance of 8.2 mH and a resistance of 0.33 ohms. Made from copper wire with a purity of over 99.99%, it delivers excellent electrical conductivity. The coil features a Ferrobar core, which offers superior magnetic properties, enhancing the performance of the coil. It has a tolerance of +-5%, ensuring accurate performance. The coil is designed with a wire connection length of 10 / 40 mm and a tinning length of 9 mm. Its ABS spool body material and 15 AWG wire size make it highly durable. This coil is tested at a nominal temperature of 25 degrees C and 1 kHz, ensuring reliable performance.
I.T. Intertechnik artikelnummer: 1340843
