Name: Intertechnik HQ58/12/118 | 12 mH | 0,45 Ω | 5% | 17 AWG | Roller Core Coil
Brand: Intertechnik
SKU: HQ58/12/118
Price: 37.25 EUR
Availability: InStock

HQ58/12/118 | 12 mH | 0,45 Ω | 5% | 17 AWG | Roller Core Coil

€ 30,79€ 37,25 2 Op voorraad

Gratis verzending vanaf € 99
Voor 16u besteld, vandaag verstuurd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Intertechnik HQ58/12/118 | 12 mH | 0,45 Ω | 5% | 17 AWG

The I.T. Intertechnik HQ58/12/118 is a high-quality roller core coil designed for use in crossover components.

Highlights

12 mH inductance value
0.45 Ω resistance
5% capacitance tolerance
Constructed with 17 AWG copper foil

Product details

I.T. Intertechnik HQ58/12/118 | 12 mH | 0.45 Ω | 5% | 17 AWG | Roller Core Coil

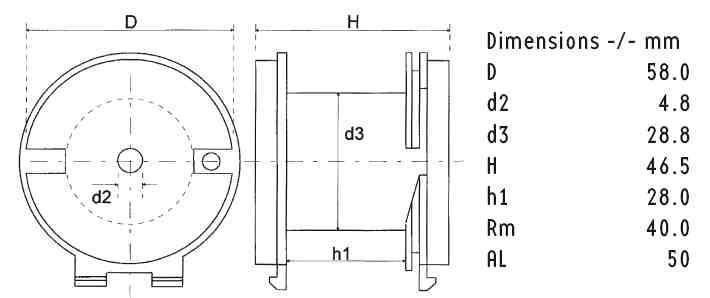

The I.T. Intertechnik HQ58/12/118 Roller Core Coil is a top-tier component in the realm of crossover components. It boasts a 12 mH inductance value and 0.45 Ω resistance, ensuring exceptional performance in any audio application. With a capacitance tolerance of 5%, the HQ58/12/118 offers reliability and consistency in operation. The coil is accurately wound with 17 AWG copper foil, ensuring optimal conductivity and minimal energy loss. The Ferrobar core used in its construction provides high magnetic permeability and low losses at high frequencies. The coil body is made of ABS, known for its excellent mechanical properties, offering durability and longevity. The copper wire used has a purity of >99.99%, providing excellent electrical conductivity. The coil is designed with a wire attachment length of 10/40/50mm and a tinning length of 9/35/45mm. The HQ58/12/118 is a testament to I.T. Intertechnik's commitment to quality and high-performance audio components.

I.T. Intertechnik artikelnummer: 1340278
