The I.T. Intertechnik HQR32/3.9/60 is a high-quality Tube Core Coil with a 3.9mH inductance and 1.58Ω resistance.
Highlights
- High precision with inductance tolerance of ± 5%
- Superior copper wire purity of > 99.99%
- Robust ABS coil body material
- Tube core coil design for optimal performance
Product details

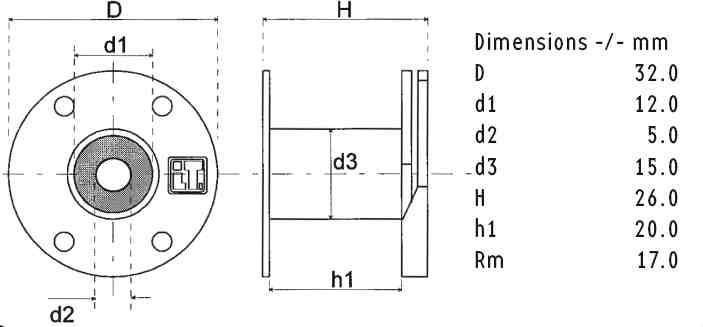

I.T. Intertechnik HQR32/3.9/60 | 3,9 mH | 1,58 Ω | 5% | 23 AWG | Tube Core Coil
The I.T. Intertechnik HQR32/3.9/60 is an exceptional Tube Core Coil designed for crossover components. Equipped with a 3.9mH inductance and a 1.58Ω resistance, this coil is fine-tuned for precision with a ±5% inductance tolerance. It's made from high-purity copper wire with a purity of more than 99.99%, ensuring optimal performance and durability. The coil features a robust ABS coil body material, ensuring it withstands various conditions. Its tube core coil design aids in achieving superior audio frequency response. With a lead length of 10mm and a tinning length of 9mm, this coil is easily integrated into your device. Measured at Nom. 25 Degree C Cu. 1 kHz, trust the HQR32/3.9/60 for all your crossover component requirements.
I.T. Intertechnik artikelnummer: 1340966
