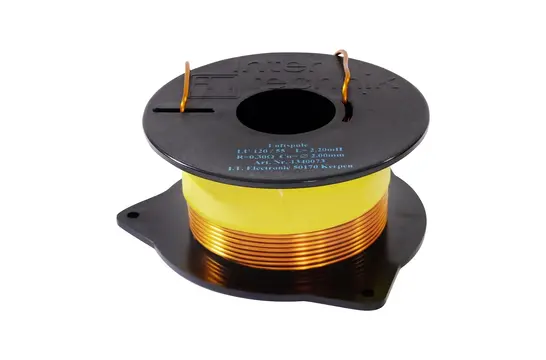

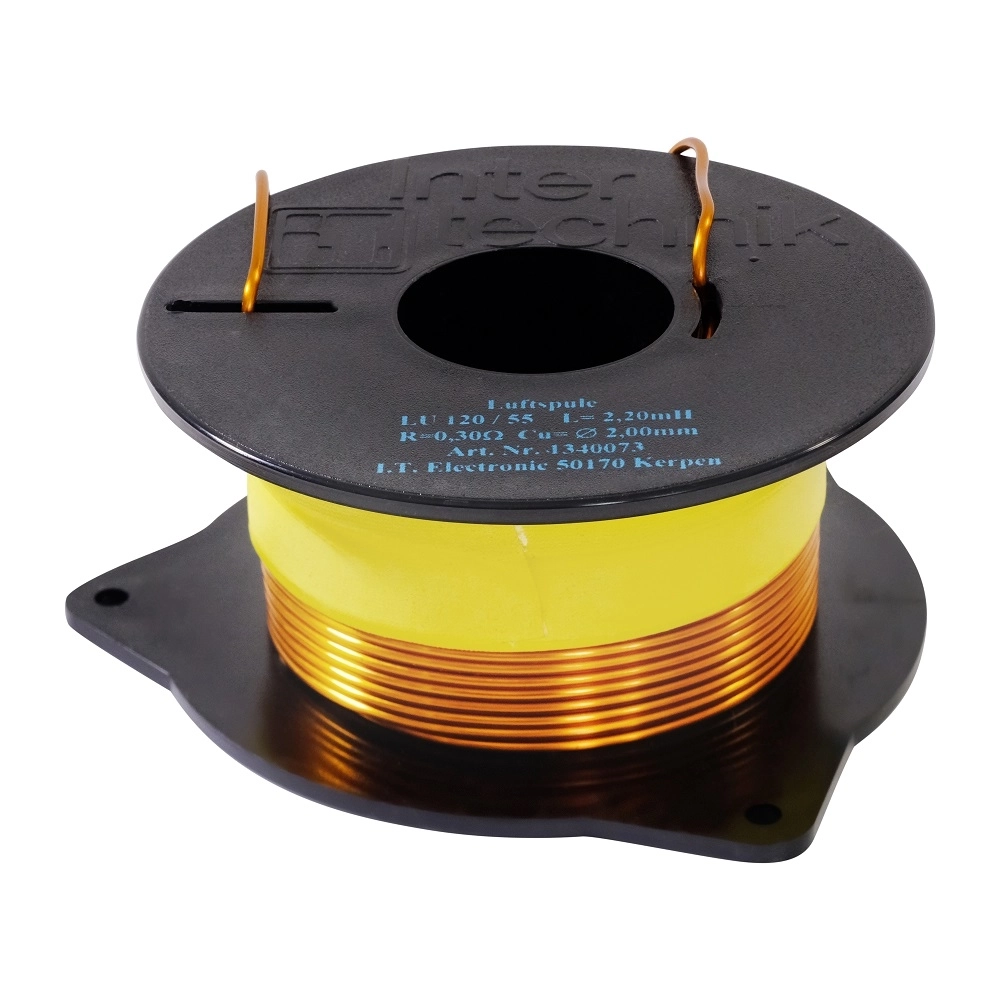

An Intertechnik LU120/2.2/20 Air Coil delivering 2.2mH inductance and 0.28Ω resistance.
Highlights
- 2.2 mH inductance
- 0.28 Ω resistance
- 3% inductance tolerance
- 12 AWG wire size
Product details
I.T. Intertechnik LU120/2.2/20 | 2,2 mH | 0,28 Ω | 3% | 12 AWG |Air Coil
The I.T. Intertechnik LU120/2.2/20 Air Coil is a high-quality crossover component designed for optimal sound transmission. With a 2.2mH inductance and 0.28Ω resistance, it ensures a consistent and reliable performance, ensuring that your audio equipment delivers the highest sound quality. It is constructed with a 12 AWG wire size, indicating its high capacity for current. The coil offers a 3% inductance tolerance, measured nominally at 25 degrees C at 1KHz, guaranteeing accurate performance. The wire connection length is 10mm, and the tinning length is 9mm, all housed within an ABS bobbin for enhanced durability. This air coil is perfect for audio enthusiasts seeking precise, high-quality sound.
I.T. Intertechnik artikelnummer: 1340073
