The I.T. Intertechnik LU120/5.6/20 is a high-performance air coil with a 5.6mH inductance and 0.47Ω resistance.
Highlights
- 5.6mH inductance
- 0.47Ω resistance
- 3% tolerance
- 12 AWG wire gauge
Product details
I.T. Intertechnik LU120/5.6/20 | 5,6 mH | 0,47 Ω | 3% | 12 AWG |Air Coil

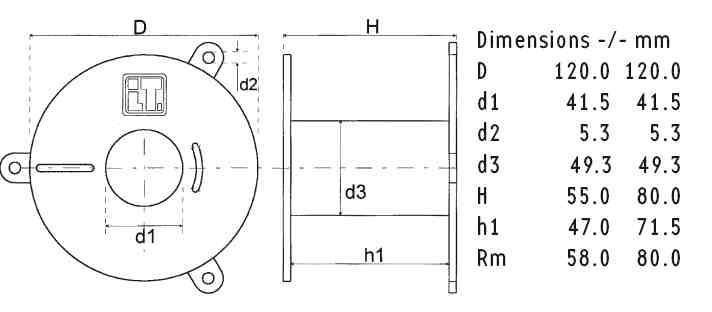

The I.T. Intertechnik LU120/5.6/20 is an air coil designed for crossover components. With an inductance of 5.6mH and a resistance of 0.47Ω, it guarantees superior performance and efficiency. The coil features a wire gauge of 12 AWG, ensuring high electrical conductivity and minimal power loss. Its 3% tolerance ensures precise and consistent performance. The coil is made with ABS material, ensuring durability and long-lasting use. It also features a wire connection length of 10mm and a tinning length of 9mm for easy installation. The inductance is measured at a nominal 25 degrees C at 1KHz, ensuring reliable performance under varying conditions.
I.T. Intertechnik artikelnummer: 1340082
