High-quality air core coil designed for crossover components.
Highlights
- Inductance value of 0.12 mH
- Resistance value of 0.16 Ω
- Inductance Tolerance of 3%
- Constructed with 18 AWG wire
Product details
I.T. Intertechnik LU44/012/100 | 0,12 mH | 0,16 Ω | 3% | 18 AWG |Air Coil

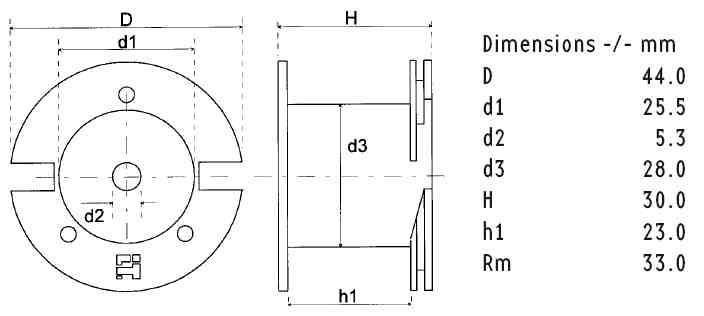

The I.T. Intertechnik LU44/012/100 is a high-quality air core coil specifically designed for crossover components. It features an inductance value of 0.12 mH and a resistance value of 0.16 Ω. The inductance tolerance is kept at -3%, ensuring a high accuracy of the product. Constructed with 18 AWG wire, it promises durability and a long-lasting performance. The coil also features a wire connection length of 10 mm and a tinning length of 9 mm. The coil body material is ABS, known for its toughness and impact resistance. The inductance is measured at a nominal 25 degrees C at 1 KHz. This air core coil is ideal for users who demand high precision and reliable performance in their crossover components.
I.T. Intertechnik artikelnummer: 1340004
