The I.T. Intertechnik LU44/015/100 is a high-quality air coil in the crossover components category.
Highlights
- Specific inductance of 0.15 mH
- Resistance of 0.17 Ω
- Inductance tolerance of 3%
- Constructed with 18 AWG wire
Product details
I.T. Intertechnik LU44/015/100 | 0,15 mH | 0,17 Ω | 3% | 18 AWG |Air Coil

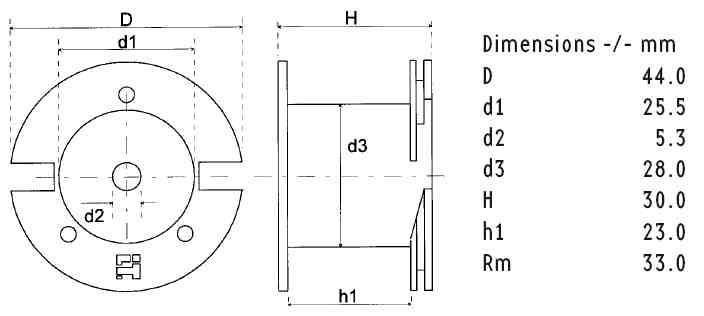

The I.T. Intertechnik LU44/015/100 is a superior air coil, designed for use in crossover components. This coil features a specific inductance of 0.15 mH and a resistance of 0.17 Ω. It is constructed with 18 AWG wire, ensuring high-quality performance and durability. The inductance tolerance is 3%, which is ideal for precision applications. This coil is designed with a wire connection length of 10 mm and a tinning length of 9 mm. The coil body material is ABS, which is known for its strength and durability. The inductance value is measured at a nominal temperature of 25 degrees C at 1 KHz, ensuring reliable and consistent performance. Choose the I.T. Intertechnik LU44/015/100 for your crossover component needs.
I.T. Intertechnik artikelnummer: 1340006
