The I.T. Intertechnik LU44/018/100 is a high-quality air coil designed for crossover components.
Highlights
- Features a 0.18 mH inductance
- Offers a resistance of 0.22 Ω
- Constructed with 18 AWG wire for efficient performance
- Provides an impressive inductance tolerance of 3%
Product details
I.T. Intertechnik LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG |Air Coil

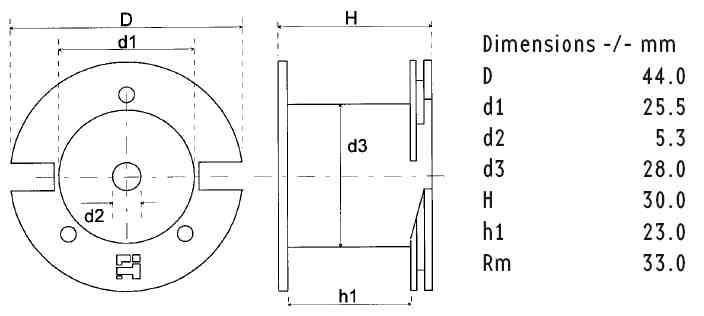

The I.T. Intertechnik LU44/018/100 is an optimal choice for those seeking a reliable and efficient air coil. It features an inductance of 0.18 mH and a resistance of 0.22 Ω, which ensures a smooth and clear audio performance. The coil is made with 18 AWG wire, promising strong conductivity and thus, superior performance. One of the standout features of this coil is its inductance tolerance of 3%, which is testament to its precise and accurate performance. Additionally, it has a wire connection length of 10mm and a tinning length of 9mm, offering easy installation. The coil body material is ABS, guaranteeing durability and long-lasting use. This product is perfect for crossover components, delivering excellent sound quality at nominal 25 degrees C at 1KHz.
I.T. Intertechnik artikelnummer: 1340008
