Name: Intertechnik LU92/056/200 | 0,56 mH | 0,12 Ω | 3% | 12 AWG | Air Coil
Brand: Intertechnik
SKU: LU92/056/200
Price: 39.25 EUR
Availability: InStock

LU92/056/200 | 0,56 mH | 0,12 Ω | 3% | 12 AWG | Air Coil

€ 32,44€ 39,25 2 Op voorraad

Gratis verzending vanaf € 99
Nu besteld, morgen bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Intertechnik LU92/056/200 | 0,56 mH | 0,12 Ω | 3% | 12 AWG

The I.T. Intertechnik LU92/056/200 is a high-performance 0.56mH air coil for crossover components.

Highlights

0.56mH inductance, precision engineered for optimal performance
0.12 Ω resistance, ensuring minimal energy loss
3% inductance tolerance, for precise sound reproduction
12 AWG wire, offering superior power handling

Product details

I.T. Intertechnik LU92/056/200 | 0,56 mH | 0,12 Ω | 3% | 12 AWG |Air Coil

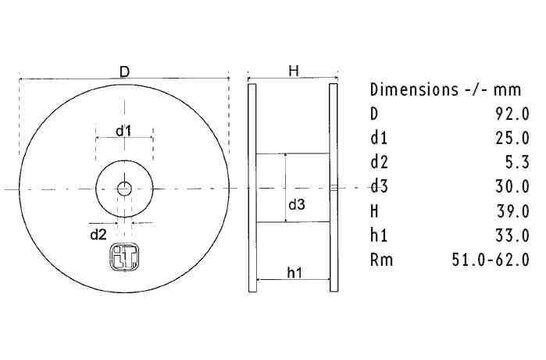

The I.T. Intertechnik LU92/056/200 is a top-notch air coil, designed to provide high performance in crossover component applications. With a 0.56mH inductance and 0.12 Ω resistance, this coil ensures minimal energy loss and optimal sound reproduction. It features a 3% inductance tolerance, which ensures the precise and consistent performance needed for high-quality sound systems. The coil is made with 12 AWG wire, providing superior power handling and durability. The coil's wire length is 10mm with a tinning length of 9mm, and its bobbin material is ABS, a reliable and durable material. The inductance measurement is nominal at 25 degrees C at 1KHz, demonstrating its stability and consistency under different temperature conditions. This air coil is an excellent choice for any high-quality audio system.

I.T. Intertechnik artikelnummer: 1340918
