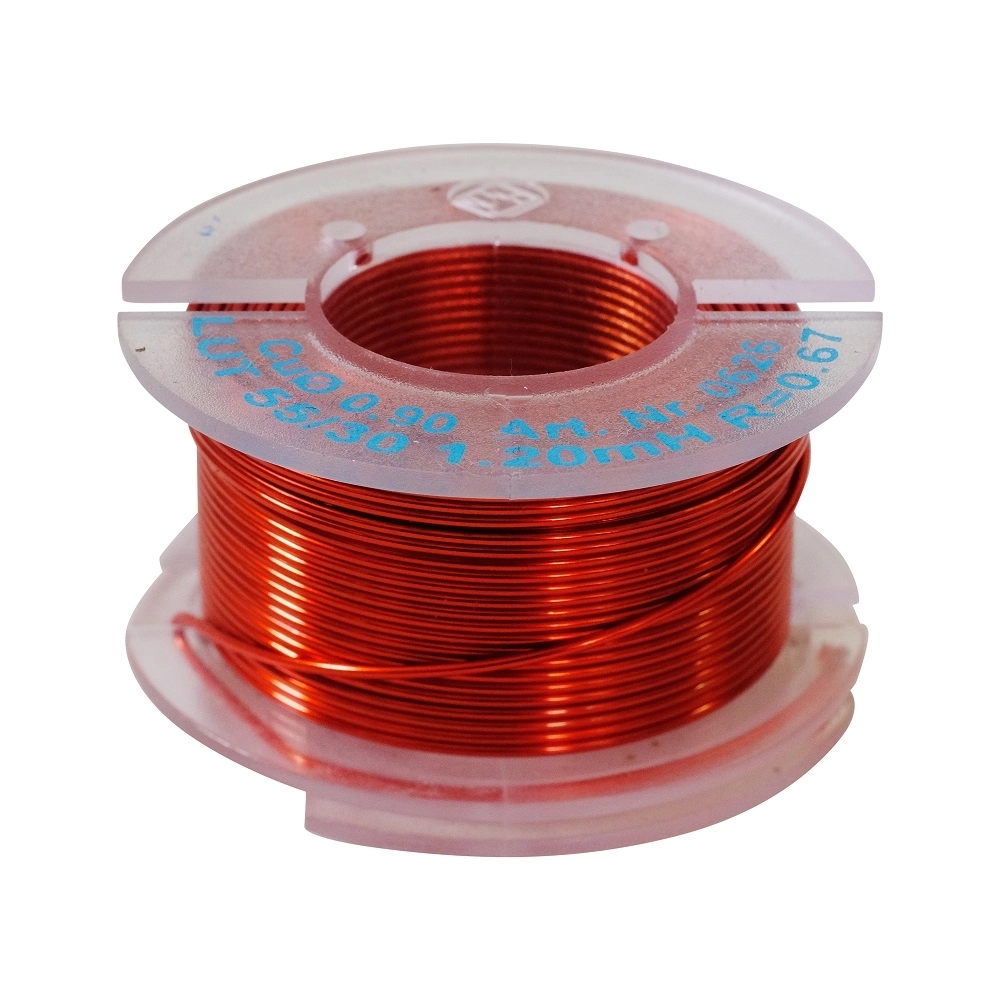

The I.T. Intertechnik LUT55/1.2/10 is a top-class air therm inductor with 1.2mH inductance and 0.67 Ω resistance.
Highlights
- High purity copper wire: >99.99%
- Inductance tolerance: -3%
- Thermal stability: -90 to 135 degrees C
- 18 AWG wire gauge
Product details
I.T. Intertechnik LUT55/1.2/10 | 1,2 mH | 0,67 Ω | 3% | 18 AWG | Air Therm Inductor
The I.T. Intertechnik LUT55/1.2/10 is a premium air therm inductor designed for crossover components coils air core coils. It features an inductance of 1.2mH, a resistance of 0.67 Ω, and a tolerance of -3%. The inductor is made using high-purity copper wire with a purity of over 99.99%. The wire connection length is 50mm, and the tinning length is 9mm. The coil body material is polycarbonate, ensuring high thermal stability between -90 and 135 degrees Celsius. The inductor is measured at a nominal 25 degrees Celsius Cu. at 1kHz. This product is a perfect choice for high-quality audio applications.
I.T. Intertechnik artikelnummer: 1340626
