        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil

        Intertechnik TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil

        €236,45

        Niet op voorraad

        Toevoegen aan winkelwagen

        Intertechnik TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Intertechnik
        Toon alle Luchtspoelen
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        € 236,45 Niet op voorraad
        +-
        Toevoegen aan winkelwagen
        • Gratis verzonden (NL & BE)
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil
        TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG | Tritec Coil

        Productomschrijving Intertechnik TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 7 x 23 AWG

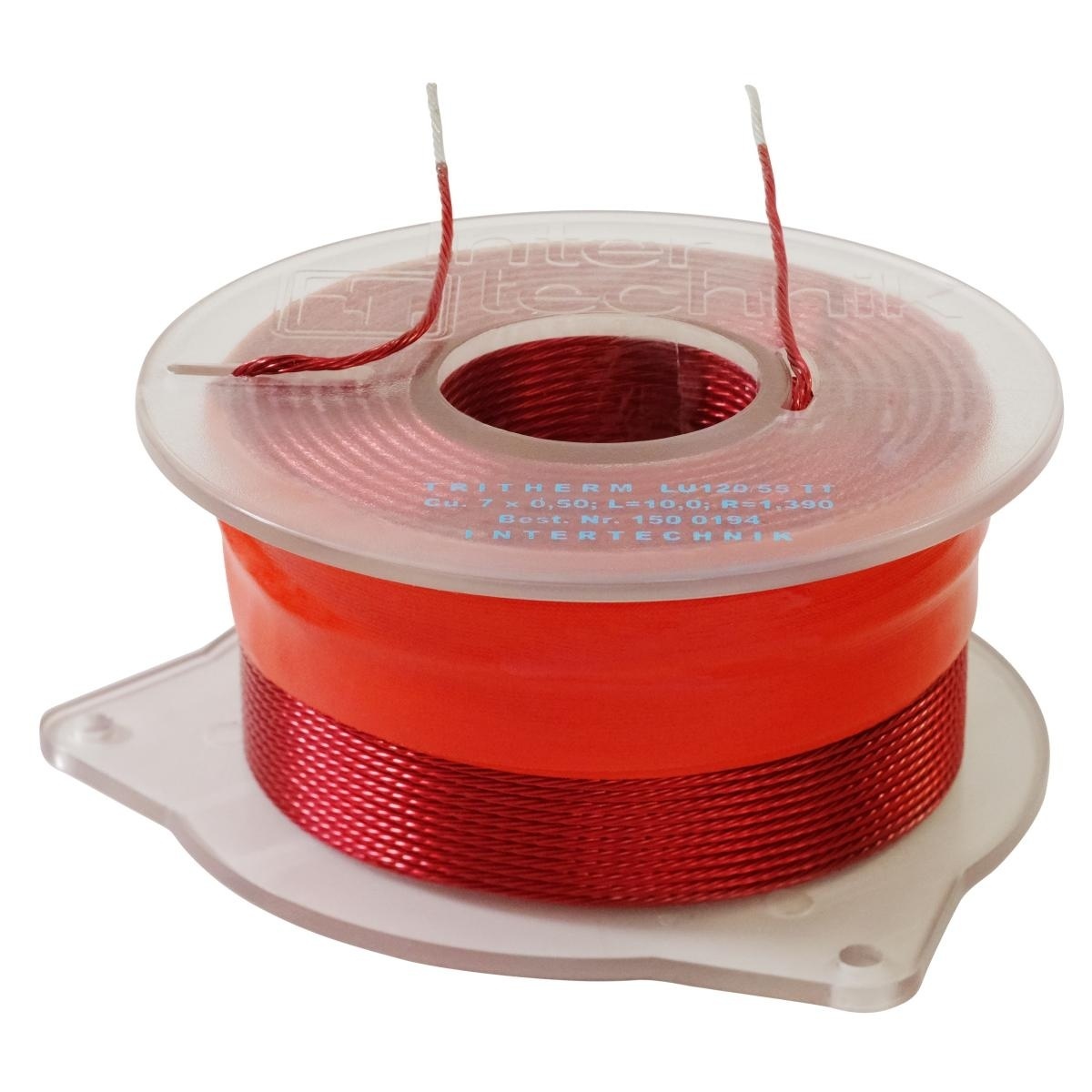

        This I.T. Intertechnik Coil with Tritec technology offers optimal sound quality with low resistance and constant inductance.



        Highlights

        • High-end choke coil with "Septem Coxid" technology
        • Low ohmic resistances and very low skin effect
        • No saturation and hysteresis distortions
        • Excellent sound properties with CU purity: > 99.99%



        Product details

        I.T. Intertechnik TRI/120/8.20/0.60 | 8,2 mH | 0,89 Ω | 1% | 23 AWG | Tritec Coil



        This I.T. Intertechnik Coil with Tritec technology offers unparalleled audio experience thanks to its advanced "Septem Coxid" technology. Its design consists of a winding with concentric litz construction with seven single litz, thermoplastic enamel wire, baked and soaked. It boasts low ohmic resistances, very low skin effect, and no saturation or hysteresis distortions. Its constant inductance remains unchanged under voltage and load changes. The coil also has a low self-capacitance and superior sound properties. CU purity is well above 99.99%, with a wire connection length of 100mm and tin plating of 10mm. The coil body material is polycarbonate with a tolerance of -1% and an insulation temperature of 150 degrees Celsius. The coil is heat resistant from -90 degrees Celsius up to 135 degrees Celsius. Its temperature coefficient is 0.000394 per degree Celsius with a Skin Effect Rac=Rdc 27, 18, 12. This makes the Intertechnik Tritec Coil a preferred choice in audio cabling.



        I.T. Intertechnik artikelnummer: 1500245

        Specificaties

        Artikelnummer
        TRI/120/8.20/0.60
        EAN
        9507464872750
        Spoeltype
        Air core coils
        Inductie
        8.2 mH
        Gelijkstroomweerstand
        0.89 ohms
        Tolerantie
        1%
        Draaddiameter
        23 AWG
