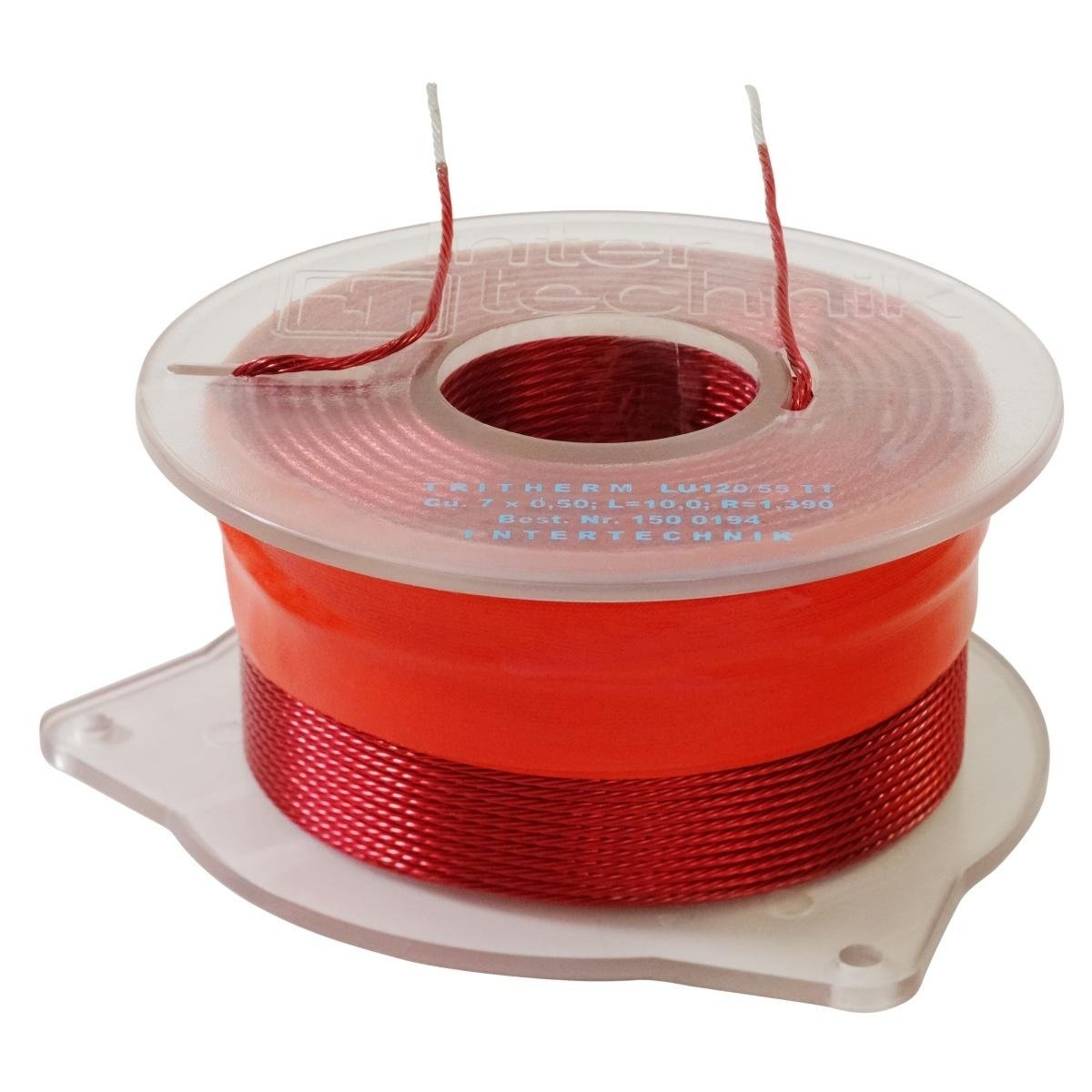

Intertechnik's high-end TRI120/15.0/0.50 Tritec Coil with superior sound properties
Highlights
- Outstanding 1% inductance tolerance at 15mH
- Low resistance of 1.75 ohms for high efficiency
- Unique 7-strand Tritec technology for increased current capacity
- High-grade copper purity of over 99.99%
Product details
I.T. Intertechnik TRI120/15.0/0.50 | 15 mH | 1,75 Ω | 1% | 24 AWG | Tritec Coil
The I.T. Intertechnik TRI120/15.0/0.50 Tritec Coil, a standout in the realm of crossover components coils air core coils, is a high-end inductor that embodies all the desirable properties of a choke coil. It is made with a 7-strand Tritec wire, providing several advantages such as enhanced flexibility and bendability, increased current capacity, reduced skin-effect, and noise reduction. This coil features a unique concentric litz construction with 7 individual strands, thermoplastic enameled wire, low ohmic resistance, and excellent sound properties. With a copper purity of over 99.99%, a wire connection length of 100mm, and 10mm of tinning, this coil ensures constant inductance during voltage and load changes. The coil also stands out with an insulation temperature of 150 degrees C and thermal shape resistance from -90 degrees C to 135 degrees C. The Intertechnik TRI120/15.0/0.50 Tritec Coil is a preferred choice in audio cabling.
I.T. Intertechnik artikelnummer: 1500196
