This is a high-end, 24 AWG Tritec Coil from I.T. Intertechnik, with a specific inductance of 5.6mH, a resistance of 0.99 ohms, and a capacitance tolerance of 1%.
Highlights
- Made with high purity copper > 99.99%
- Constant inductance with load changes
- Reduced skin effect
- Excellent sound properties
Product details

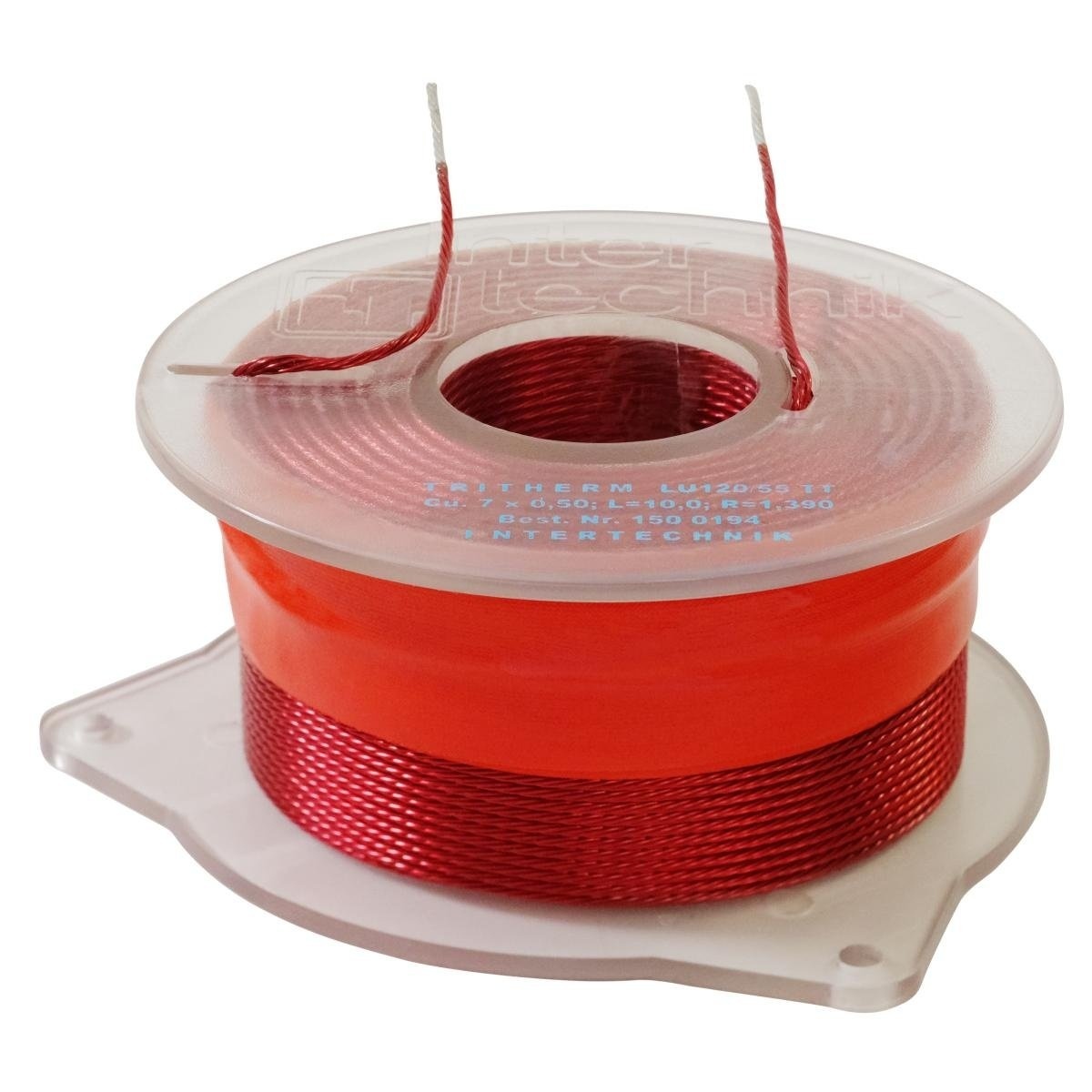

I.T. Intertechnik TRI120/5.60/0.50 | 5,6 mH | 0,99 Ω | 1% | 24 AWG | Tritec Coil
This Tritec Coil from Intertechnik, a leader in crossover components and air core coils, features a unique "Septem Coxid" technology, resulting in a coil with low ohmic resistance, minimal distortion, and exceptional sound quality. The coil is wound with seven individual strands, making it flexible and with high current carrying ability without excessive heating. The Tritec wire's unique twisted structure minimizes the skin effect, optimizes current distribution, and reduces noise caused by electromagnetic interference. With a copper purity of over 99.99%, an insulation temperature of 150 degrees C, and a temperature coefficient of 0.000394 per degree C, this coil offers superior performance for advanced audio wiring applications.
I.T. Intertechnik artikelnummer: 1500191
