Name: Intertechnik TRI92/2.20/0.60 | 2,2 mH | 0,42 Ω | 1% | 23 AWG | Tritec Coil
Brand: Intertechnik
SKU: TRI92/2.20/0.60
Price: 125.25 EUR
Availability: InStock

TRI92/2.20/0.60 | 2,2 mH | 0,42 Ω | 1% | 23 AWG | Tritec Coil

€ 103,51€ 125,25 2 Op voorraad

Gratis verzonden (NL & BE)
Nu besteld, morgen verstuurd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Intertechnik TRI92/2.20/0.60 | 2,2 mH | 0,42 Ω | 1% | 23 AWG

The I.T. Intertechnik TRI92/2.20/0.60 is a high-end air core coil with advanced "Septem Coxid" technology.

Highlights

2.2 mH inductance with 1% tolerance
Resistant to saturation and hysteresis distortions
Features 7 strand twisted conductors for enhanced performance
Polycarbonate coil body material for durability

Product details

I.T. Intertechnik TRI92/2.20/0.60 | 2,2 mH | 0,42 Ω | 1% | 23 AWG | Tritec Coil

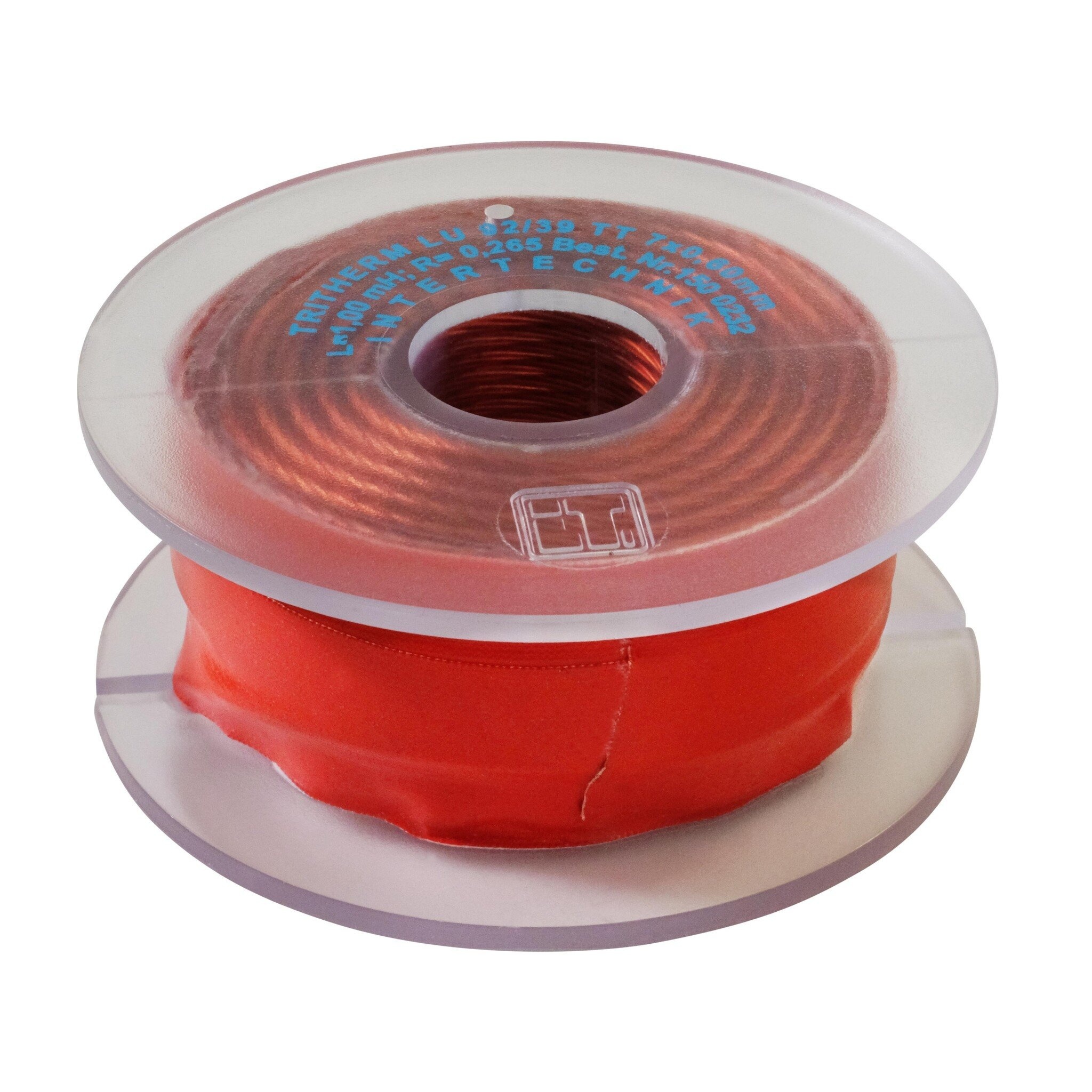

The I.T. Intertechnik TRI92/2.20/0.60 Tritec Coil is a top-quality air core coil designed for use in crossover components. It boasts an inductance of 2.2 mH with a tolerance of 1% and a resistance of 0.42 Ω. Made using "Septem Coxid" technology, the coil features a concentric winding structure with 7 individual strands. This design ensures low ohmic resistances, minimal skin effect, and no saturation or hysteresis distortions. It also guarantees constant inductance even with voltage and load changes. The coil is made from polycarbonate, a durable and heat resistant material, and can handle insulation temperatures up to 150 degrees Celsius. Furthermore, the 7-strand twisted conductors offer improved flexibility, increased current handling, reduced skin effect, and noise reduction. This makes the I.T. Intertechnik TRI92/2.20/0.60 Tritec Coil an exceptional choice for audio wiring applications.

I.T. Intertechnik artikelnummer: 1500237
