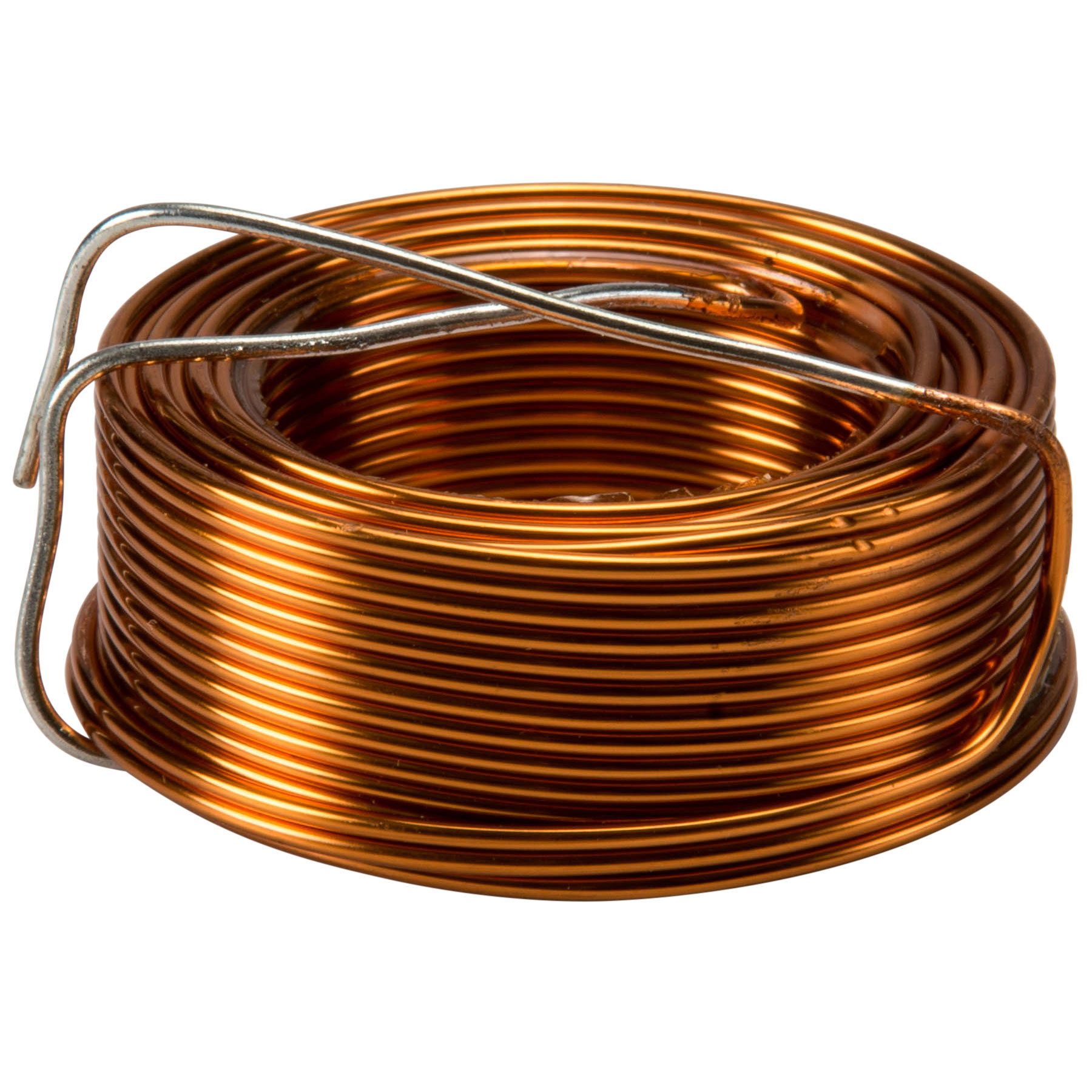

        000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core spoel

        Jantzen Audio 000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core spoel

        €4,75

        4 Op voorraad

        Toevoegen aan winkelwagen

        Jantzen Audio 000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core spoel

        1 reviews
        4 van 5
        1 reviews
        5 sterren
        0%
        4 sterren
        100%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Jantzen Audio
        Toon alle Luchtspoelen
        000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core spoel
        € 3,93€ 4,75 4 Op voorraad
        • -5% Bestel 4 voor slechts € 4,51 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core spoel

        Productomschrijving Jantzen Audio 000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG

        High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.



        Highlights

        • Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
        • Grade 1B copper wire
        • Polyurethane with aliphatic polyamide bond coat
        • Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
        • High power handling



        Product details

        Jantzen Audio 000-1076 | 0,25 mH | 0,22 Ω | 3% | 18 AWG | Air Core Coil



        The copper wire has an insulating layer of lacquer and a bonding layer of lacquer which is melted at high voltage to create the bonding of the “baked” wire, making the inductor self-sustaining. Modern self-supporting design, low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Overall diameter: max 1.091 • Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • Breakdown voltage: In accordance with IEC 60317-0-1 (7,8 kV) • Tangent delta /TD 300/: ³ 140 • Solder ability at 390°C: 8 s.

        Toon meer

        Specificaties

        Artikelnummer
        000-1076
        EAN
        8785256838165
        Spoeltype
        Air core coil
        Inductie
        0.25 mH
        Gelijkstroomweerstand
        0.22 ohms
        Tolerantie
        3%
        Draaddiameter
        18 AWG
        Belastbaarheid
        300 watts
        Afmetingen Ø * H (mm)
        40 x 15

        Toon meer

        Reviews

        1 reviews
        Schrijf een review
        4 van 5
        Excellent price quality
        Door Pjp P. on 4 Januari 2020
