High-performance 0.45mH 0.22Ω 20AWG Iron Core Coil by Jantzen Audio for crossovers.
Highlights
- Low 0.22Ω DCR for minimal efficiency loss
- Premium 0.45mH inductance with 3% tolerance
- Robust 20 AWG wire for enhanced power handling
- Optimized for bass & mid sections in crossovers
Product details

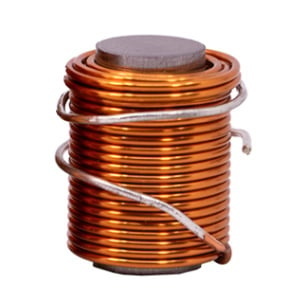

Jantzen Audio 000-2135 | 0,45 mH | 0,22 Ω | 3% | 20 AWG | Iron Core Coil
The Jantzen Audio 000-2135 iron core coil is a meticulously engineered component for audio crossover systems, specifically designed to elevate the performance of bass and midrange sections. Crafted with high-purity copper wire tightly wound around a Permite core, it guarantees minimal electrical resistance at 0.22 ohms, ensuring that the driver's damping factor remains unaltered and efficiency is maintained. The coil's 0.45mH inductance with a 3% tolerance provides precise crossover points and improved sound clarity.
Unlike coils with ferrite cores, the non-ferrite Permite core of this coil significantly reduces hysteresis, leading to lower power loss and higher power handling which is influenced by the core size and the thickness of the 20 AWG wire. This coil is generally recommended for use within the bass and mid sections of loudspeaker crossovers, where its ability to handle higher power without saturation is most beneficial. The Jantzen Audio 000-2135 iron core coil is an essential component for audiophiles and loudspeaker designers seeking uncompromised audio fidelity and reliability.
