High-performance 0.36mH 20 AWG iron core coil for crossover networks.
Highlights
- Low 0.19 Ω resistance preserves driver damping factor
- Iron core provides excellent power handling
- 0.36 mH inductance with 3% tolerance for precise crossover tuning
- High-purity copper wire ensures minimal efficiency loss
Product details

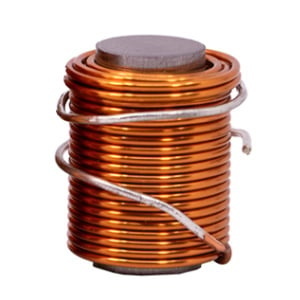

Jantzen Audio 000-2216 | 0,36 mH | 0,19 Ω | 3% | 20 AWG | Iron Core Coil
The Jantzen Audio 000-2216 Iron Core Coil is a meticulously designed component for audio enthusiasts who seek to build or upgrade their crossover networks. This coil features 0.36 mH inductance with a tight 3% tolerance, allowing for precise frequency division within the speaker system. The 20 AWG high-purity copper wire is wound around a Permite core, resulting in an extremely low Direct Current Resistance (DCR) of just 0.19 Ω. This low resistance is crucial as it does not alter the driver's damping factor or contribute to efficiency loss, maintaining the integrity of the audio signal.
The choice of an iron core over a ferrite core significantly reduces hysteresis, translating to lower distortion and a purer sound. Furthermore, the iron core ensures a robust power handling capacity, determined by the core size and wire thickness, making the coil well-suited for the bass and mid-range sections of a loudspeaker's crossover.
Crafted for durability and performance, the Jantzen Audio 000-2216 coil is generally recommended for the bass and mid sections of a crossover, providing a superior listening experience with minimal signal alteration and maximum power handling capabilities.
