Compact 10 mH Jantzen Audio Iron Core Coil for precise crossover builds.
Highlights
- 10 mH inductance with 3% tolerance for accurate frequency division
- 2.82 Ω resistance ensuring minimal impact on driver damping
- High-purity 24 AWG copper wire for excellent signal integrity
- Non-ferrite Permite core for lower hysteresis and high power handling
Product details

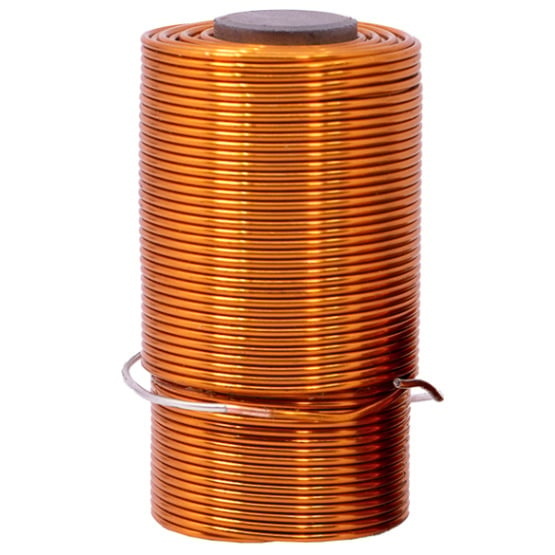

Jantzen Audio 000-2252 | 10 mH | 2,82 Ω | 3% | 24 AWG | Iron Core Coil
The Jantzen Audio 000-2252 Iron Core Coil is an essential component for audiophiles looking to construct or upgrade their speaker crossovers, particularly suited for the bass and mid sections. With a substantial 10 mH inductance and a tight 3% tolerance, this coil is designed for precise frequency management in audio systems. The coil features a 2.82 Ω resistance, ensuring that it does not significantly alter the driver's damping factor or contribute to efficiency loss. Wound with high-purity 24 AWG copper wire around a Permite core, the coil provides excellent signal integrity and maintains a consistently low DCR, crucial for maintaining the speaker's intended sound characteristics. The choice of a non-ferrite core material markedly reduces hysteresis and affords the coil a remarkable power handling capability, which is determined by the core size and wire thickness. This Jantzen Audio Iron Core Coil is particularly recommended for the bass and mid-range sections of loudspeaker crossovers, delivering a combination of performance and reliability that audio enthusiasts and professionals will appreciate.
