        000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core spoel met Disks

        Jantzen Audio 000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core spoel met Disks

        €28,25

        6 Op voorraad

        Toevoegen aan winkelwagen

        Jantzen Audio 000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core spoel met Disks

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Jantzen Audio
        Toon alle Ijzerkernspoelen
        000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core spoel met Disks
        € 23,35€ 28,25 6 Op voorraad
        • -5% Bestel 4 voor slechts € 26,84 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core spoel met Disks

        Productomschrijving Jantzen Audio 000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG

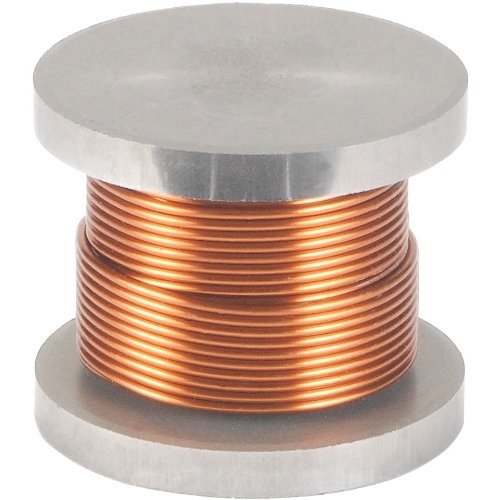

        High-purity copper wire wound around a Permite core with discs.



        Highlights

        • Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
        • Grade 1B copper wire
        • Polyurethane with aliphatic polyamide bond coat
        • Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
        • High power handling



        Product details

        Jantzen Audio 000-5325 | 8,0 mH | 0,34 Ω | 3% | 15 AWG | Iron Core Coil With Disks



        Extremely low DCR which does not alter driver damping factor and add to loss of efficiency. The non-ferrite core/disc material provides significant lower hysteresis compared to coils with ferrite cores, at the same time delivering higher power handling. Generally only recommended for bass & mid-section on crossover. Power handling capability is determined by core/disc size and wire thickness.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Overall diameter: max 1.091 • Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • 15 AWG • Wire diameter 1.4mm • Inductance 0.22mH to 15mH.

        Toon meer

        Specificaties

        Artikelnummer
        000-5325
        EAN
        8785256839377
        Spoeltype
        Iron core coil
        Inductie
        8 mH
        Gelijkstroomweerstand
        0.34 ohms
        Tolerantie
        3%
        Draaddiameter
        15 AWG
        Belastbaarheid
        400 watts
        Afmetingen Ø * H (mm)
        55 x 46

        Toon meer
