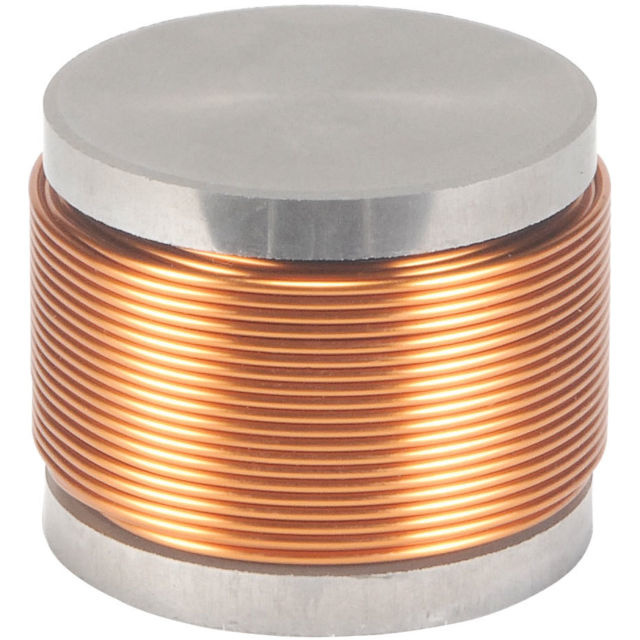

Name: Jantzen Audio 000-5402 | 3,5 mH | 0,22 Ω | 3% | 15 AWG | Iron Core spoel met Disks
Brand: Jantzen Audio
SKU: 000-5402
Price: 19.95 EUR
Availability: InStock

000-5402 | 3,5 mH | 0,22 Ω | 3% | 15 AWG | Iron Core spoel met Disks

€ 16,49€ 19,95 2 Op voorraad6 verwacht op 25-12-2024

Gratis verzending vanaf € 99
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Jantzen Audio 000-5402 | 3,5 mH | 0,22 Ω | 3% | 15 AWG

High-purity copper wire wound around a Permite core with discs.

Highlights

Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
Grade 1B copper wire
Polyurethane with aliphatic polyamide bond coat
Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
High power handling

Product details

Jantzen Audio 000-5402 | 3,5 mH | 0,22 Ω | 3% | 15 AWG | Iron Core Coil With Disks

Extremely low DCR which does not alter driver damping factor and add to loss of efficiency. The non-ferrite core/disc material provides significant lower hysteresis compared to coils with ferrite cores, at the same time delivering higher power handling. Generally only recommended for bass & mid-section on crossover. Power handling capability is determined by core/disc size and wire thickness.

All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.

Specifications: Overall diameter: max 1.091 • Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • 15 AWG • Wire diameter 1.4mm • Inductance 0.22mH to 15mH.
