Precision-crafted 18.5mH iron core coil with 3% tolerance for superior audio crossovers.
Highlights
- High-purity 17 AWG copper wire for excellent signal fidelity
- Low 0.60 Ω DCR to maintain driver damping factor
- Iron core with discs for reduced hysteresis and high power handling
- Perfect for bass & mid sections in loudspeaker crossovers
Product details

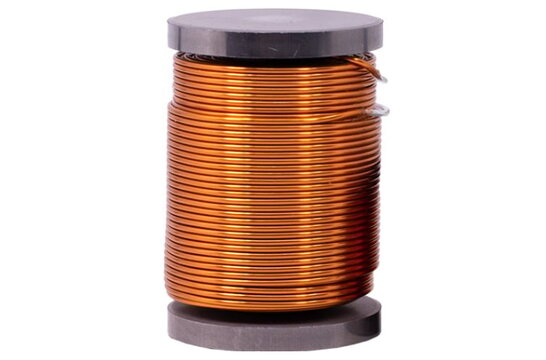

Jantzen Audio 000-5466 | 18,5 mH | 0,60 Ω | 3% | 17 AWG | Iron Core Coil with Discs
The Jantzen Audio 000-5466 is a meticulously engineered iron core coil designed for use in high-end audio crossovers, specifically tailored for the bass and midrange sections. This coil boasts a substantial inductance of 18.5 mH with a tight 3% tolerance, ensuring consistent performance across multiple units. The coil is wound with high-purity 17 AWG copper wire, which not only provides excellent conductivity but also contributes to the coil's extremely low direct current resistance (DCR) of just 0.60 Ω. This low DCR is crucial as it does not alter the damping factor of the driver, thereby maintaining the efficiency and accuracy of the audio signal.
Moreover, the iron core combined with discs significantly lowers hysteresis compared to ferrite core coils, translating to less distortion and more precise audio reproduction. The non-ferrite core material also allows for higher power handling, making it suitable for demanding audio applications. When it comes to power, the coil's capability is determined by the size of the core/disc and the thickness of the wire, ensuring it can withstand the rigors of high-volume playback without performance degradation. Choose the Jantzen Audio 000-5466 for a premium crossover component that delivers clarity and power to your audio system.
