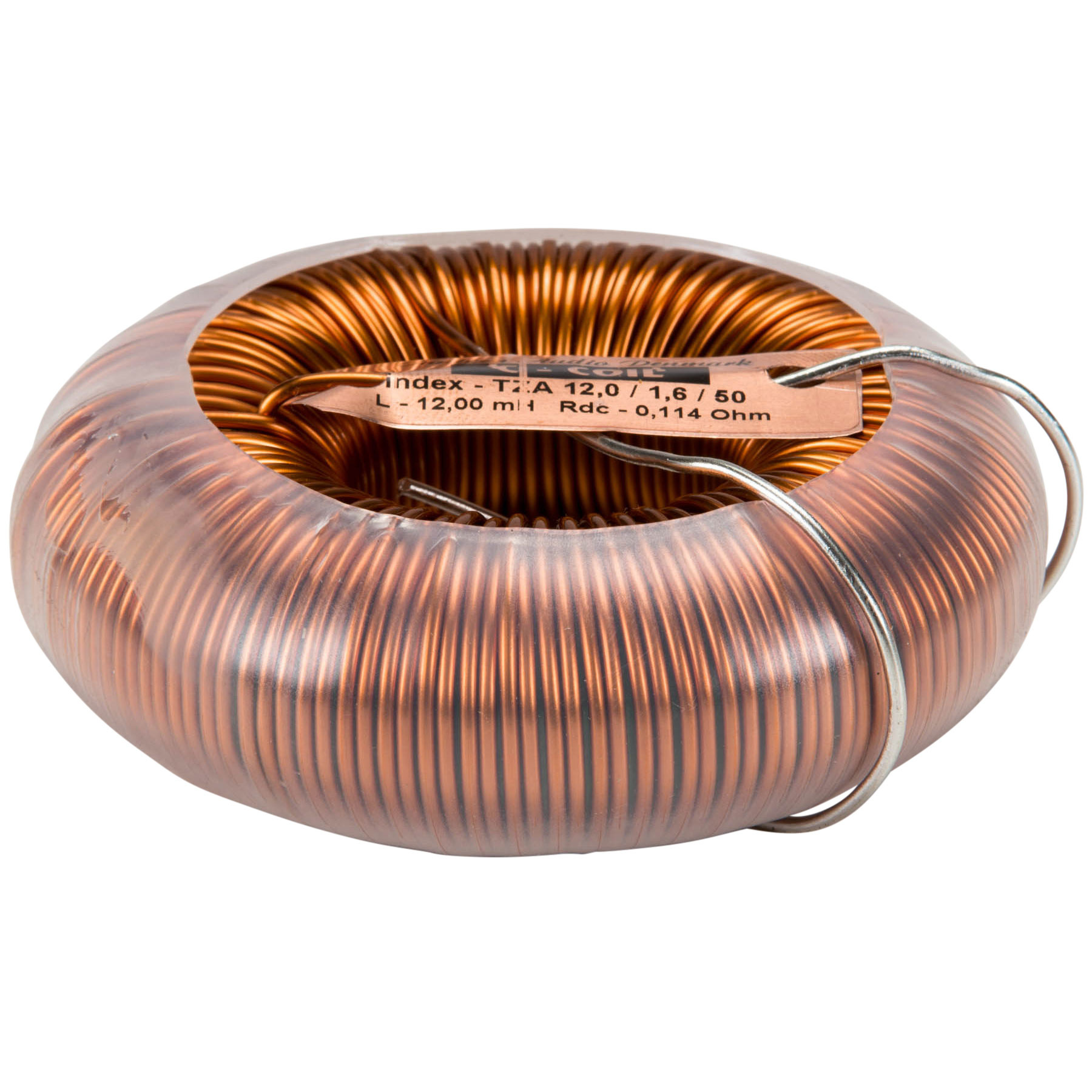

        000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-spoel

        Jantzen Audio 000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-spoel

        €72,45

        4 Op voorraad

        Toevoegen aan winkelwagen

        Jantzen Audio 000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-spoel

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Jantzen Audio
        Toon alle Ringkernspoelen
        000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-spoel
        € 59,88€ 72,45 4 Op voorraad
        • -5% Bestel 4 voor slechts € 68,83 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-spoel

        Productomschrijving Jantzen Audio 000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG

        The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed for the bass section of crossovers and for passive Sub-Woofers.



        Highlights

        • Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
        • Toroidal (sandwich) core made from epoxy laminated steel plates
        • All C-Coils are measured after being wound, using a professional CLIO system @ AC 1V 1kHz
        • Not suitable for crossovers with an XO point above 1.20 kHz



        Product details

        Jantzen Audio 000-6515 | 12 mH | 0,11 Ω | 5% | 14 AWG | C-Coil



        The C-Coil is an audio inductor, unique to Jantzen Audio. It is a toroidal core audio inductor with a very high-power handling and extremely low resistance (RDC). The extremely high-power handling makes it the ultimate inductor for the bass section for certain crossover design. Wound on a toroidal sandwiched steel core and using shrink foil to reduce microphonic effect. The C-Coil is specifically designed for the bass section for crossovers and is not recommended for the mid-range or tweeter section.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Power handling: 1500 Watt RMS • Inductance tolerance: +/- 5% • Resistance (RDC) tolerance: +/- 10%.

        Toon meer

        Specificaties

        Artikelnummer
        000-6515
        EAN
        8785256839209
        Spoeltype
        Toroidal coil
        Inductie
        12 mH
        Gelijkstroomweerstand
        0.11 ohms
        Tolerantie
        5%
        Draaddiameter
        14 AWG
        Belastbaarheid
        700 watts
        Afmetingen Ø * H (mm)
        94 x 32
