        000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil

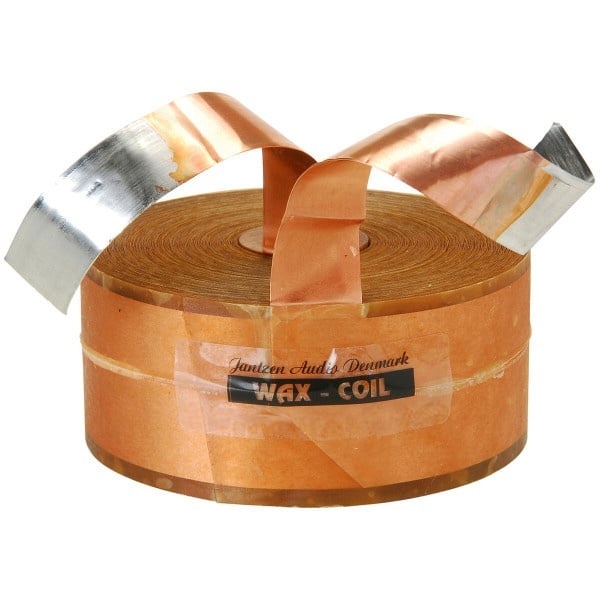

        Jantzen Audio 000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil

        €164,95

        Niet op voorraad

        Toevoegen aan winkelwagen

        Jantzen Audio 000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Jantzen Audio
        Toon alle Koperfoliespoelen
        000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil
        € 136,32€ 164,95 Niet op voorraad
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil

        Productomschrijving Jantzen Audio 000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG

        A premium 4.3mH copper foil inductor with a low 0.45Ω resistance and precision 2% tolerance.



        Highlights

        • Constructed with ETP copper foil for superior electron travel
        • Special paraffin wax impregnation for longevity and stability
        • Inductance value of 4.3mH with a tight 2% tolerance
        • Impressive DCR of 0.45Ω with a 5% tolerance



        Product details

        Jantzen Audio 000-8205 | 4,3 mH | 0,45 Ω | 2% | 12 AWG | Wax Coil



        The Jantzen Audio 000-8205 Wax Coil redefines the standard for crossover components. This high-end, 4.3mH copper foil coil is designed to deliver precise audio signal inductance with minimal resistance. With an inductance accuracy within 2%, it ensures exceptional sound quality and consistency. The coil's 0.45Ω resistance is measured with a tolerance of 5%, providing low electrical impedance for cleaner, more dynamic audio. The coil is made from C11000 ETP copper foil, known for its high conductivity and certified by IACS. It is impregnated with a specially developed paraffin wax that encapsulates the coil, eliminating any air pockets and boosting temperature tolerance"€outperforming even natural waxes like beeswax. The wax also fortifies the coil against environmental factors, maintaining its integrity for decades. The 12 AWG coil features paper insulation, which combined with the wax, ensures absolute protection of the copper foil. The result is a crossover component that delivers on power handling, dynamic headroom, and a significant reduction in distortion. It is the perfect choice for audiophiles seeking to upgrade their speaker systems with components that offer both technical excellence and reliable performance over time.

        Toon meer

        Specificaties

        Artikelnummer
        000-8205
        EAN
        9502788913196
        Spoeltype
        Copper foil coils
        Inductie
        4.3 mH
        Gelijkstroomweerstand
        0.45 ohms
        Tolerantie
        2%
        Draaddiameter
        12 AWG
        Afmetingen Ø * H (mm)
        120 x 55

        Toon meer
