        Productomschrijving Markaudio PLUVIA-11 Gold Full-range Woofer

        The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



        Highlights

        • Synthetic rubber surround
        • Super-strength alloy
        • Improved bass handeling
        • Improved dust cap



        Product details

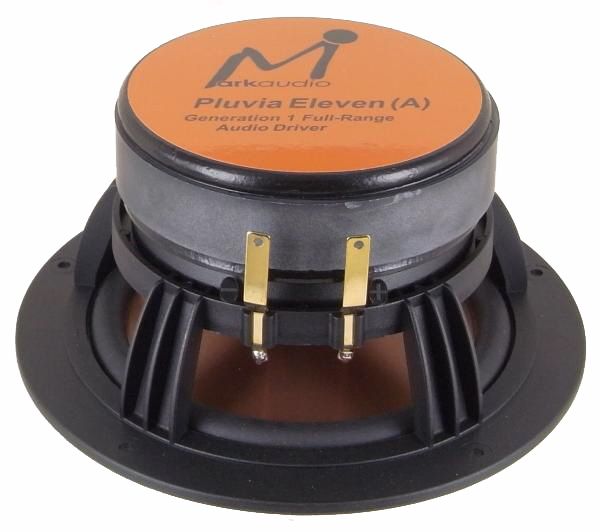

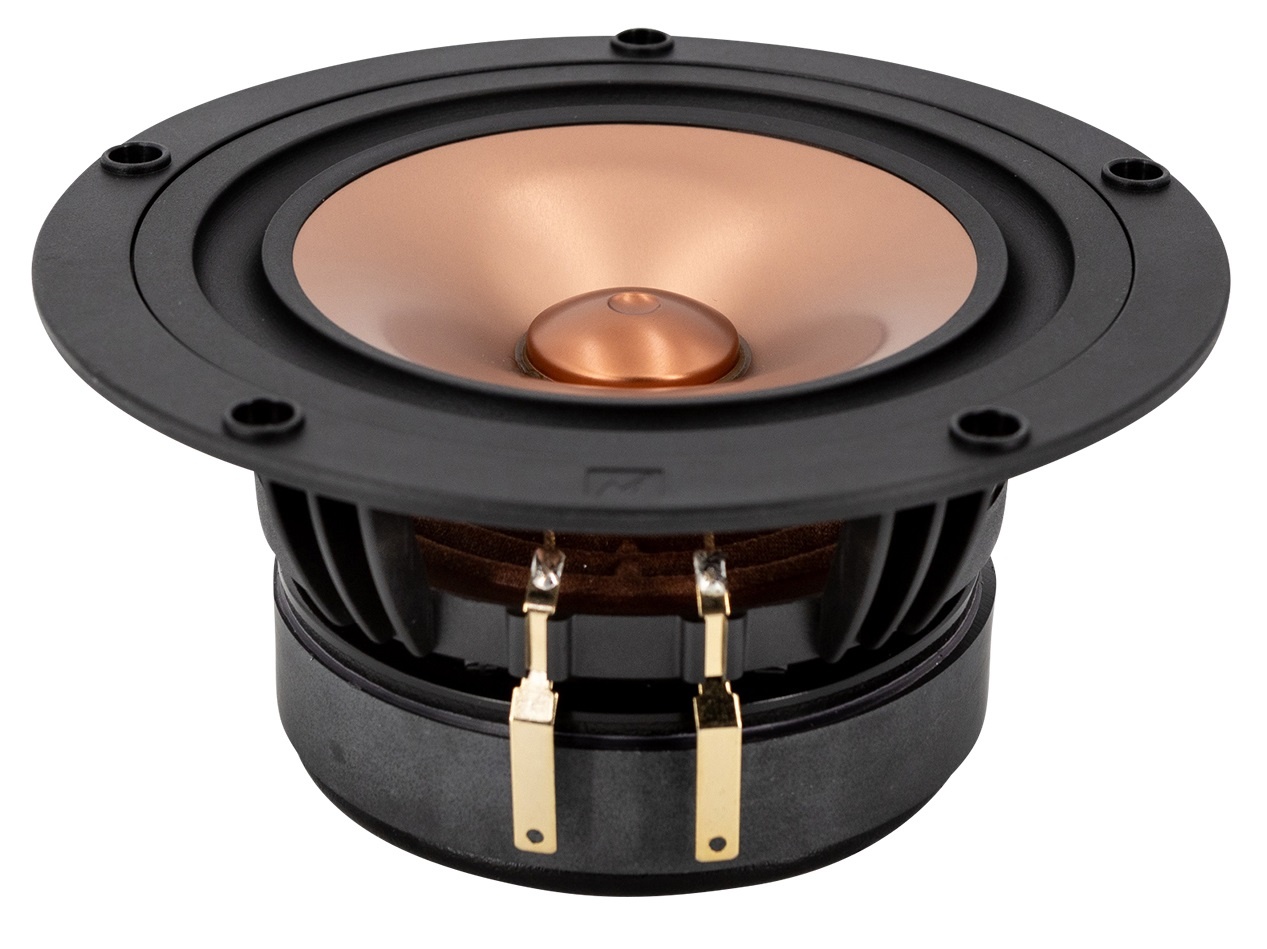

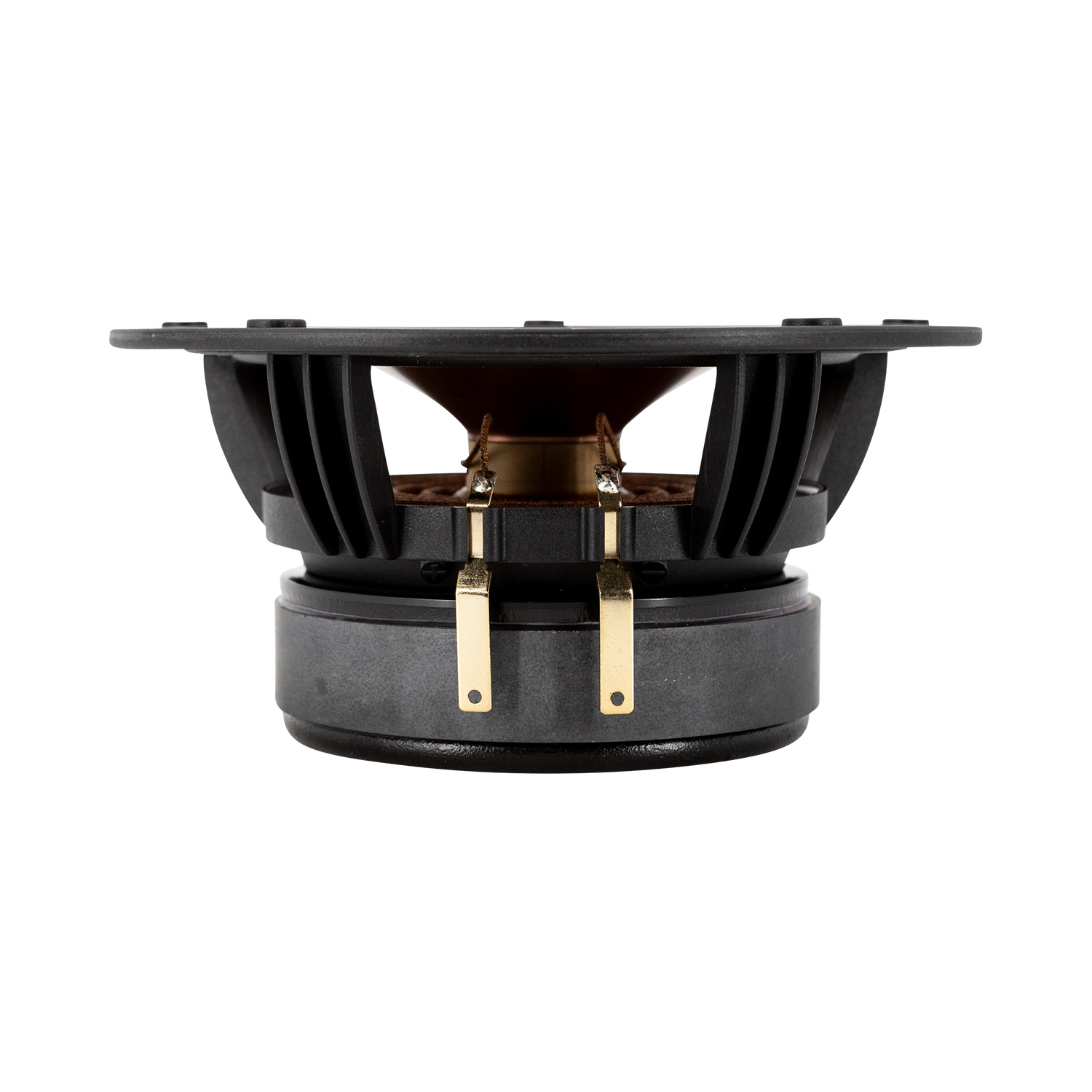

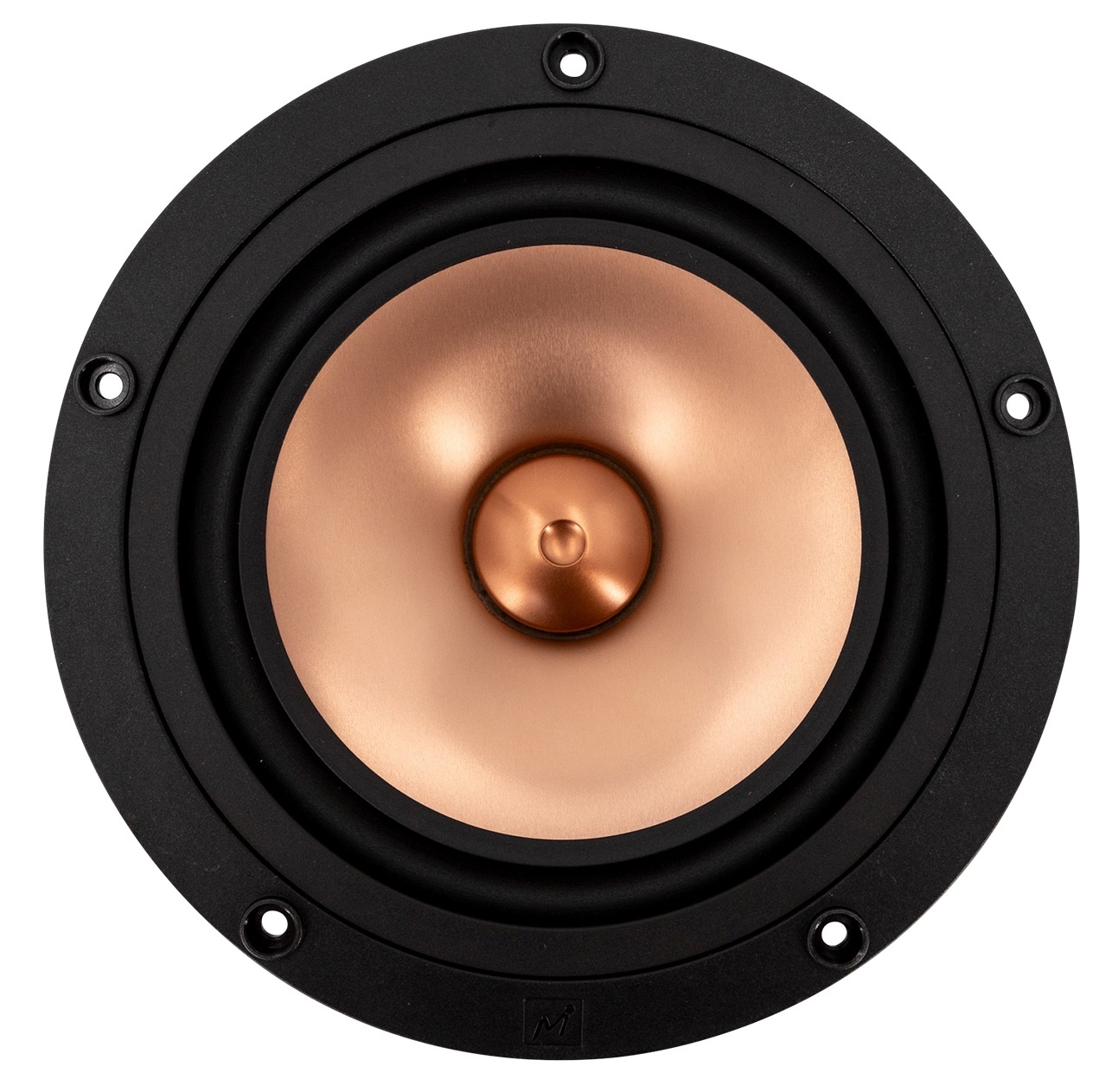

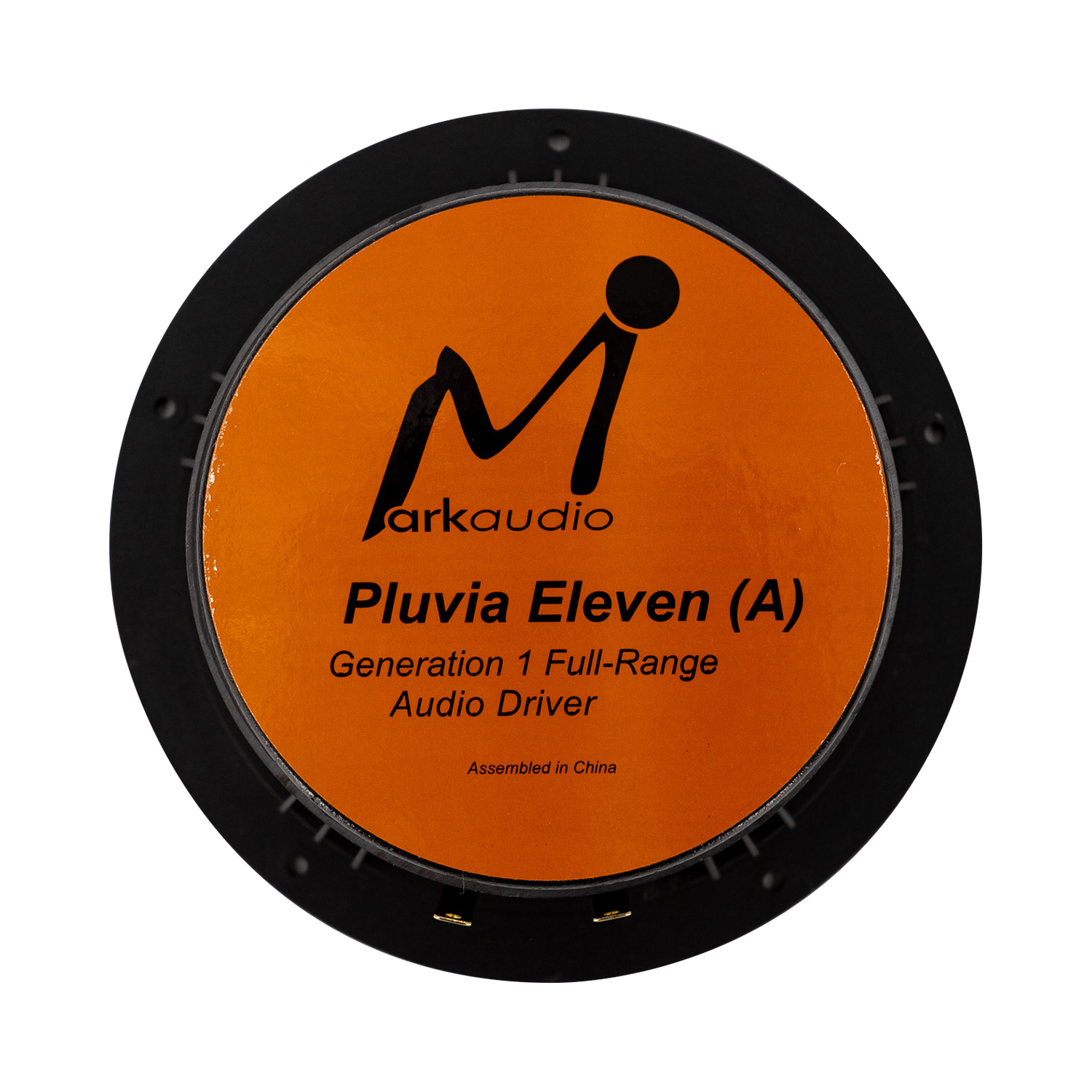

        Markaudio Pluvia-11 Gold 7” full Range Aluminium woofer



        The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



        The Pluvia 11 cone is an entirely new design from Mark Fenlon. It uses a new super-strength aerospace grade alloy designed to cope with high bending stress loads. The material thickness is increased by 50% over previous Markaudio designs, yet the profile remains shallow to increase dispersion. Two more processes have been added to the Multiform cone production sequence to increase Pluvia 11's operational low frequency load capacity.



        The all-new front suspension has a variable thickness geometry, increasing oscillatory stability by 30% over previous designs. The rear suspension (spider) has an operational surface area 25% larger than the Alpair 10 to cope with load demands of typical mid-bass units. However, the Pluvia 11’s high range has not been sacrificed. It outperforms the smaller Alpair 10 by reaching slightly higher frequencies with an improved spread on the high-range lift above 10kHz. Other design advances include the new “easy install” frame. This new-technology one-piece moulding utilises a GF30 glass fibre and resin mix. Pluvia 11’s frame is more rigid than previous designs, with a mounting depth of only 4.5mm, making both recessed and surface-mounting simple. Two new cone colours add visual interest. Along with the Pluvia 7, this new family of drivers will serve custom builders well into the future.



        For the first time in the history of traditional full-range driver design, users now have a genuine choice to go full-range without sacrificing bass handling, or use it as a wide-range mid-bass driver that allows simple filtering.



        The new Pluvia 11 is an excellent high-end and multi-purpose driver. It's also suitable for many computer, Home Theatre, TV, and commercial A/V applications.

        Toon meer

        Specificaties

        Artikelnummer
        PLUVIA-11 Gold
        EAN
        0696277268191
        Woofer series
        Markaudio Pluvia series
        Woofer type
        Full-range
        Nominale diameter
        7"
        Belastbaarheid (RMS)
        45 Watts
        Belastbaarheid (max)
        90 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88.1 dB
        Frequentierespons
        100 to 20,000 Hz
        Spreekspoeldiameter
        1"
        Gelijkstroomweerstand (Re)
        5.4 ohms
        Spreekspoelinductie (Le)
        0.68 mH
        Resonantiefrequentie (Fs)
        39.1 Hz
        Mechanische Q (Qms)
        1.80
        Elektrische Q (Qes)
        0.351
        Totale Q (Qts)
        0.293
        Bewegende massa (Mms)
        11.4 g
        Effectief oppervlak (Sd)
        109,359 cm²
        Krachtsfactor (BL)
        6.56 Tm
        Equivalentvolume (Vas)
        0.848 ft.³
        Maximale excursie (Xmax)
        7 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Glass-Fibre
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        6.77"
        Totale diepte
        3.15"
        Montagegatdiameter
        5.65"
        Bolt Circle Diameter
        6.22"
        # Bevestigingsgaten
        5
