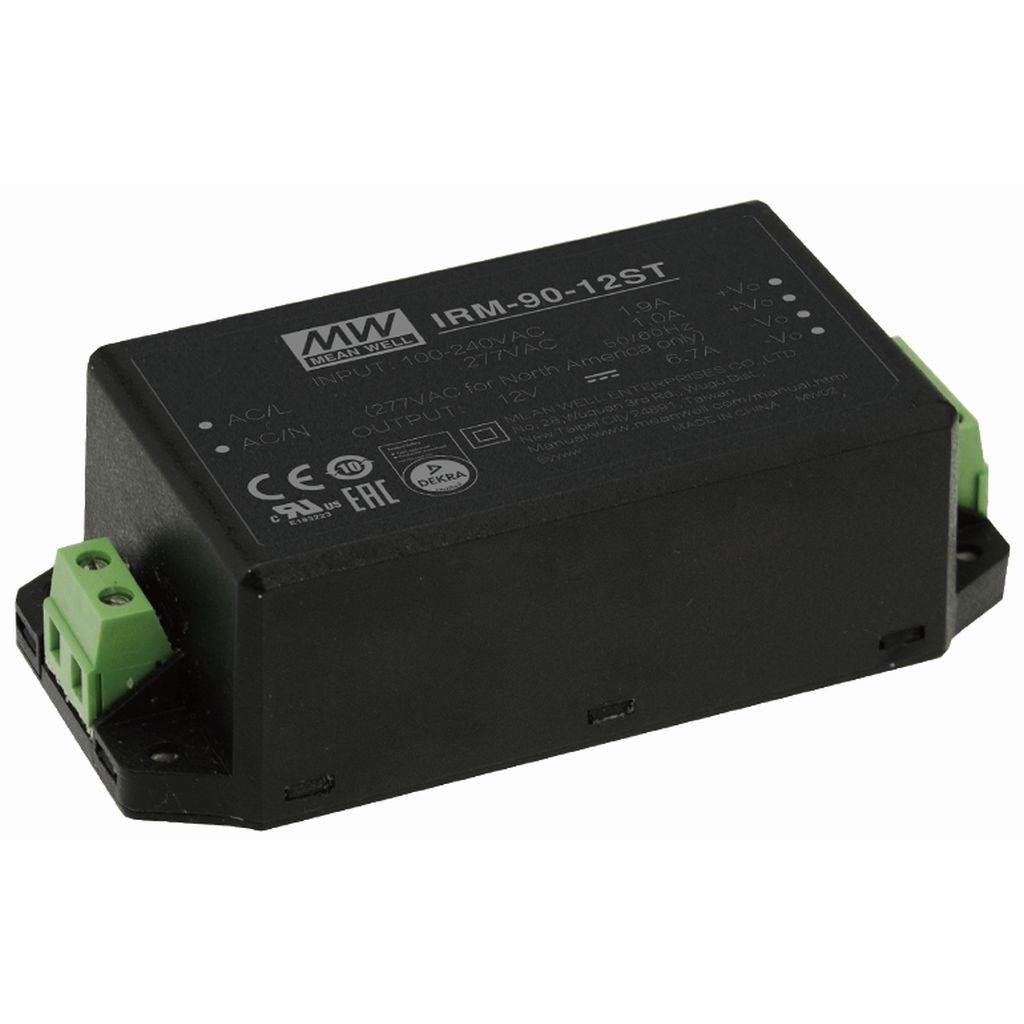

        IRM-90-12ST Switched Mode voedingsmodule with Screw Terminal

        Productomschrijving Mean Well IRM-90-12ST voedingsmodule

        The IRM-90-12ST is a 90W AC-DC power supply module from Mean Well. It has a single output of 12Vdc at 7.37A. The power supply is encased in a miniature, screw terminal style package. It is suitable for a variety of applications, including Internet of Things (IoT), handheld instruments, communication equipment, and household appliances.



        Highlights

        • Output voltage: 12Vdc
        • Output current: 7.37A
        • Input voltage range: 85-264VAC
        • Efficiency: up to 90%
        • Operating temperature: -40 to 70°C
        • Protection features: overvoltage, overcurrent, undervoltage, short circuit, and thermal shutdown



        Product details

        Mean Well IRM-90-12ST Switched Mode Power Supply



        The IRM-90-12ST is a 90W miniature AC/DC PCB-mount module type power supply that is designed to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. It has a universal input voltage range of 80Vac to 305Vac and a no-load power consumption of 0.21W. It is cooled by free air convection and has a 12V output and a maximum output current of 6.7A.



        The IRM series features onboard modules that offer a compact size and low load power consumption at standby mode. Extremely low (<0.1W / <0.075W) no-load power consumption allows designers to easily conform to the requirements of the Energy-related Products (ErP) directive and EISA.

        Toon meer

        Specificaties

        Artikelnummer
        IRM-90-12ST
        EAN
        4711287424231
        Max Output Power
        99W
        Output Voltage (V)
        12V
        Output Current (A)
        6.7A
        Max Output current (A)
        7.37A
        Efficiency
        0.92
        Ripple & noise (max.)
        120mVp-p
        Mains voltage input
        80 ~ 305VAC - 113 ~ 431VDC
        Protection
        Overload / Over Voltage / Over temperature
        Tye of cooling
        Free air convection
        Connector type
        Screw terminal style
        Stand-by consumption
        < 0.3 W
        Dimensions (D x W x H)
        109*52*33.5mm
