A reliable, fully tested power supply for larger power amplifier boards. Specially chosen for its low noise characteristics. AC voltage input range for 220V/230V operation. Output voltage of 27VDC.
Highlights
- Protection: Short circuit / Overload / Over voltage
- Built-in active PFC function, PF>0,95
- Cooling by free air convection
- LED indicator for power on
- High operating temperature up to 70°C
- Withstand 5G vibrations
- High efficiency,long life & high reliability
- Low Profile 30mm
Product details

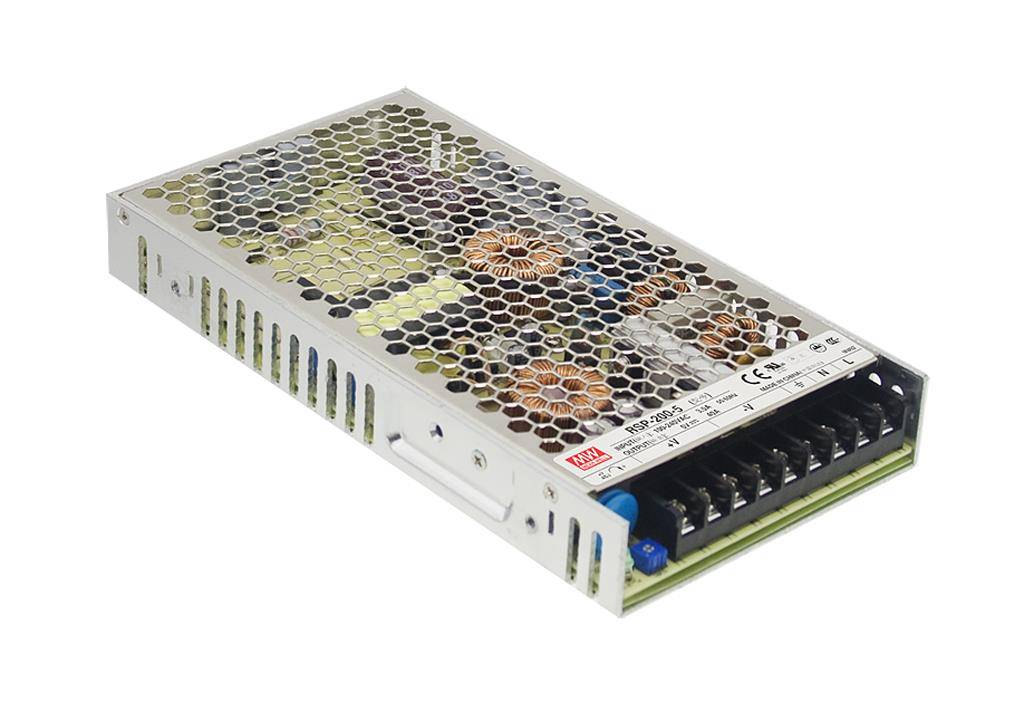

RSP-200-27 27VDC 7.5A 200W Regulated Switching Power Supply
This power supply is the best choice for reliable, fully tested power output when used with larger power amplifier board. Short-circuit, over-load, over-voltage protection is built-in. Cooling is accomplished by air convection.LED indicator for power-on indication. Barrier strip connections. This power supply is chosen for its very low noise characteristics. Dimensions: 215mm L* 115mm W* 30mm H.
Product Specifications
Type | RSP-200-27 |
AC input voltage | 220V/230VAC |
DC output voltage | 27VDC |
Ampere | 7.5A |
Wattage | 202.5W |
