Highlights
- True RMS measuring method
- Protected against dust and water according to IP67 when test jacks are covered
- Autoranging for faster measurements
- Resolution: 4,000 digits
- Additional bar graph display
- Voltage measurement: up to DC/˜ 1,000 V
- Current measurement: up to DC/˜ 10 A
- Frequency measurement: up to 10 MHz
- Resistance measurement: up to 40 MΩ
- Capacitance measurement: up to 40 mF
- Temperature measurement: -20 °C to +760 °C
- Acoustic continuity test
- Diode test
- Data hold (storage of measured value)
- Peak hold
- Recording of max. value and min. value
- LCD with selectable backlight
- Automatic switch-off
- Overload protection
- Supplied with test leads and protective bag
Product details

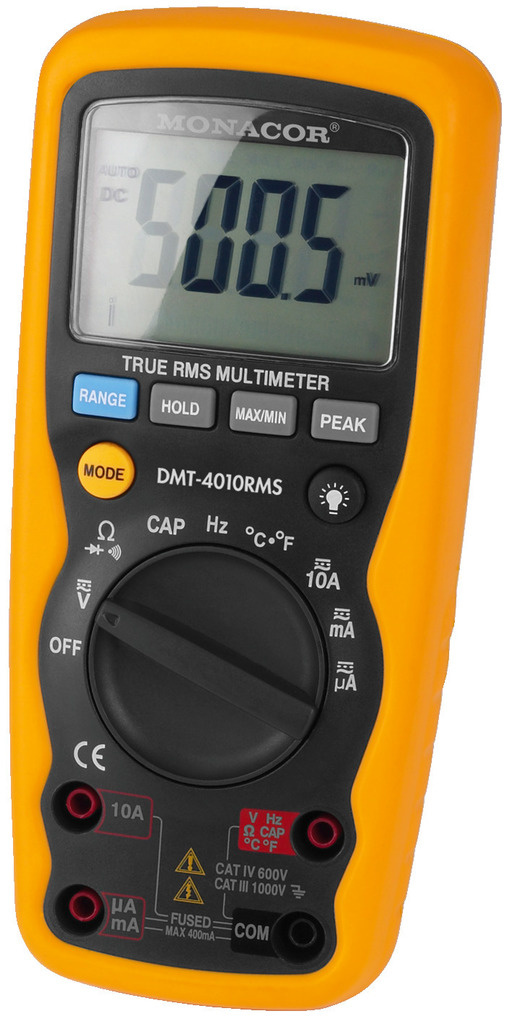

Monacor DMT-4010RMS True RMS & Digital Multimeter For Pro Applications
Measuring ranges:
Temperature: | 1 range | -20 °C to +760 °C /-4 °F to +1400 °F - type K sensor |
Capacitance: | 8 ranges | 4 nF-40 mF |
Frequency: | 4 ranges | 4 kHz-10 MHz |
Resistance: | 6 ranges | 400 Ω-40 MΩ |
Current: | 5 ranges | DC 400 µA-10 A ˜ 400 µA-10 A |
Voltage: | 5 ranges | DC 400 mV-1,000 V ˜ 400 mV-1,000 V |
Special features: peak, min/max, hold, IP67
Specifications: Weight: 430 g • Power supply: 9 V battery (not supplied) • Dimensions: 83 x 180 x 54 mm incl. rubber holster • Admiss. ambient temp.: -10 °C to +50 °C • Display: 21 mm LCD, 3¾ digits, bar graph display • Range selection automatic/manual
