Highlights
- With mirror scale
- All-plastic housing
- Quality class 2
- Zero-point correction
- Prewired for illumination
- Measuring range: 0.1 mA
Product details

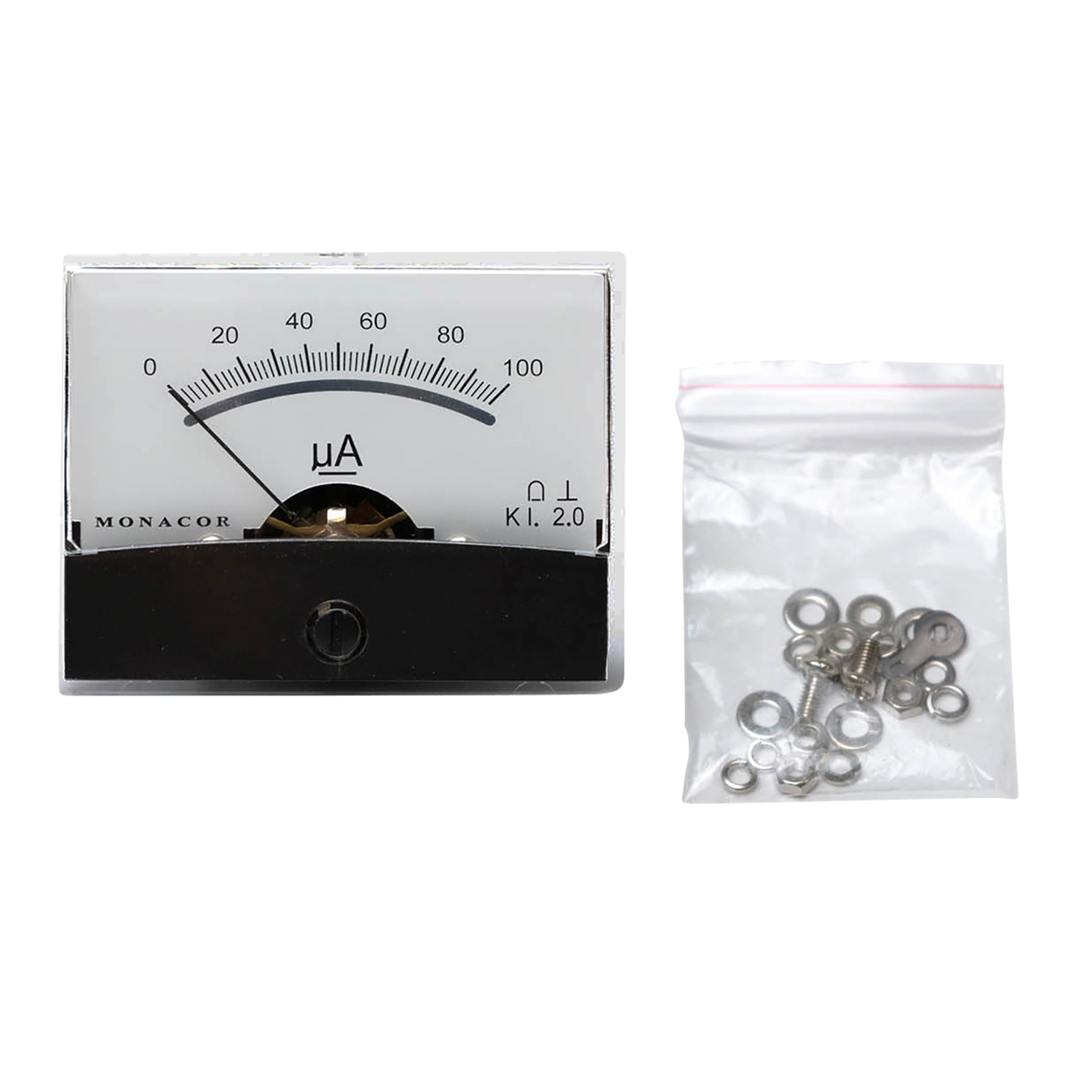

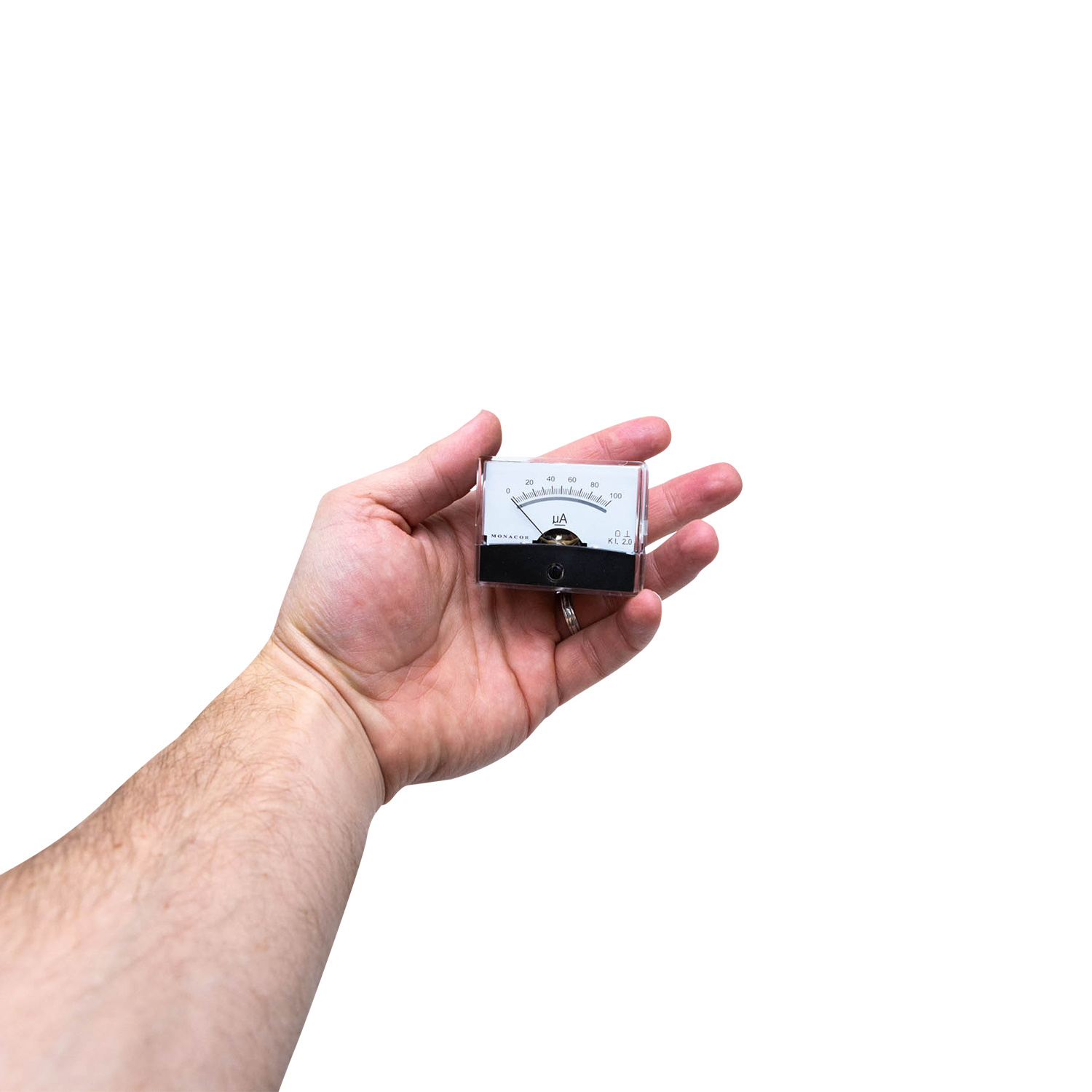

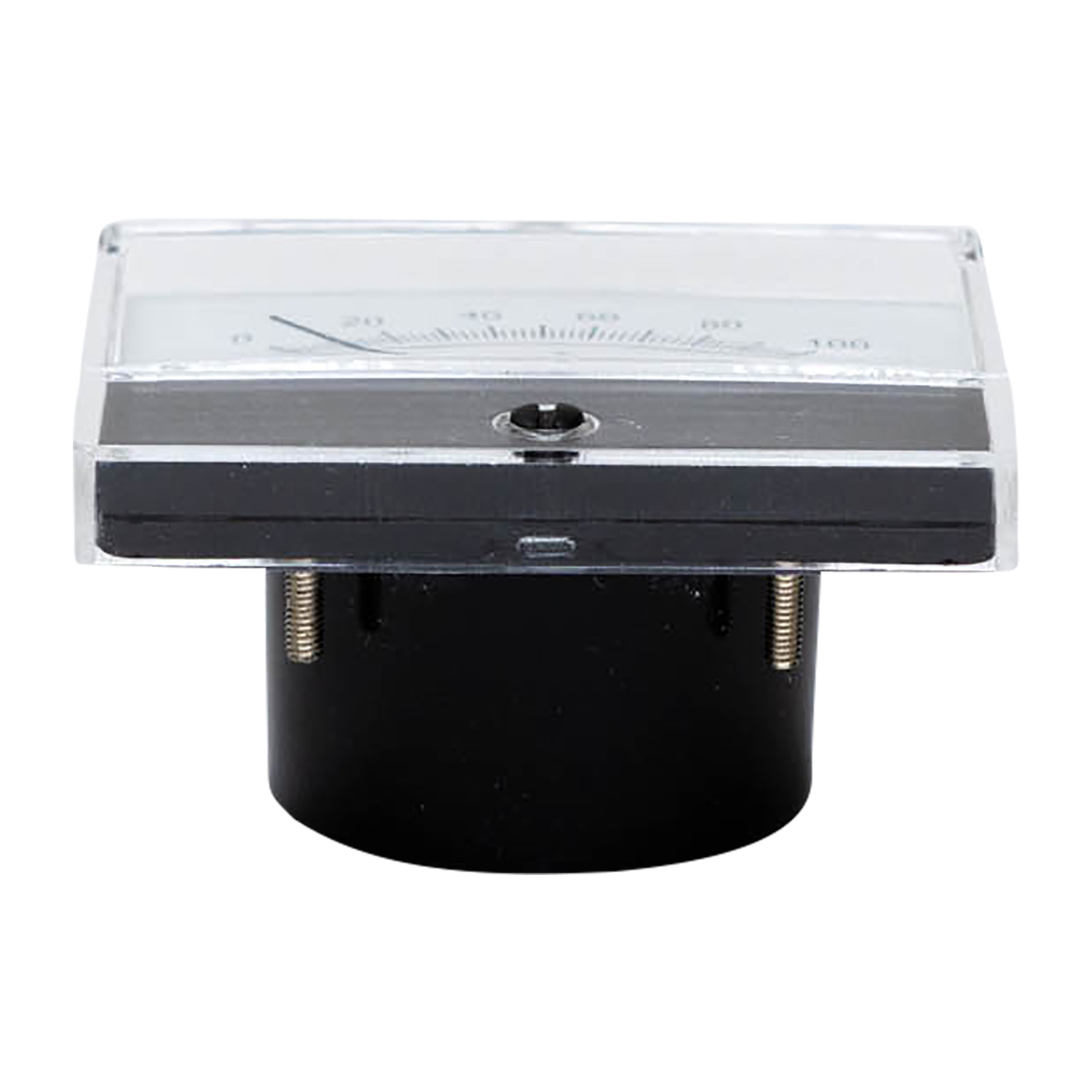

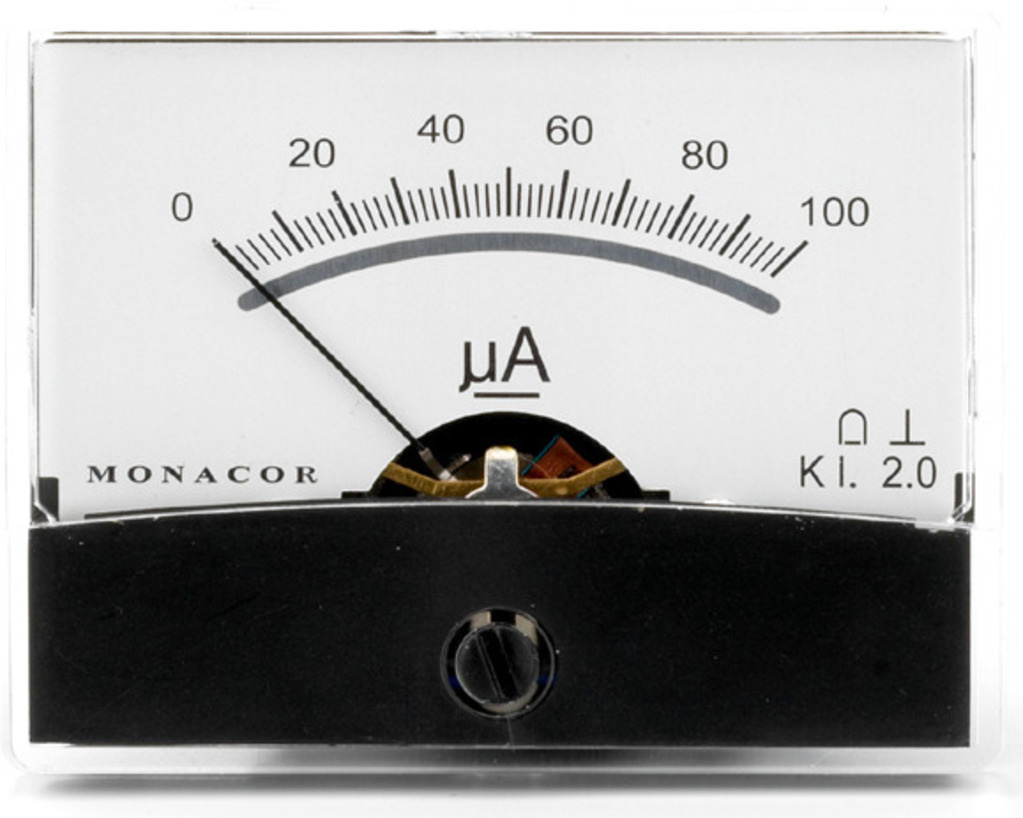

Monacor PM-2/100UA Panel Meter With VU Lettering
With mirror scale, all-plastic housing, quality class 2, zero-point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.
Specifications: Measuring range: 100 µA • Internal resistance: 1.0 kΩ • Dimensions display: 60.3 x 46.3 mm • Mounting cutout: Ø 37.5 mm • Mounting depth: 23 mm
