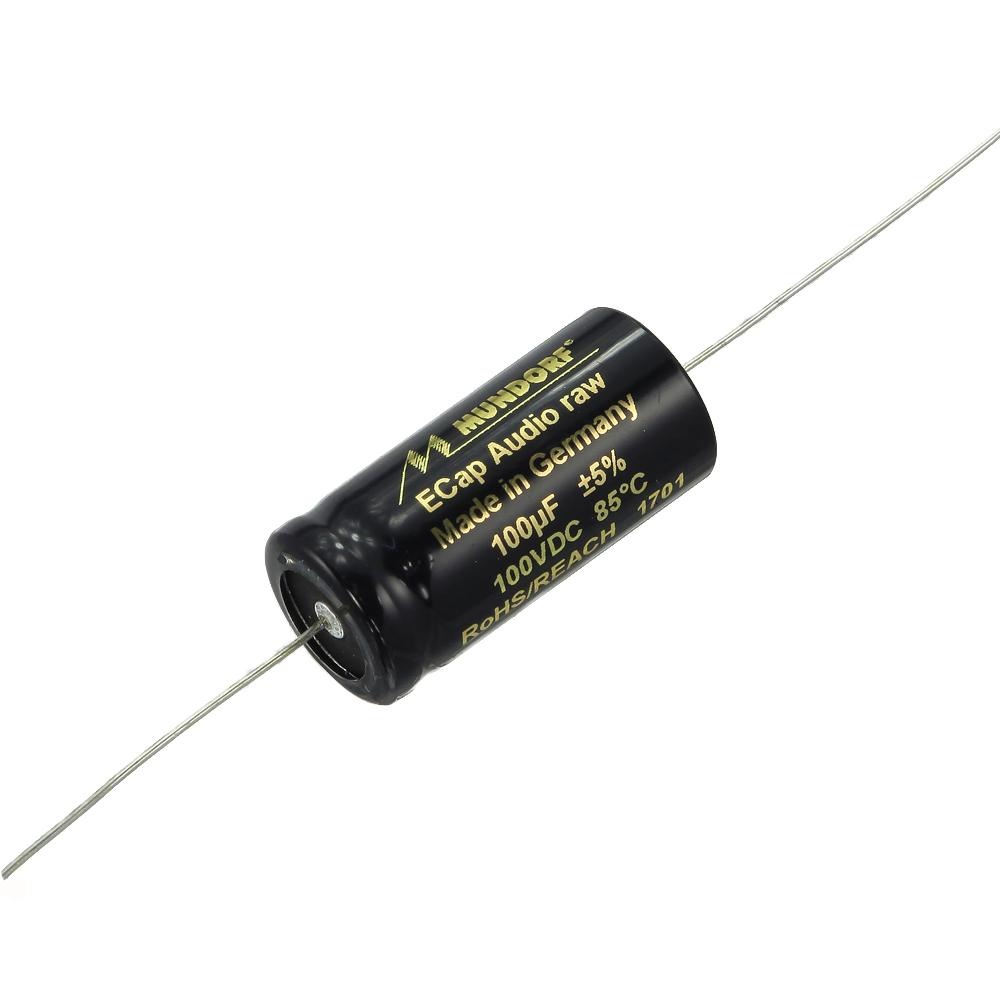

      ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Elektrolytische condensatoren

      Mundorf ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Elektrolytische condensatoren

      €4,95

      10+ Op voorraad

      Mundorf ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Elektrolytische condensatoren

      3 reviews
      4 van 5
      3 reviews
      5 sterren
      67%
      4 sterren
      0%
      3 sterren
      33%
      2 sterren
      0%
      1 ster
      0%
      Bekijk alle reviews
      Merk: Mundorf
      € 4,95 10+ Op voorraad
      • -5% Bestel 4 voor slechts € 4,70 per stuk
      • -10% Bestel 10 voor slechts € 4,46 per stuk
      • Gratis verzending vanaf € 99
      • Nu besteld, dinsdag bezorgd
      • Ten minste twee jaar garantie
      • 45 dagen bedenktijd voor retourneren
      • Klantbeoordeling:
      Zakelijke offerteaanvraag

      Productomschrijving Mundorf ECAP100-100 | 100 µF | 5% | 100 V

      Highlights

      • Manufactured in Germany
      • Temperature range: -40°C/ -40°F to 85°C/+185°F
      • Service life: [UR · R~] 3000 hours at +85°C/+185°F
      • Loss angle: tan ∂ = 0.050@1kHz



      Product details

      Mundorf ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Electrolytic Non-Polarized Cap



      The bipolar electrolytic capacitors of the ECap AC Audio Coupling & Signal Cap RAW series have foils with surfaces which are roughened by a special etching process, enlarging the surface. As the capacity of capacitors is proportional to their surface, this process provides the smallest and cheapest Mundorf audio capacitors. However, this process also weakens the sound quality comparing to non-etched versions.



      Specifications: Value: 100 µF • Rated: 35 / 100 VAC / VDC • Tolerance: ±5% • Dimensions Body: 18 mm Dia. x 39 mm L. • Dimensions Wire: 0.8 mm Dia. x 40 mm L.

      Specificaties

      Artikelnummer
      ECAP100-100
      EAN
      8785256837755
      Capaciteit (µF)
      100 µF
      Maximale spanning
      100 V
      Tolerantie
      ±5%
      Afmetingen: Ø * L (mm)
      18 x 39
      Aansluitingsstijl
      Axial

      Toon meer

      5 van 5
      Accurate to 1%
      Door Mats on 24 Januari 2024
      5 van 5
      -
      Door Istvan on 15 Januari 2024
