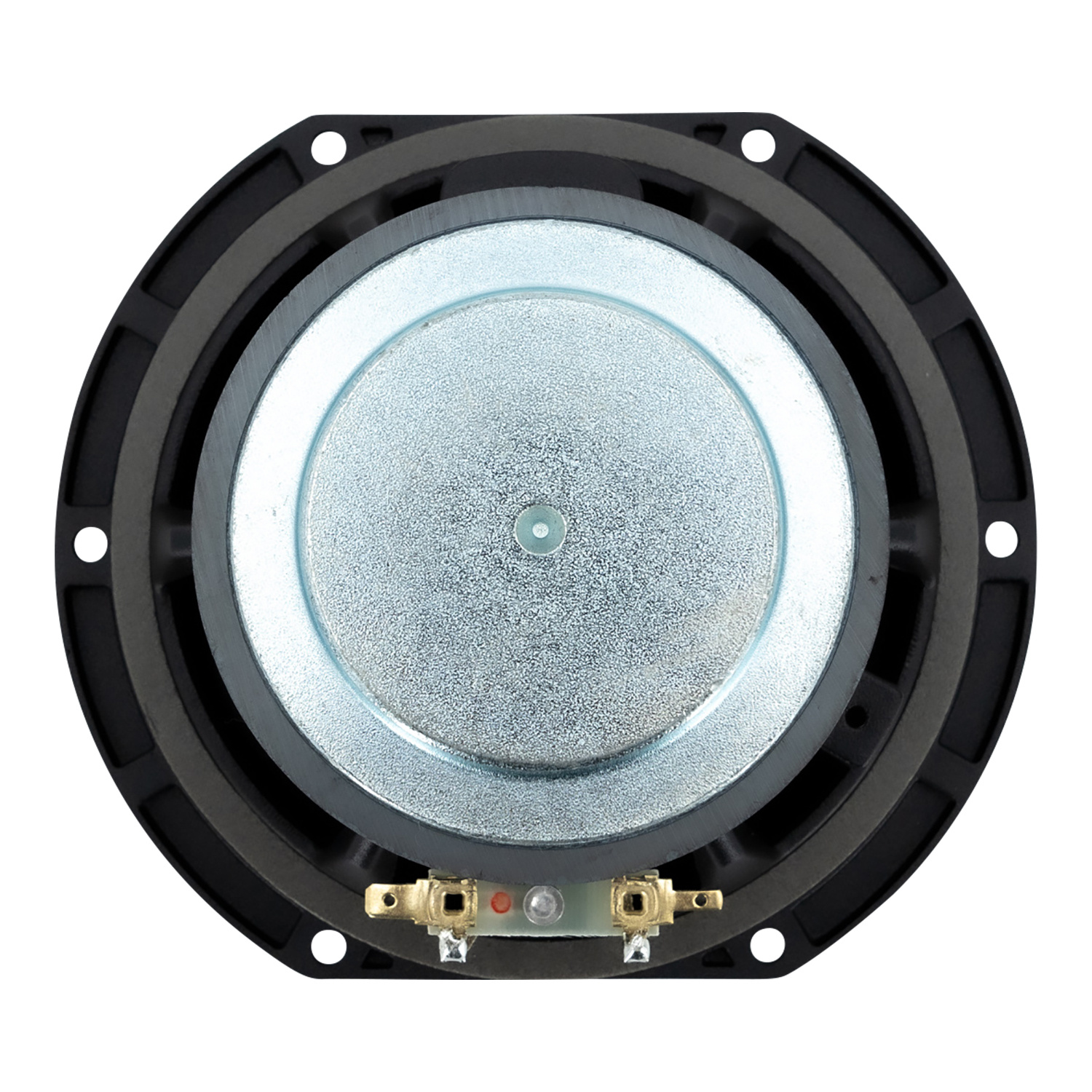

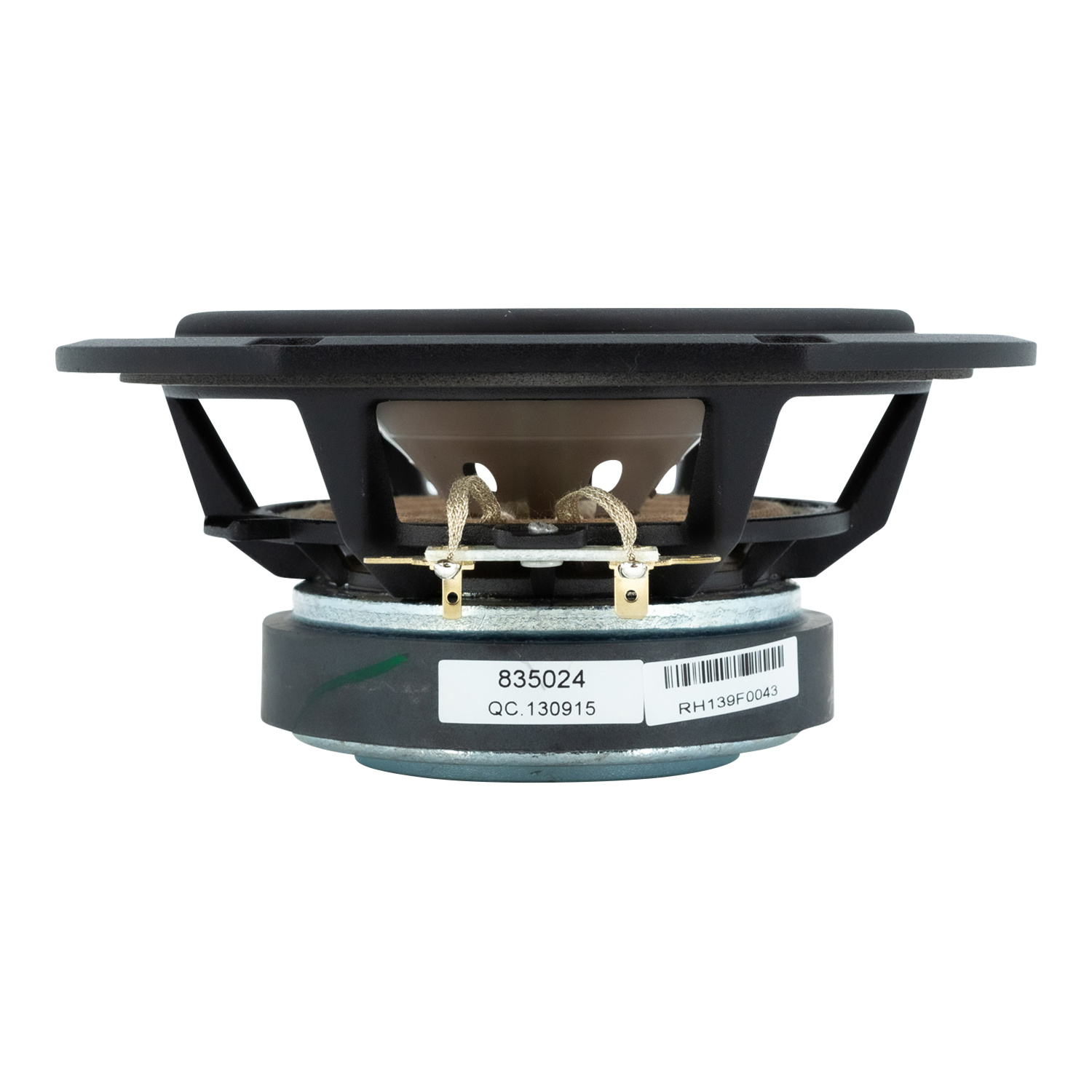

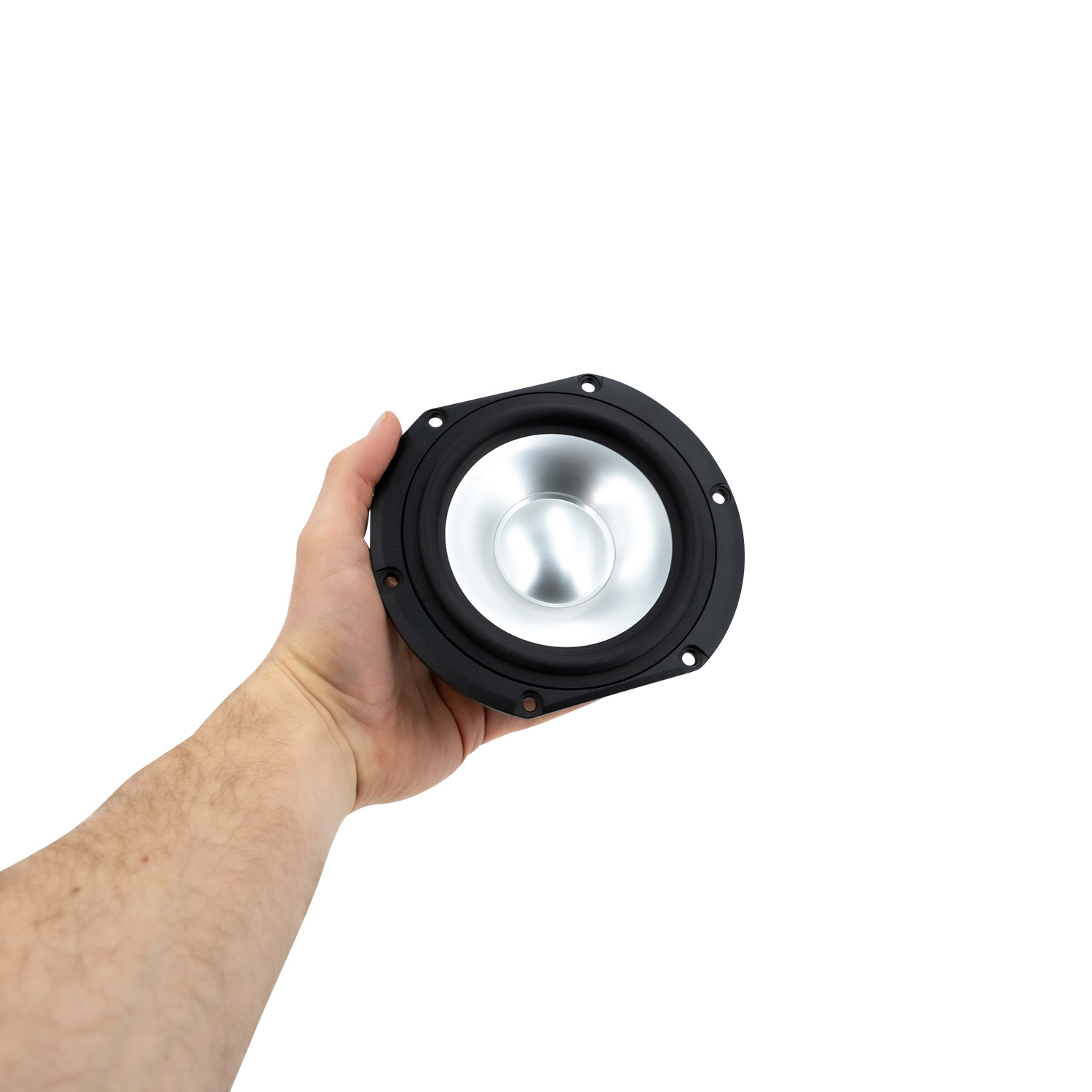

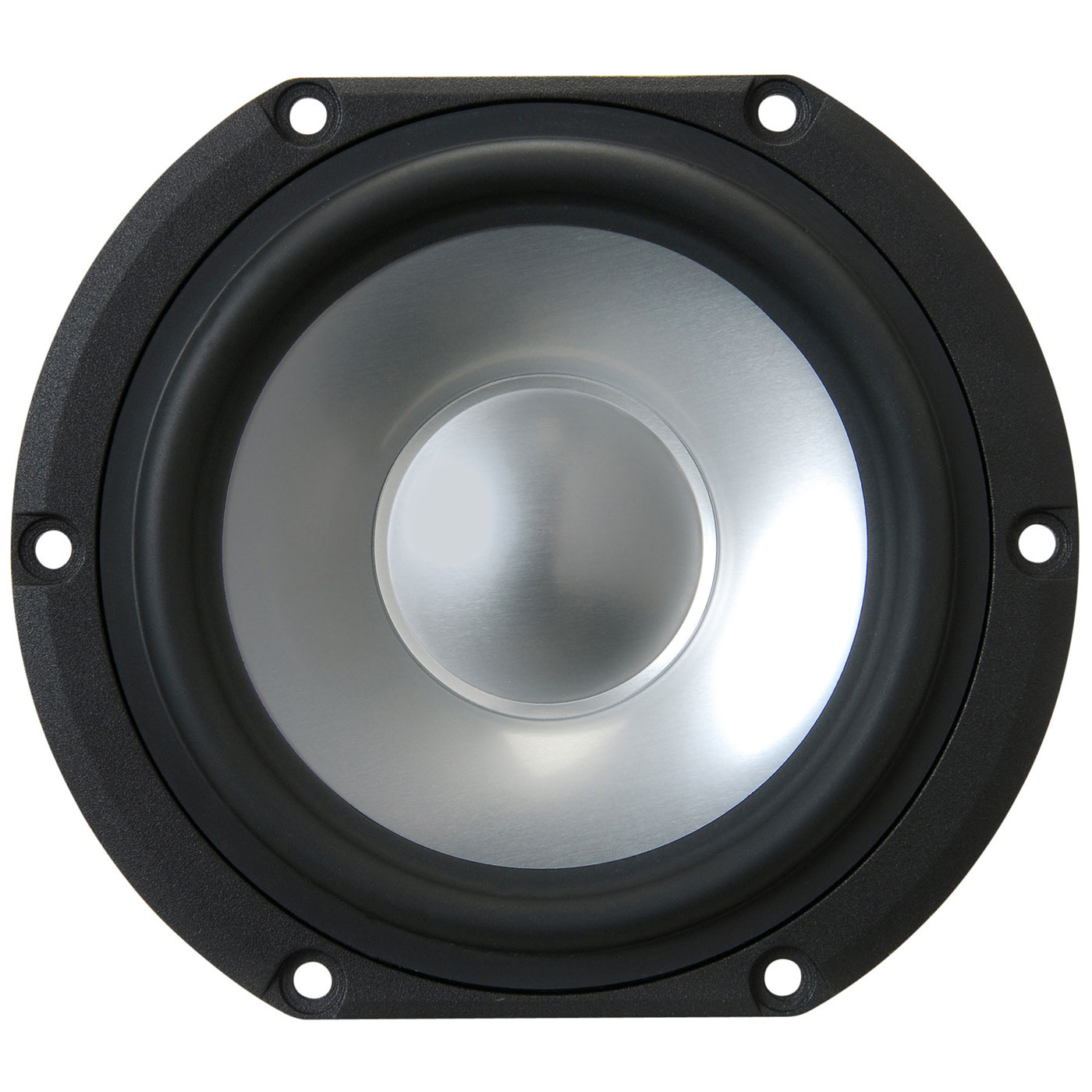

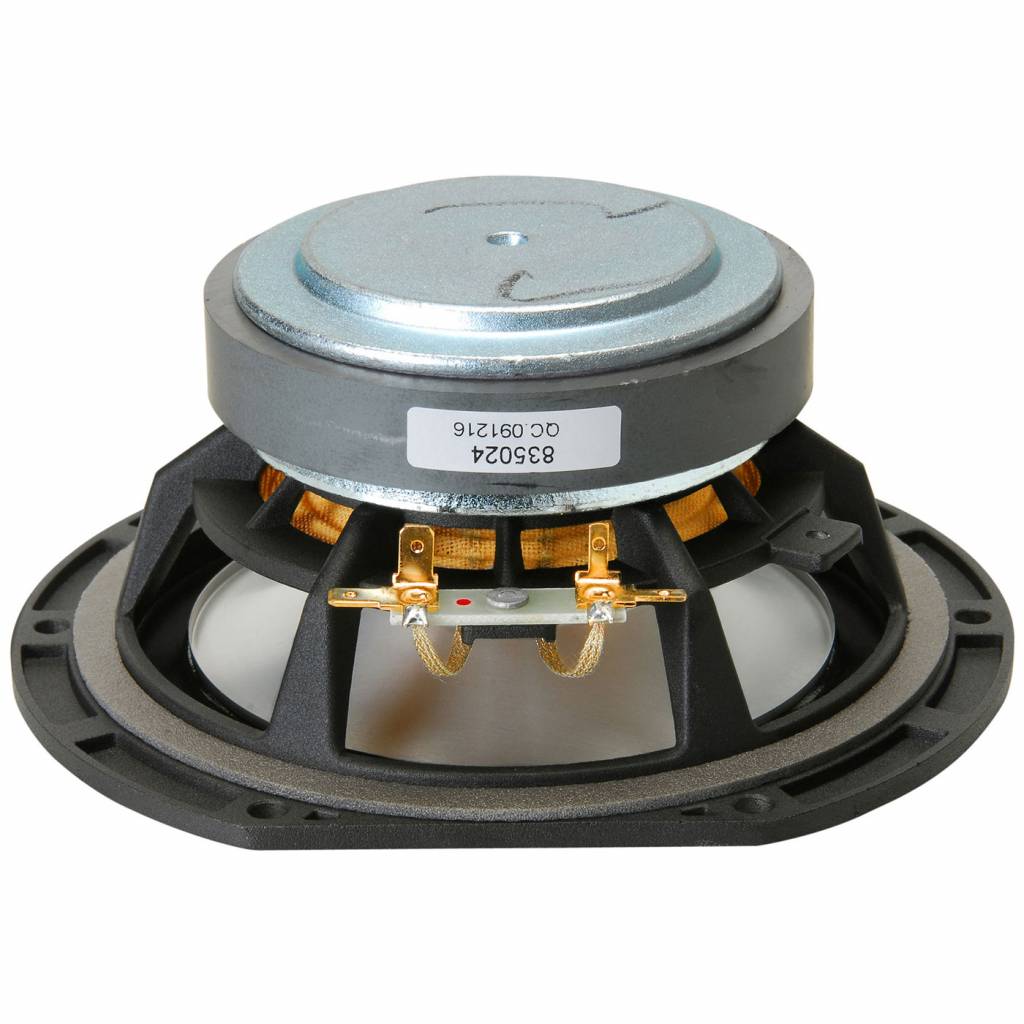

        HDS-P835024 Bass-midwoofer

        Peerless by Tymphany HDS-P835024 Bass-midwoofer

        €59,95

        1 Op voorraad

        Peerless by Tymphany HDS-P835024 Bass-midwoofer

        1 reviews
        4 van 5
        1 reviews
        5 sterren
        0%
        4 sterren
        100%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 49,55€ 59,95 1 Op voorraad
        • -5% Bestel 4 voor slechts € 56,95 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving Peerless by Tymphany HDS-P835024 Bass-midwoofer

        The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.



        Highlights

        • Truncated cast aluminum frame
        • Aluminum cone with half-roll rubber surround
        • Long-throw voice coil
        • Shorting rings for reduced distortion
        • Under-spider and voice coil ventilation



        Product details

        Peerless by Tymphany HDS-P835024 5-1/4" Aluminum Cone HDS Woofer



        This 5.25 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is aluminium, offering a unique visual and acoustic experience.

        Toon meer

        Specificaties

        Artikelnummer
        HDS-P835024
        EAN
        0844632083990
        Woofer series
        Peerless by Tymphany HDS series
        Woofer type
        Midwoofer
        Nominale diameter
        5-1/4"
        Belastbaarheid (RMS)
        30 Watts
        Belastbaarheid (max)
        60 Watts
        Impedantie (Z)
        8 Ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.1 dB
        Frequentierespons
        60 to 5,000Hz
        Spreekspoeldiameter
        1"
        Gelijkstroomweerstand (Re)
        5.9 ohms
        Spreekspoelinductie (Le)
        0.24 mH
        Resonantiefrequentie (Fs)
        72 Hz
        Mechanische Q (Qms)
        3.18
        Elektrische Q (Qes)
        0.82
        Totale Q (Qts)
        0.65
        Bewegende massa (Mms)
        10.6g
        Compliantie van de ophanging (Cms)
        0.46 mm/N
        Effectief oppervlak (Sd)
        91.6 cm²
        Krachtsfactor (BL)
        5.88 Tm
        Equivalentvolume (Vas)
        0.19 ft.³
        Maximale excursie (Xmax)
        3.5 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        6"
        Totale diepte
        2.77"
        Montagegatdiameter
        4.75"
        # Bevestigingsgaten
        6
        Gesloten volume
        0.24 ft.³
        Gesloten F3
        95 Hz
        Gepoort volume
        0.49 ft.³
        Gepoort F3
        48 Hz
