        SB12NRXF25-8 Norex Bass-midwoofer

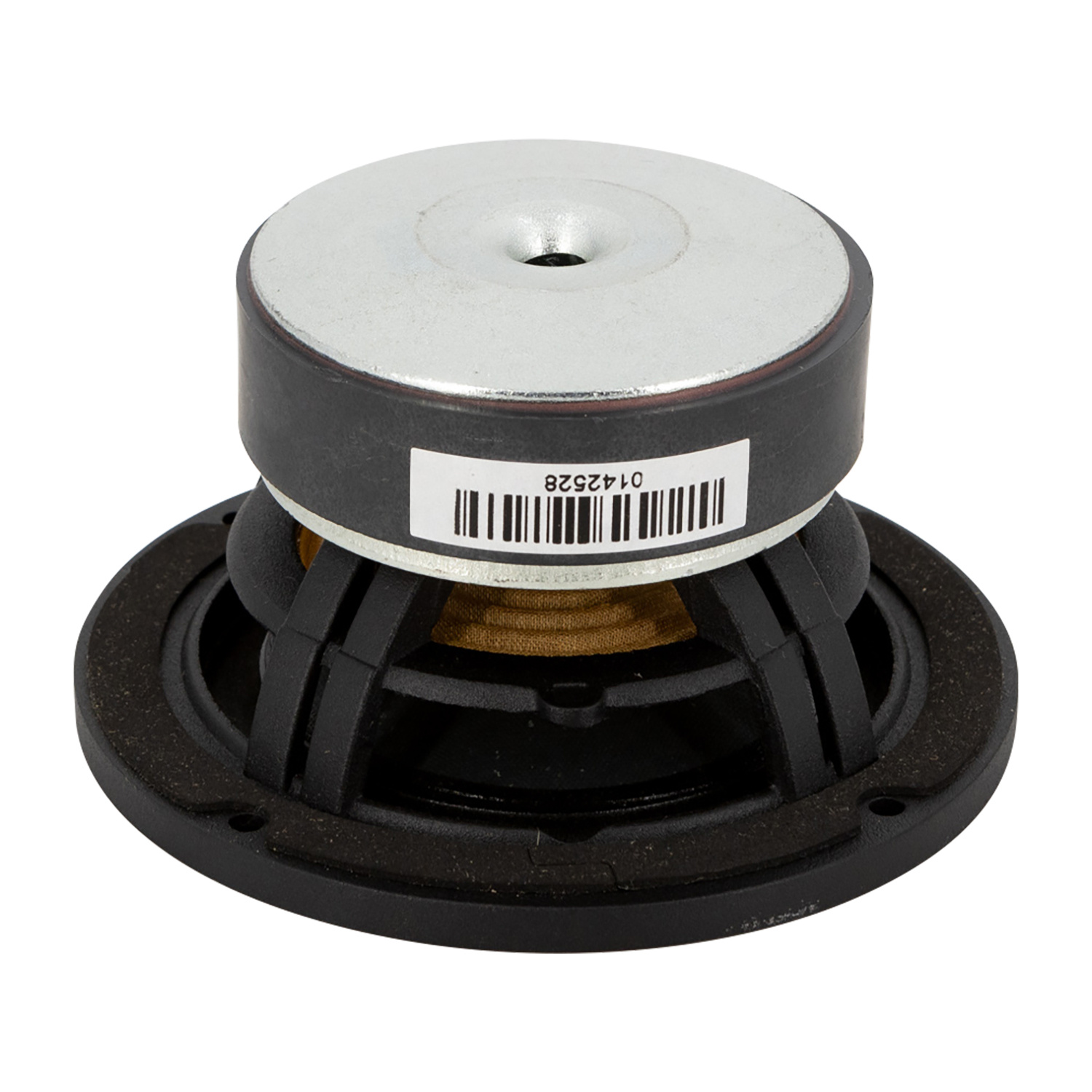

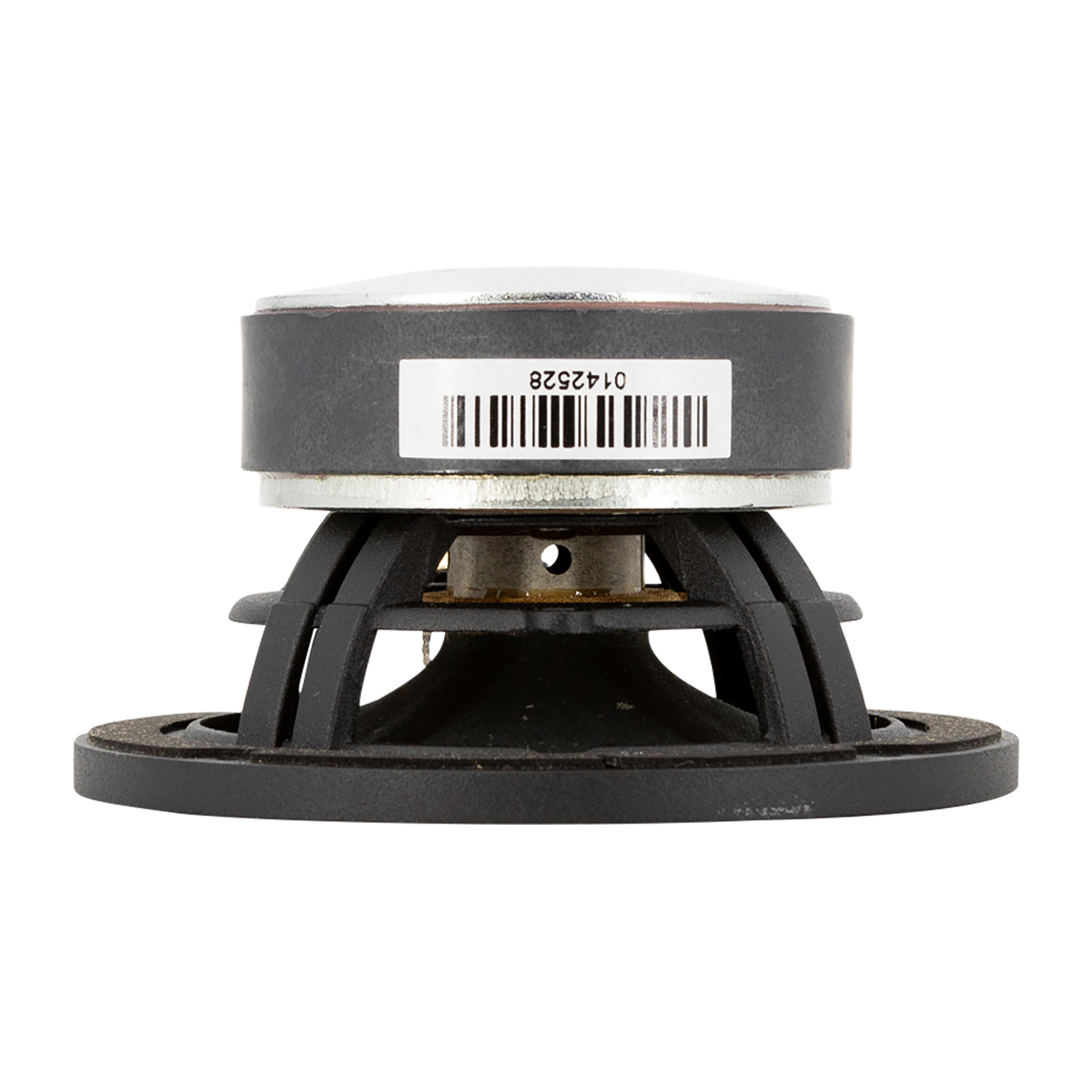

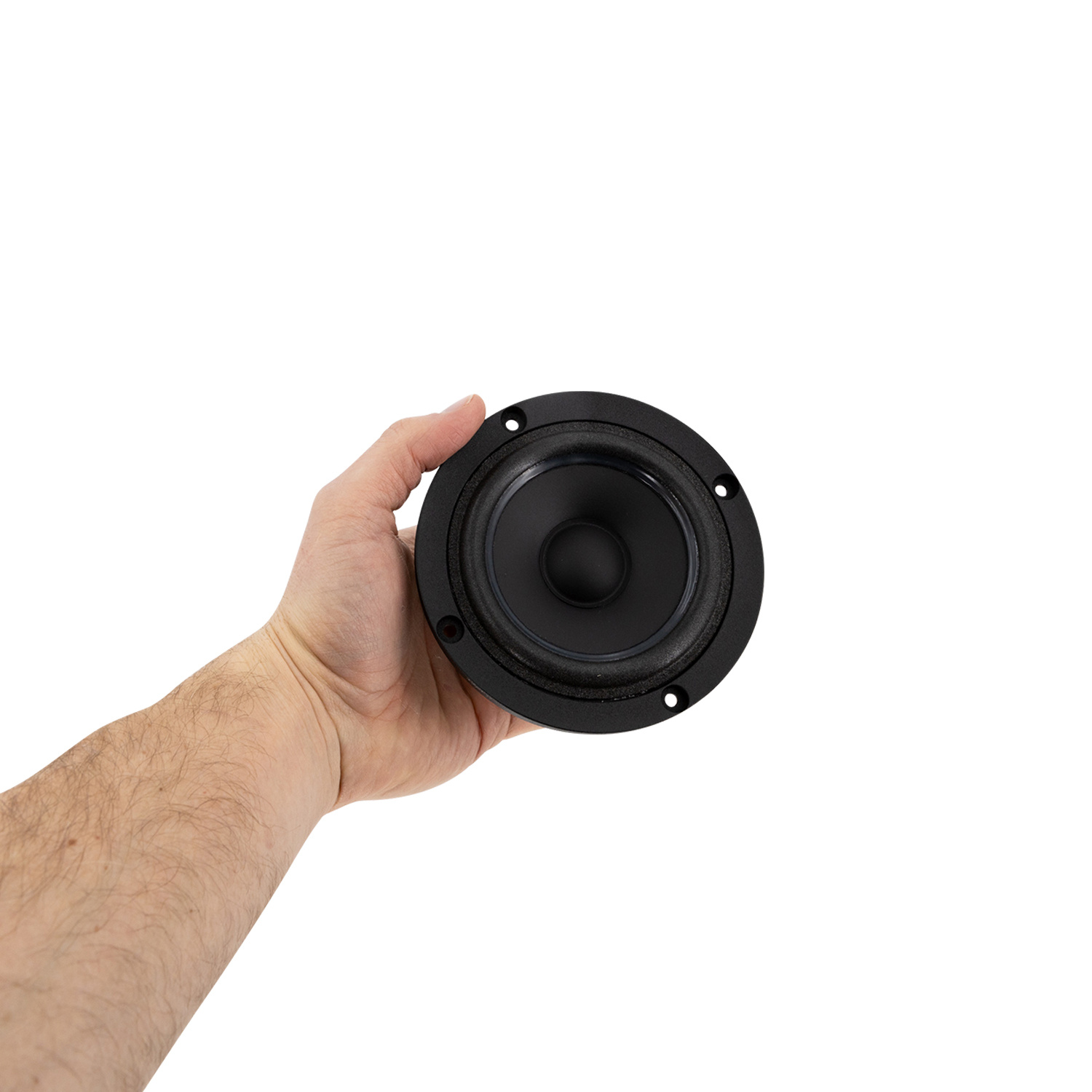

        SB Acoustics SB12NRXF25-8 Norex Bass-midwoofer

        €62,45

        4 Op voorraad

        SB Acoustics SB12NRXF25-8 Norex Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 51,61€ 62,45 4 Op voorraad
        • -5% Bestel 4 voor slechts € 59,33 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Voor- en nadelen

        Volgens onze specialisten
        • It is a good choice for bookshelf speakers, satellite speakers, and subwoofers

        Productomschrijving SB Acoustics SB12NRXF25-8 Bass-midwoofer

        The SB12NRXF25-8 is a 4-inch full-range driver from SB Acoustics. It features a proprietary cone material made from natural fibers, a foam surround, a vented cast aluminum chassis, and a CCAW voice coil. The driver has a nominal impedance of 8 ohms and a sensitivity of 87 dB. It is rated for a maximum power handling of 30 watts.



        Highlights

        • Proprietary cone material with natural fibres made in-house
        • Foam surround for maximum transparency and midrange resolution
        • Vented pole piece for reduced compression
        • Vented cast aluminium chassis for optimum strength and low compression
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Non-conducting fibre glass coil former for minimum damping
        • Shorting ring in motor system for reduced distortion



        Product details

        SB Acoustics SB12NRXF25-8 Norex Bass-midwoofer 8 ohm



        The SB12NRXF25-8 is a well-rounded 4-inch, 8 ohm, full-range driver that is capable of delivering clear, accurate sound in a variety of applications. It is a good choice for bookshelf speakers, satellite speakers, and subwoofers. The proprietary cone material is made from a blend of natural fibers that is said to provide a more natural and balanced sound than traditional paper cones.



        The foam surround is designed to provide a smooth and accurate response in the midrange frequencies. The vented cast aluminum chassis helps to dissipate heat and reduce distortion. The CCAW voice coil is lightweight and provides good power handling. The long life silver lead wires are resistant to corrosion and oxidation. The non-conducting fiberglass coil former helps to reduce noise and distortion. The shorting ring in the motor system helps to reduce distortion at high frequencies.

        Toon meer

        Specificaties

        Artikelnummer
        SB12NRXF25-8
        EAN
        8785256847921
        Woofer type
        Bass-midwoofer
        Nominale diameter
        4 inch
        Belastbaarheid (max)
        30 Watt
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        85 dB
        Frequentierespons
        100-2000 Hz
        Spreekspoeldiameter
        25.4 mm
        Gewicht magneet
        0.40 kg
        Gelijkstroomweerstand (Re)
        6.4 Ω
        Spreekspoelinductie (Le)
        0.34 mH
        Resonantiefrequentie (Fs)
        63 Hz
        Mechanische Q (Qms)
        5.4
        Elektrische Q (Qes)
        0.46
        Totale Q (Qts)
        0.42
        Bewegende massa (Mms)
        5.5 g
        Effectief oppervlak (Sd)
        50 cm2
        Equivalentvolume (Vas)
        4.2 liters
        Driver's Mechanical Losses (Rms)
        0.4 kg/s
        Totale buitendiameter
        123 mm
        Totale diepte
        69.8 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        4.3 mm

        Toon meer
