        SB15MFC30-4 Polypropylene Bass-midwoofer

        SB Acoustics SB15MFC30-4 Polypropylene Bass-midwoofer

        €68,45

        10+ Op voorraad

        SB Acoustics SB15MFC30-4 Polypropylene Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 56,57€ 68,45 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 65,03 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving SB Acoustics SB15MFC30-4 Bass-midwoofer

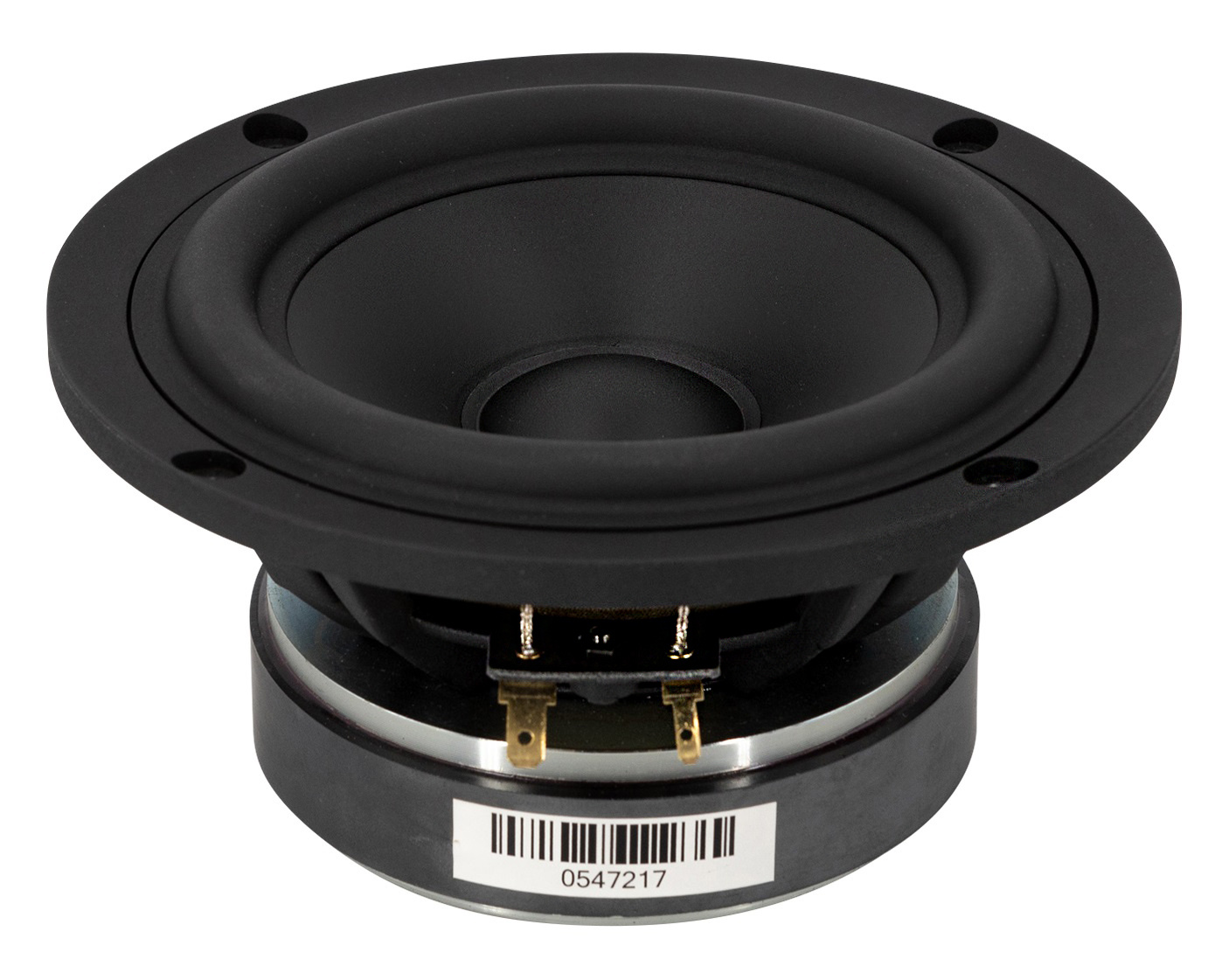

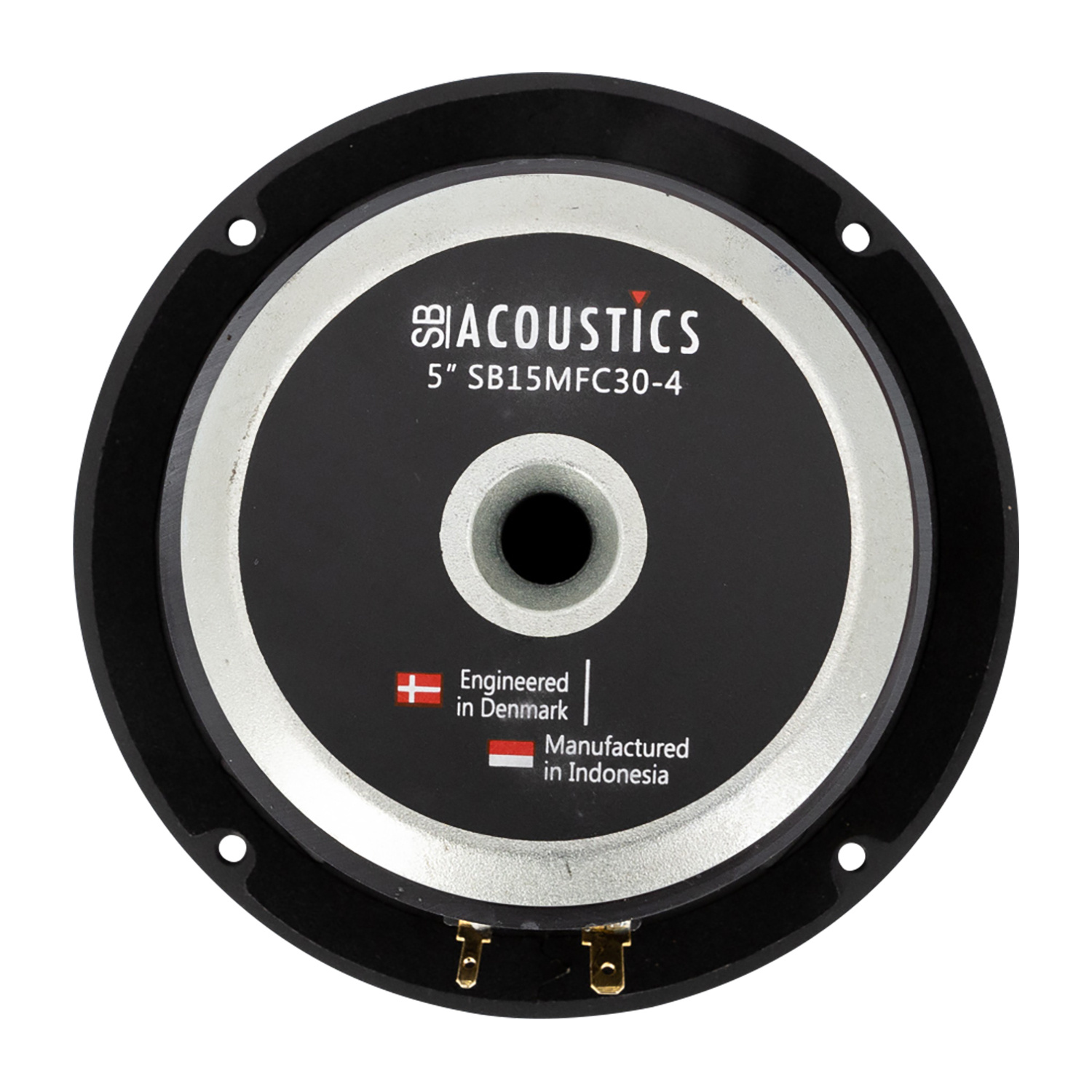

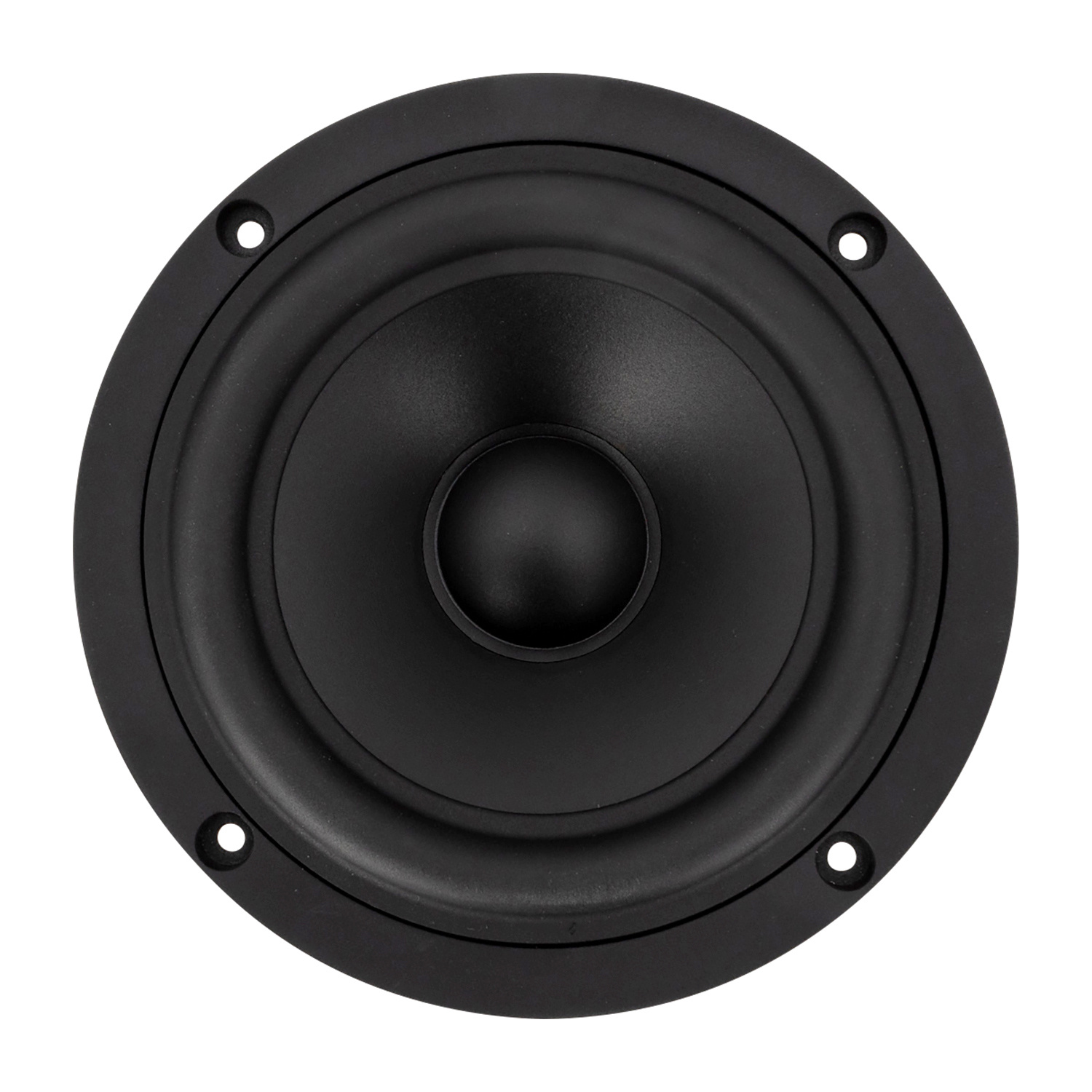

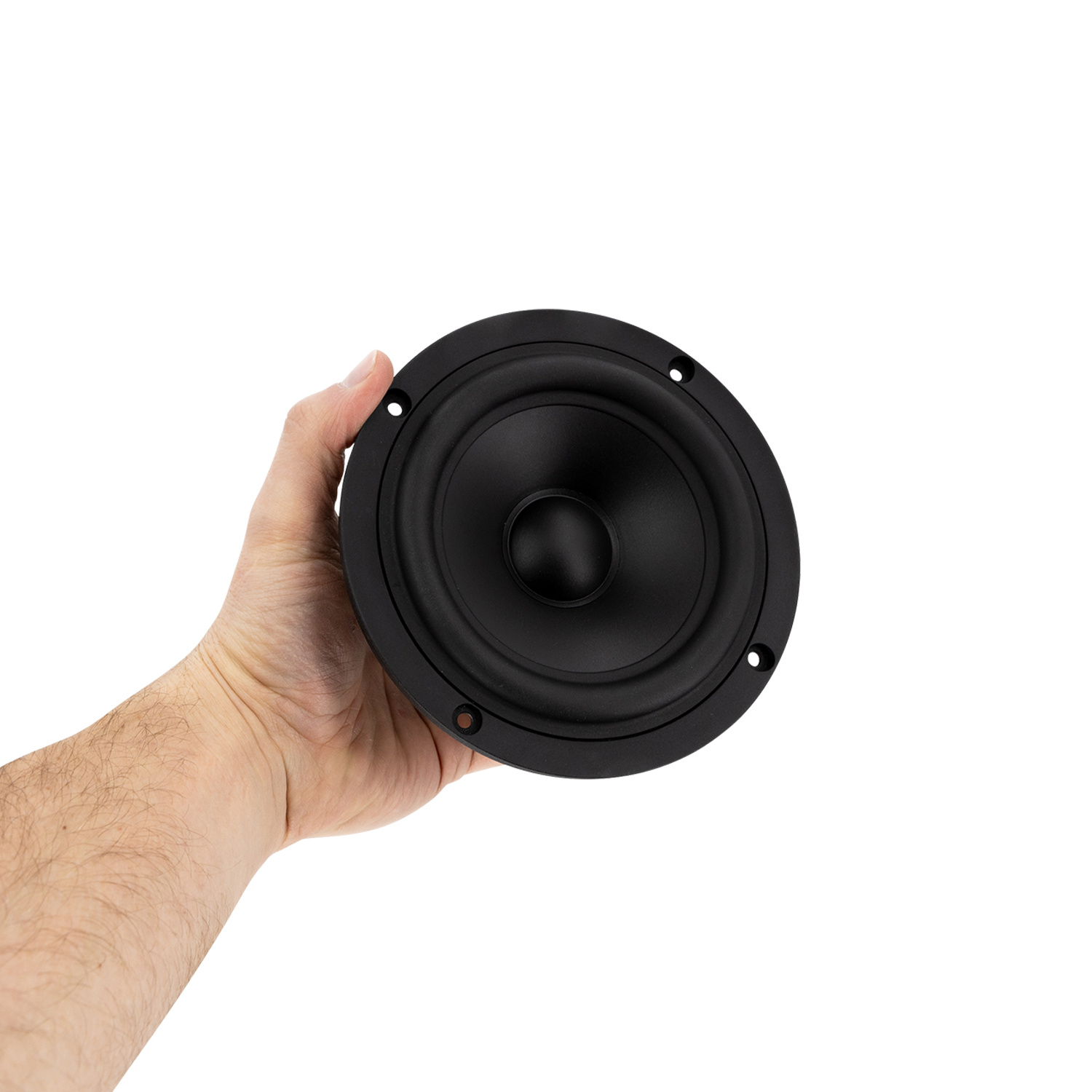

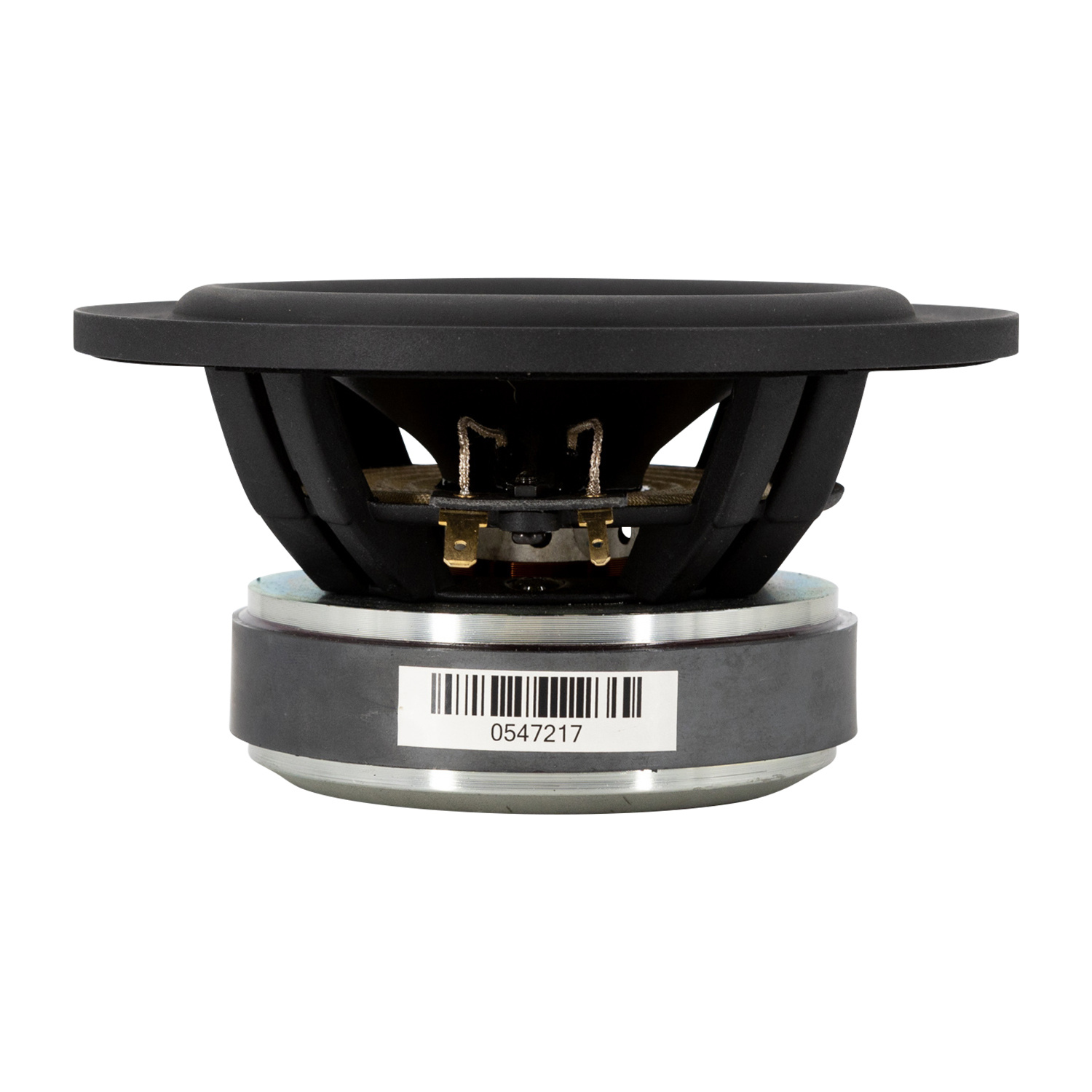

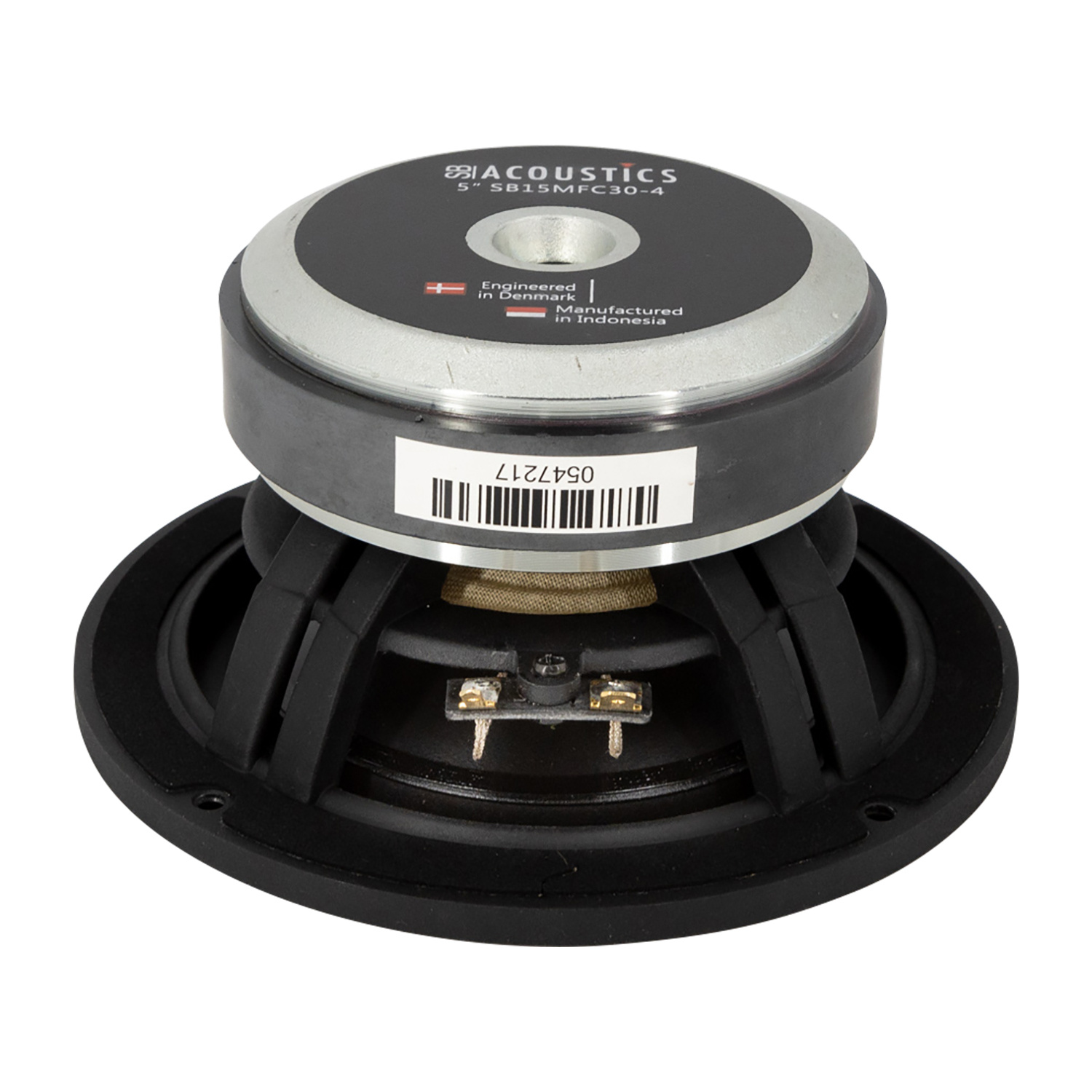

        The SB15MFC30-4 is a 4-ohm 5-inch mid-woofer from SB Acoustics. It has a mineral filled polypropylene (PP) cone, a vented cast aluminum chassis, and a soft low damping rubber surround.



        Highlights

        • Vented cast aluminium chassis for optimum strength and low compression
        • Mineral filled PP-cone made in-house
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fibre glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB15MFC30-4 Polypropylene Bass-midwoofer



        The SB Acoustics SB15MFC30-4 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels. It has a frequency response of 35-2000 Hz, a sensitivity of 89 dB, and an impedance of 4 ohms. The woofer is made with a mineral-filled polypropylene cone, a rubber surround, and a CCAW voice coil. It has a vented cast aluminum chassis for strength and low compression.



        The SB Acoustics SB15MFC30-4 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels.

        Toon meer

        Specificaties

        Artikelnummer
        SB15MFC30-4
        EAN
        8785256847914
        Woofer type
        Bass-midwoofer
        Nominale diameter
        5 inch
        Belastbaarheid (max)
        50 Watt
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        90 dB
        Frequentierespons
        35-2000 Hz
        Spreekspoeldiameter
        30.5 mm
        Gewicht magneet
        0.54 kg
        Gelijkstroomweerstand (Re)
        3.1 Ohm
        Resonantiefrequentie (Fs)
        35.5 Hz
        Mechanische Q (Qms)
        5.26
        Elektrische Q (Qes)
        0,30
        Totale Q (Qts)
        0,28
        Bewegende massa (Mms)
        9.9 g
        Compliantie van de ophanging (Cms)
        2.03 mm/N
        Effectief oppervlak (Sd)
        82 cm2
        Equivalentvolume (Vas)
        19,4 liters
        Driver's Mechanical Losses (Rms)
        0.42 kg/s
        Mand- /framemateriaal
        Vented cast aluminium
        Totale buitendiameter
        150 mm
        Totale diepte
        79 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        4,3 mm
