        SB15NAC30-8 Bass-midwoofer

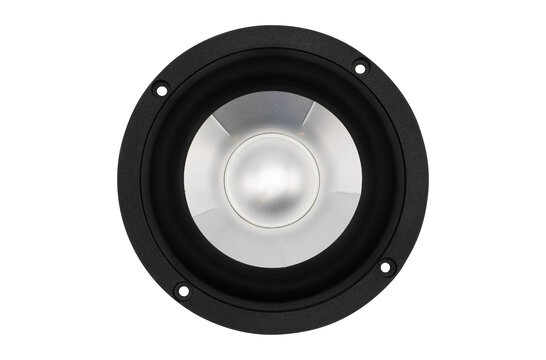

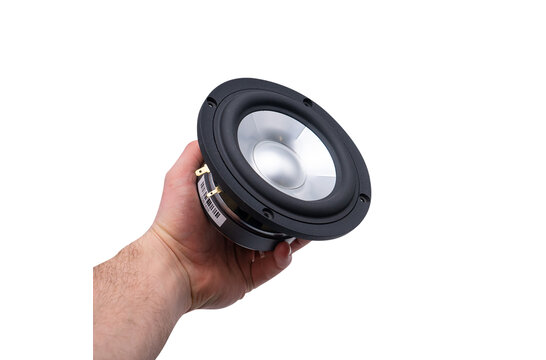

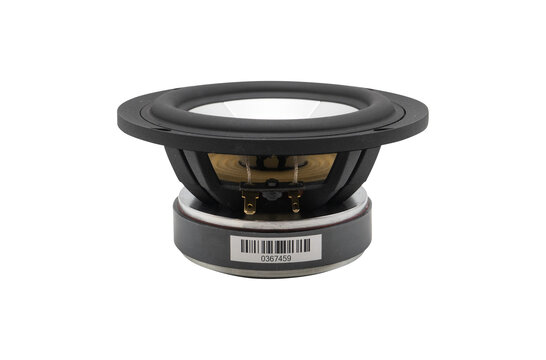

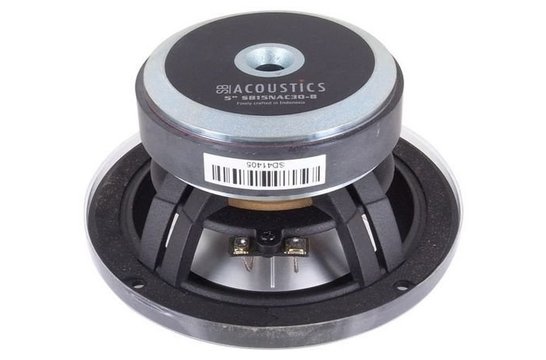

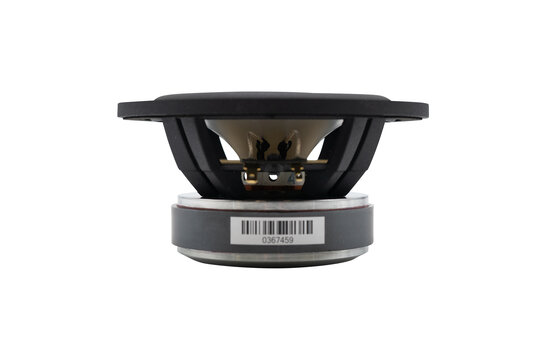

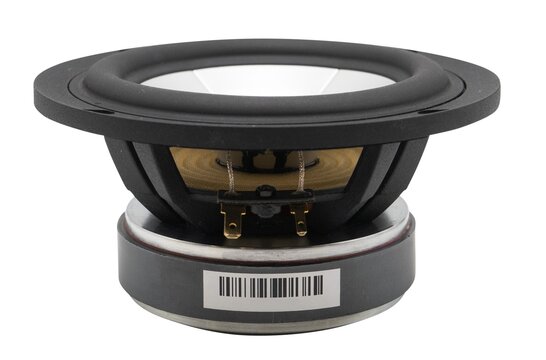

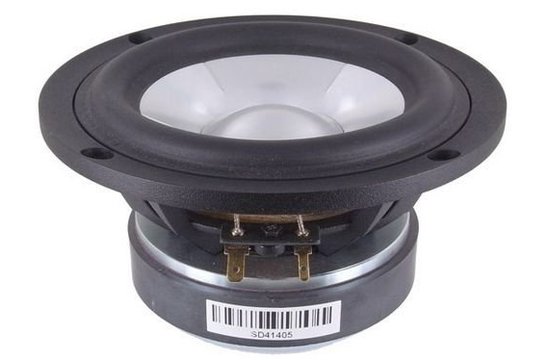

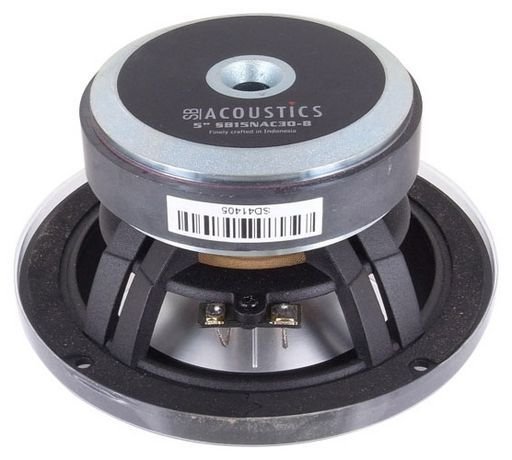

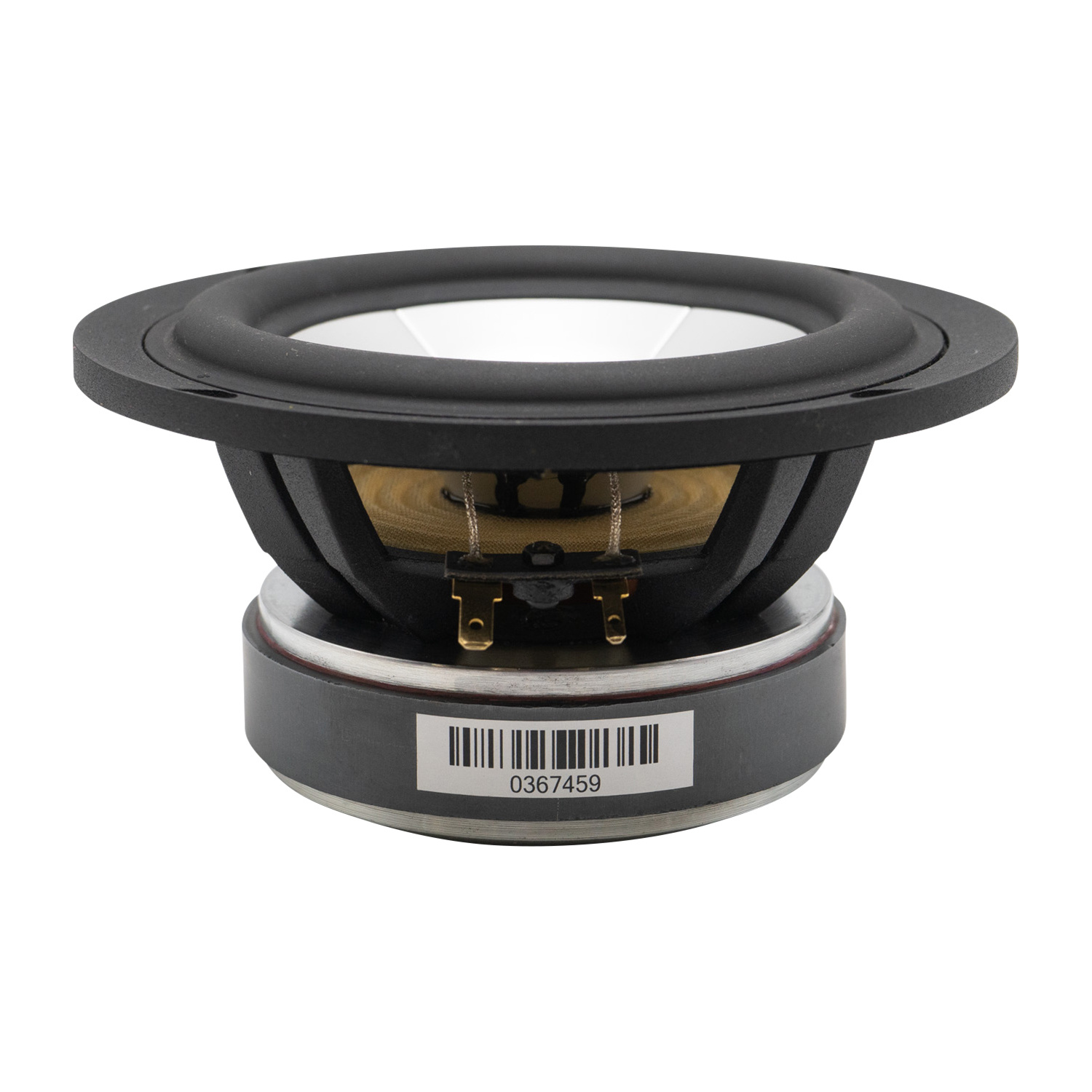

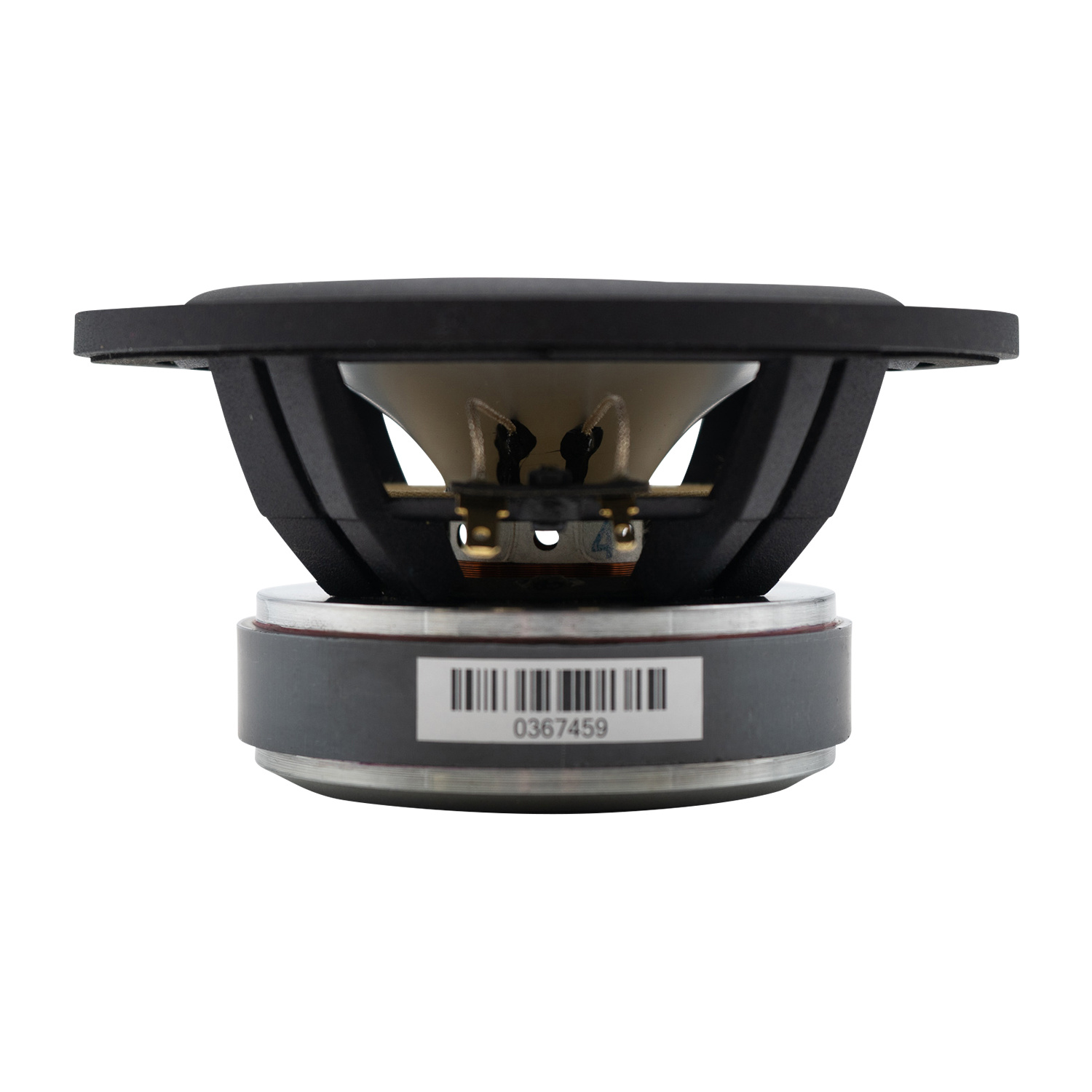

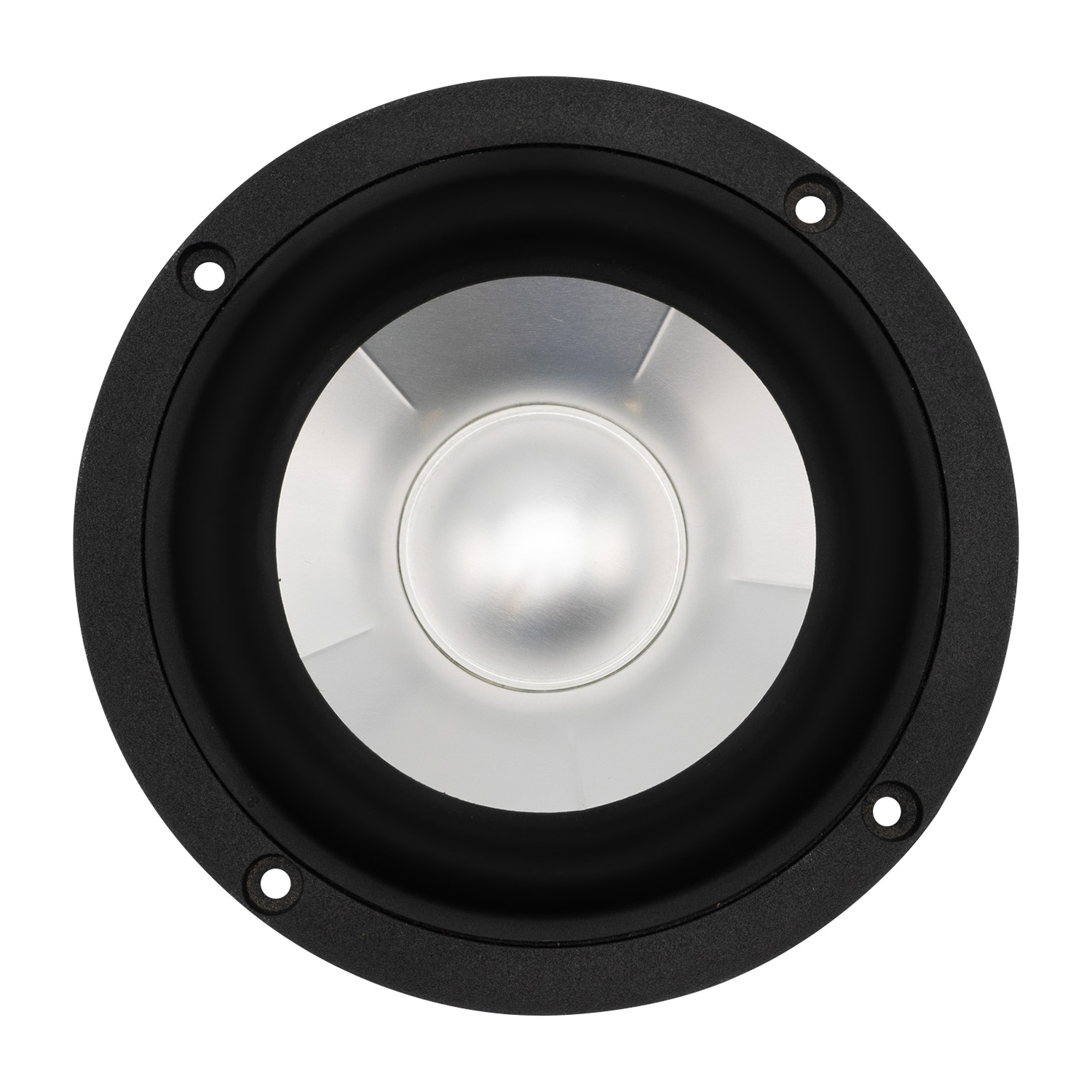

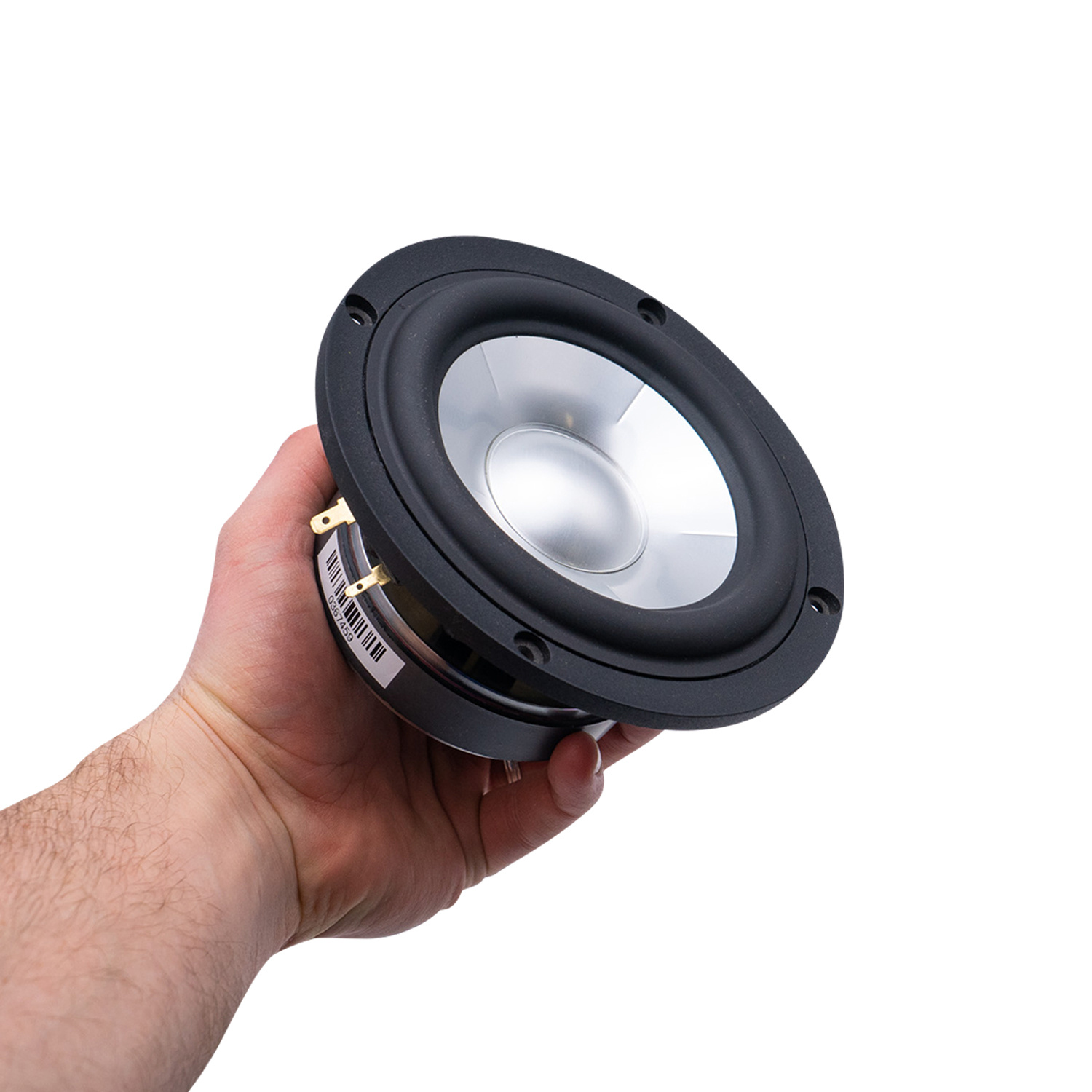

        SB Acoustics SB15NAC30-8 Bass-midwoofer

        €82,95

        8 Op voorraad

        SB Acoustics SB15NAC30-8 Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 68,55€ 82,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 78,80 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving SB Acoustics SB15NAC30-8 Bass-midwoofer

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB15NAC30-8 5'' Mid-Woofer



        SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.



        Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

        Toon meer

        Specificaties

        Artikelnummer
        SB15NAC30-8
        EAN
        0696277269402
        Woofer series
        SB Acoustics NAC Aluminum series
        Woofer type
        Midwoofer
        Nominale diameter
        5"
        Belastbaarheid (RMS)
        50 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        85.5 dB
        Spreekspoeldiameter
        1.2"
        Gelijkstroomweerstand (Re)
        5.7 ohms
        Spreekspoelinductie (Le)
        0.14 mH
        Resonantiefrequentie (Fs)
        35.5 Hz
        Mechanische Q (Qms)
        6
        Elektrische Q (Qes)
        0.39
        Totale Q (Qts)
        0.37
        Bewegende massa (Mms)
        10.8 g
        Compliantie van de ophanging (Cms)
        1.86 mm/N
        Effectief oppervlak (Sd)
        82 cm2
        Krachtsfactor (BL)
        5.9 Tm
        Equivalentvolume (Vas)
        0.62 ft.³
        Maximale excursie (Xmax)
        5 mm

        Toon meer
