        Productomschrijving SB Acoustics SB15NBAC30-4 Bass-midwoofer

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

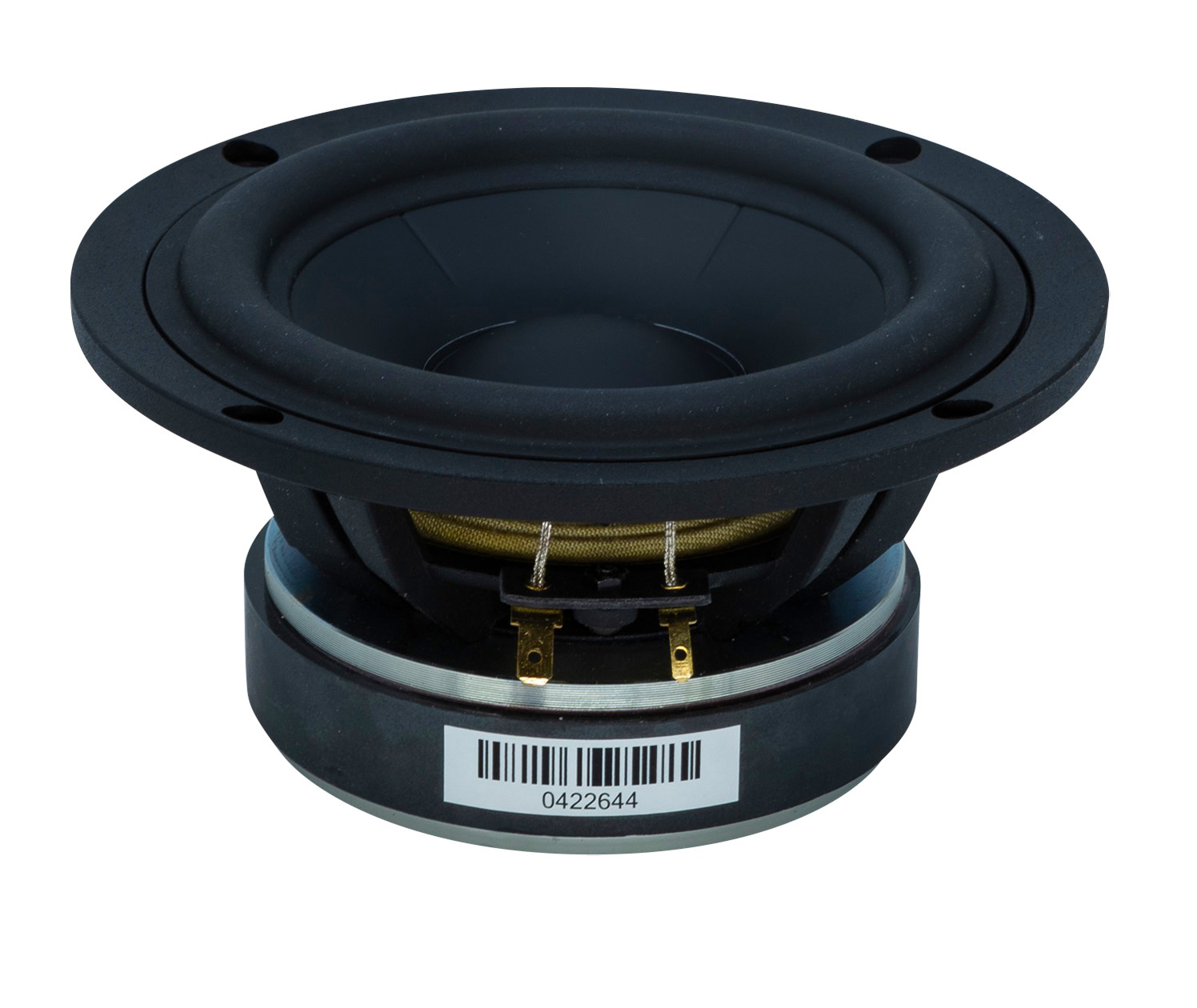

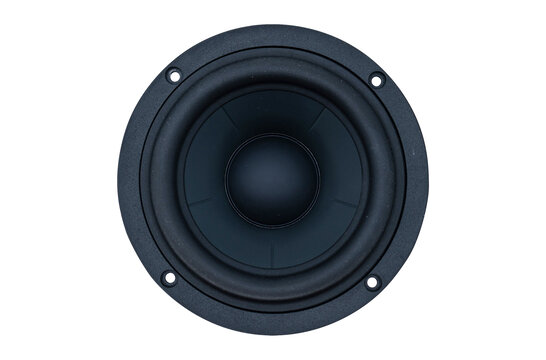

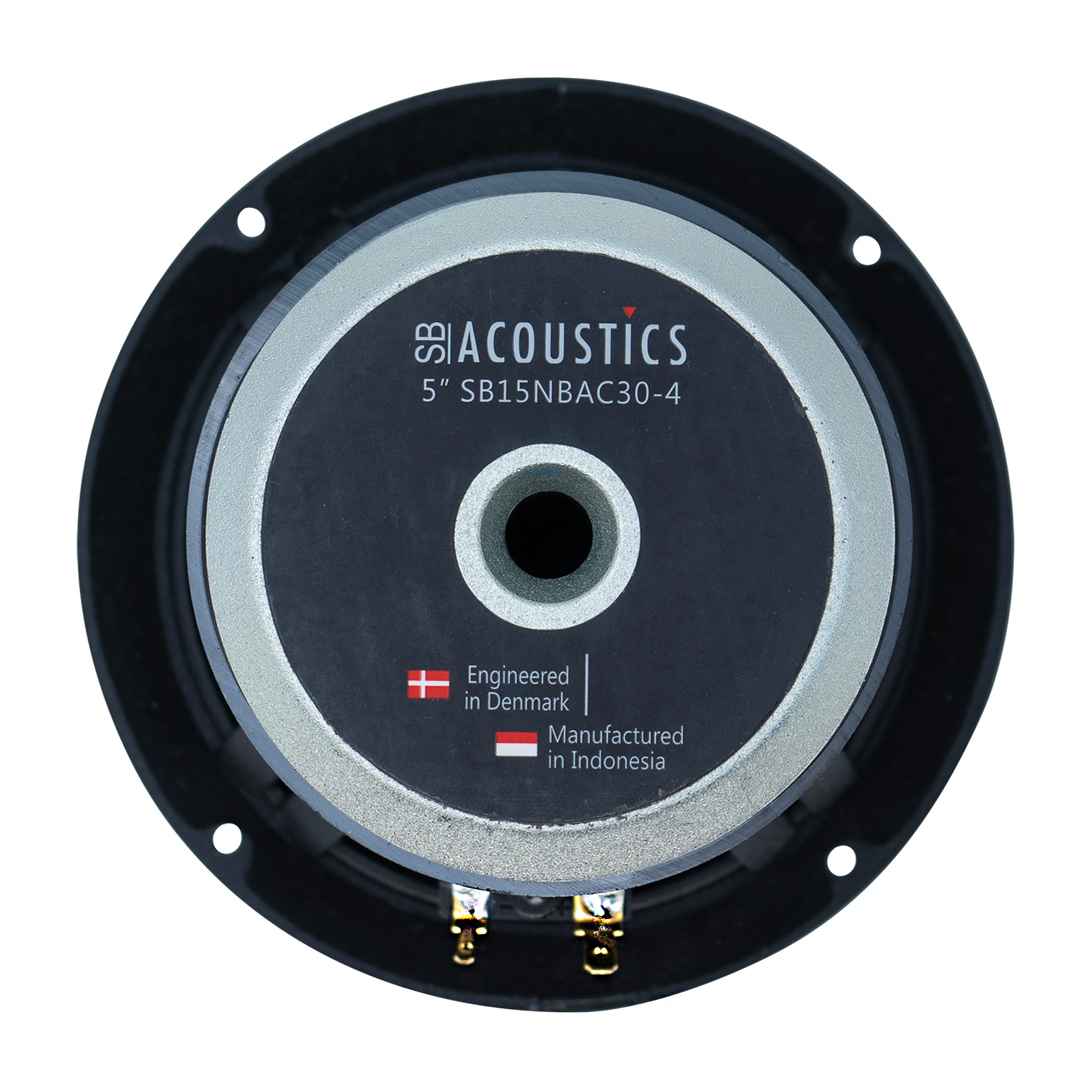

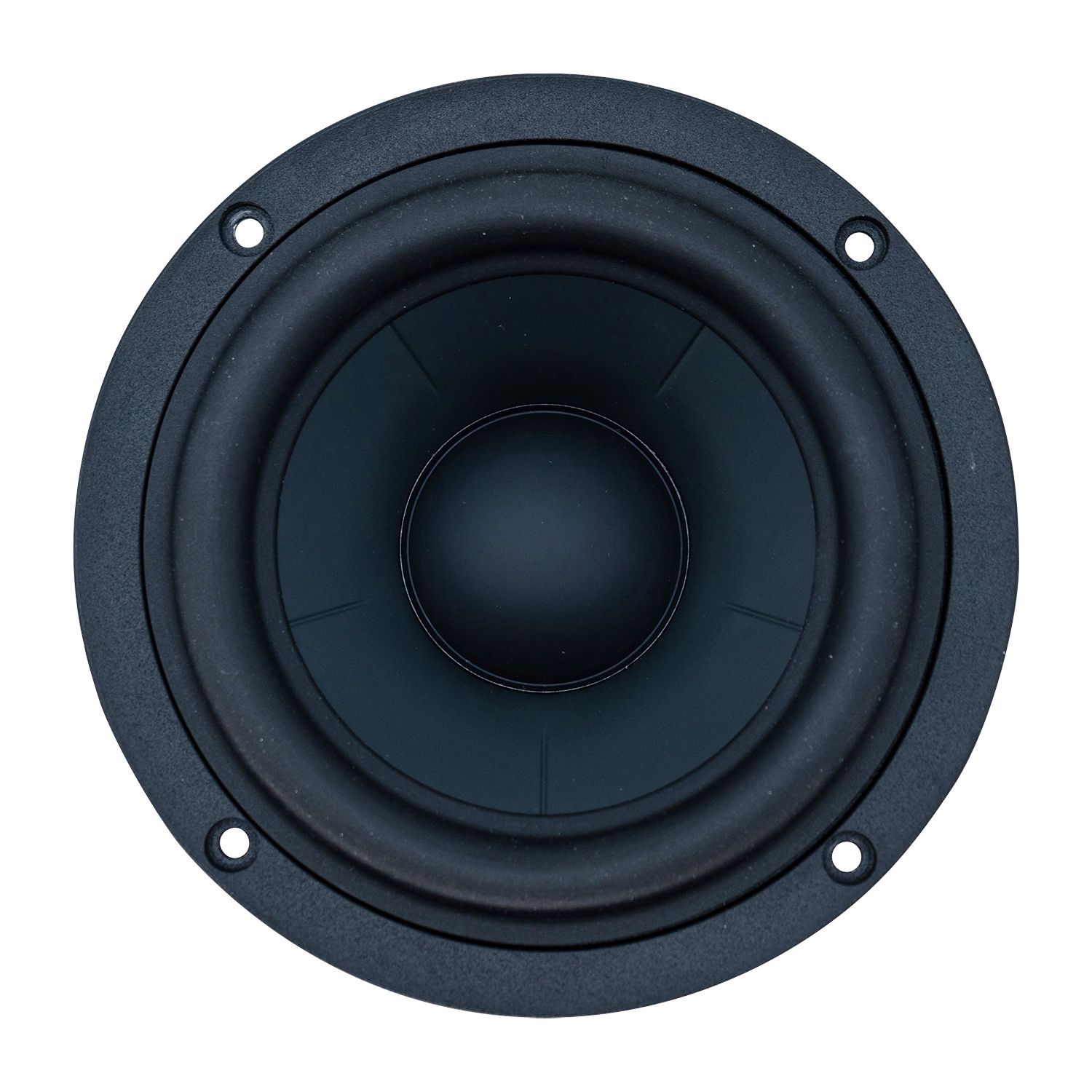

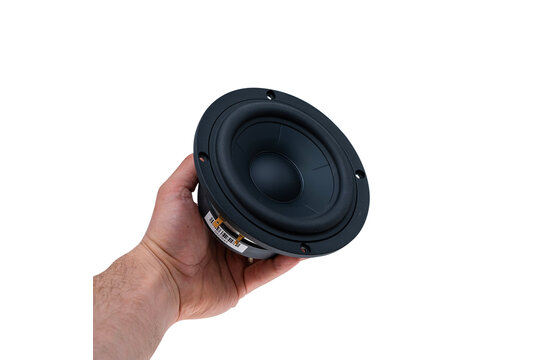

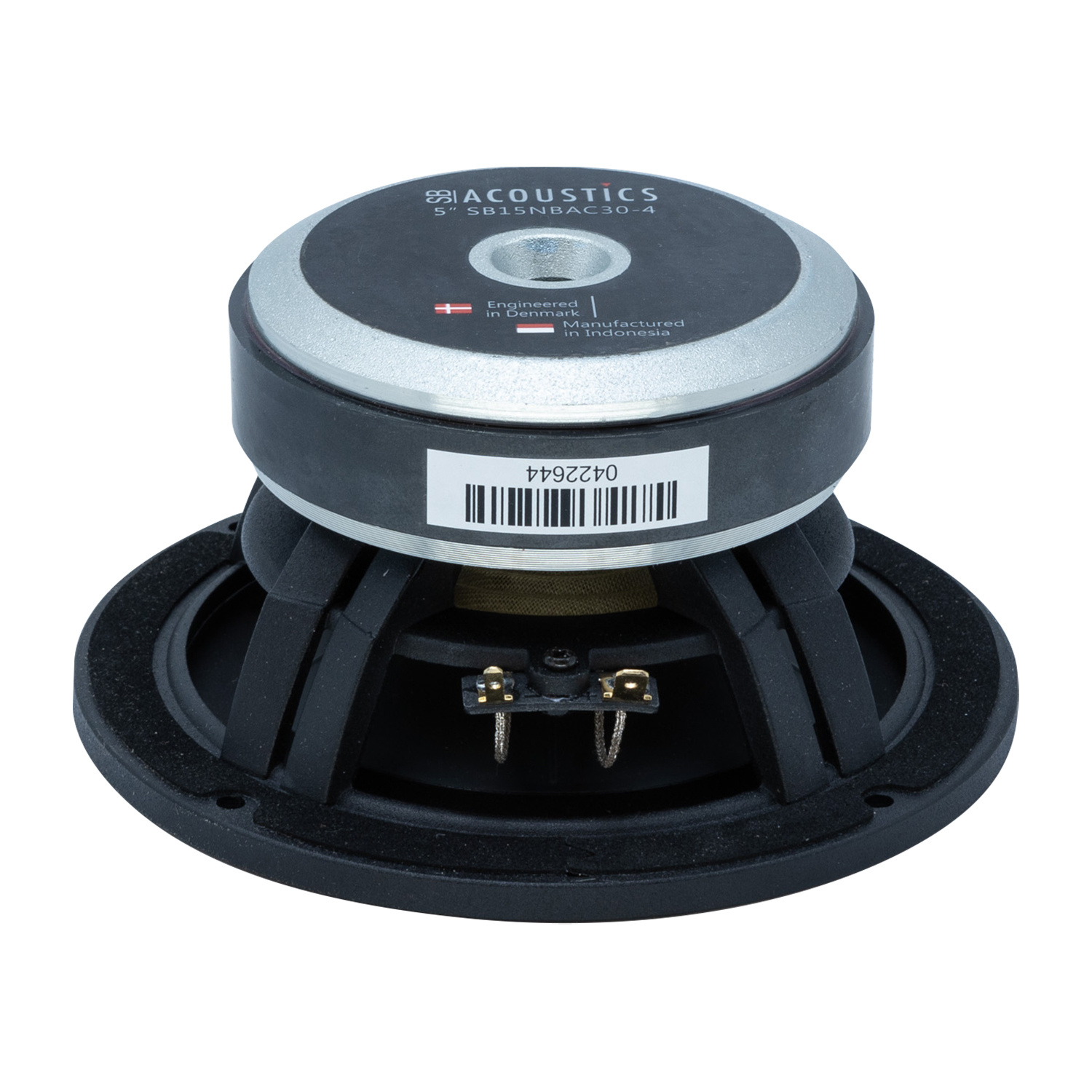

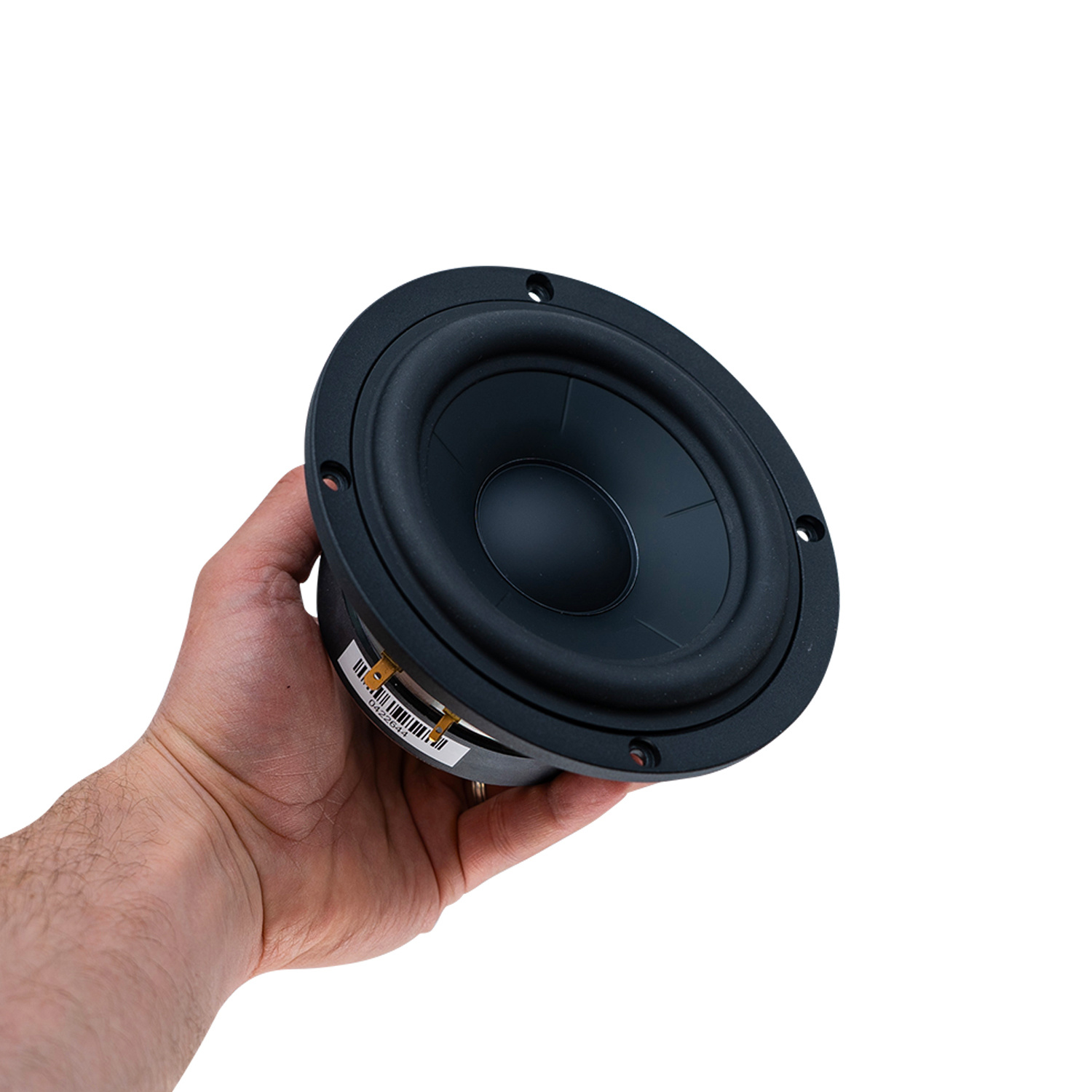

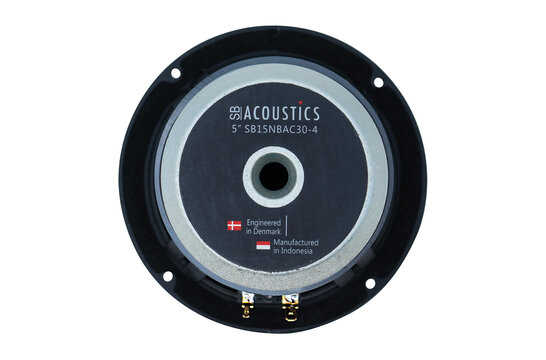

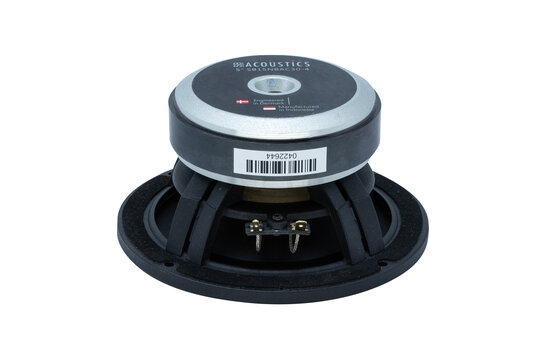

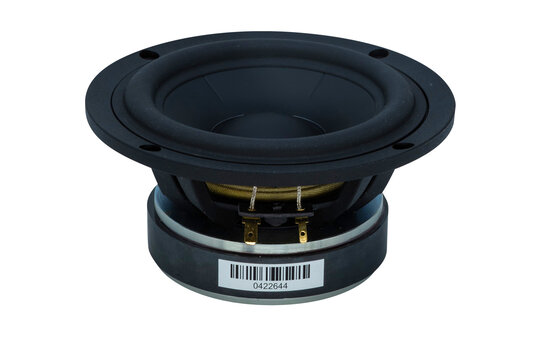

        SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass



        The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression. Its geometrically reinforced aluminum cone gives it an optimum piston operation and a reduced break-up. Minimum damping and low inductance and distortion thanks to its non-conducting fiber glass voice coil former and extended copper sleeve on the pole piece. CCAW voice coil, long life silver lead wires and vented pole piece for a reduced compression.

        Toon meer

        Specificaties

        Artikelnummer
        SB15NBAC30-4
        EAN
        0696277269419
        Woofer series
        SB Acoustics NAC Aluminum series
        Woofer type
        Midwoofer
        Nominale diameter
        5"
        Belastbaarheid (RMS)
        50 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Spreekspoeldiameter
        1.2"
        Gelijkstroomweerstand (Re)
        3.1 ohms
        Spreekspoelinductie (Le)
        0.12 mH
        Resonantiefrequentie (Fs)
        33 Hz
        Mechanische Q (Qms)
        4.4
        Elektrische Q (Qes)
        0.31
        Totale Q (Qts)
        0.29
        Bewegende massa (Mms)
        10.6 g
        Compliantie van de ophanging (Cms)
        2.2 mm/N
        Effectief oppervlak (Sd)
        82 cm2
        Krachtsfactor (BL)
        4.7 Tm
        Equivalentvolume (Vas)
        0.74 ft.³
        Maximale excursie (Xmax)
        5 mm

        Toon meer

        Reviews

        1 reviews
        Schrijf een review
        5 van 5
        In a 10L cabinet with a 1inch port this driver can produce some great low end. Detailed and soft bass and midrange. Great driver
        Door Marcel on 11 Maart 2022
