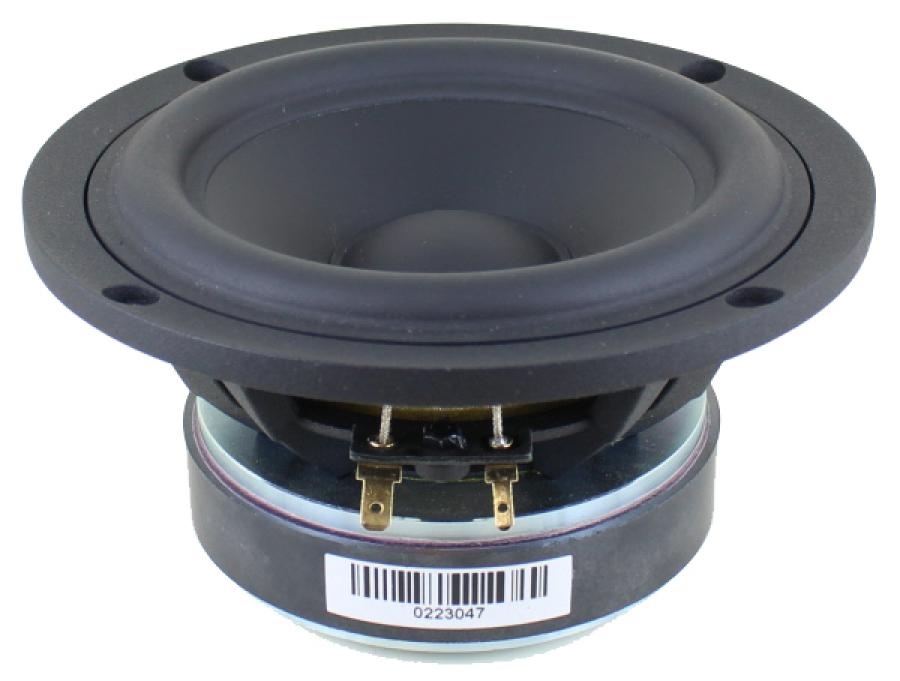

        SB15NRX2C30-4 Norex Bass-midwoofer

        SB Acoustics SB15NRX2C30-4 Norex Bass-midwoofer

        €68,45

        9 Op voorraad

        SB Acoustics SB15NRX2C30-4 Norex Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 56,57€ 68,45 9 Op voorraad
        • -5% Bestel 4 voor slechts € 65,03 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving SB Acoustics SB15NRX2C30-4 Bass-midwoofer

        The SB Acoustics SB15NRX2C30-4 is a 5-inch bass-midwoofer speaker driver. It features a vented cast aluminum chassis for optimum strength and low compression, a proprietary cone material with natural fibers made in-house, a soft low damping rubber surround for improved transient response and a non-conducting fiber glass voice coil former for minimum damping.



        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB15NRX2C30-4 Norex Bass-midwoofer



        The SB Acoustics SB15NRX2C30-4 is a 5-inch bass-midwoofer speaker driver that is designed to produce high-quality sound. The vented cast aluminum chassis provides the speaker with optimum strength and low compression, which helps to reduce distortion and improve sound quality. The proprietary cone material with natural fibers made in-house is designed to provide a high level of rigidity and low mass, which helps to improve the speaker’s transient response and overall sound quality. The soft low damping rubber surround is designed to provide a high level of damping, which helps to reduce distortion and improve the speaker’s transient response. Finally, the non-conducting fiber glass voice coil former is designed to provide a high level of damping, which helps to reduce distortion and improve the speaker’s transient response.

        Toon meer

        Specificaties

        Artikelnummer
        SB15NRX2C30-4
        EAN
        8785256848058
        Woofer series
        SB Acoustics NRX Norex series
        Nominale diameter
        150 mm
        Belastbaarheid (RMS)
        50 Watt
        Belastbaarheid (max)
        100 Watt
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        89.5 dB
        Frequentierespons
        40-4500 Hz
        Spreekspoeldiameter
        31 mm
        Gewicht magneet
        0.54 kg
        Gelijkstroomweerstand (Re)
        3.1 Ohm
        Spreekspoelinductie (Le)
        0.12 mH
        Resonantiefrequentie (Fs)
        36 Hz
        Mechanische Q (Qms)
        4.53
        Elektrische Q (Qes)
        0.31
        Totale Q (Qts)
        0.29
        Bewegende massa (Mms)
        9.7 g
        Compliantie van de ophanging (Cms)
        2.15 mm/N
        Effectief oppervlak (Sd)
        82 cm²
        Krachtsfactor (BL)
        4.7 Tm
        Equivalentvolume (Vas)
        18.6 liters
        Maximale excursie (Xmax)
        5.0 mm
        Driver's Mechanical Losses (Rms)
        0.5 kg/s
        Mand- /framemateriaal
        Vented cast aluminum
        Totale buitendiameter
        150 mm
        Totale diepte
        78.9 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        4.3 mm

        Toon meer

        5 van 5
        This is a superb midbass driver for very good price!
        Door Nagy on 5 December 2023
