        SB17NRXC35-8 Bass-midwoofer

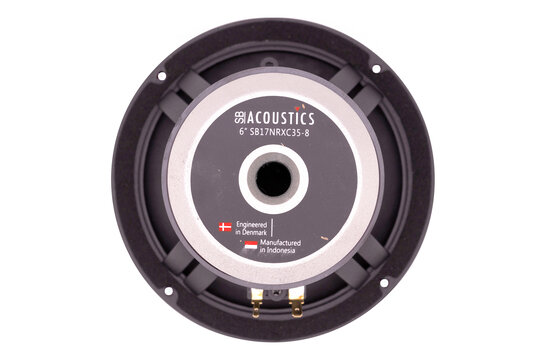

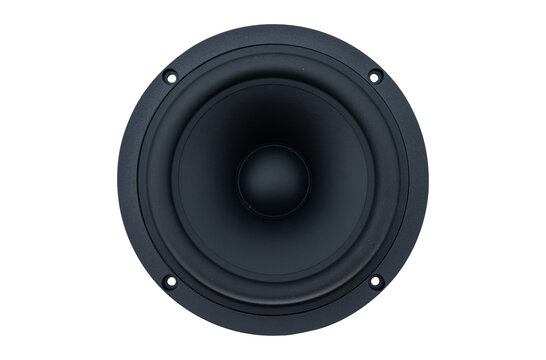

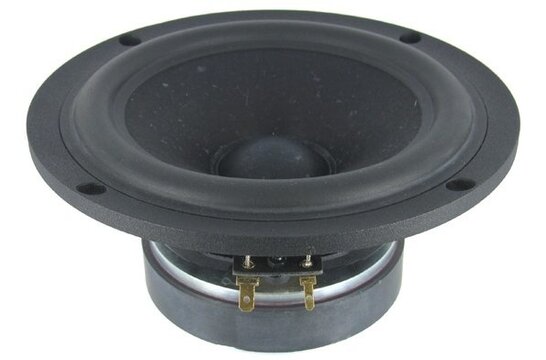

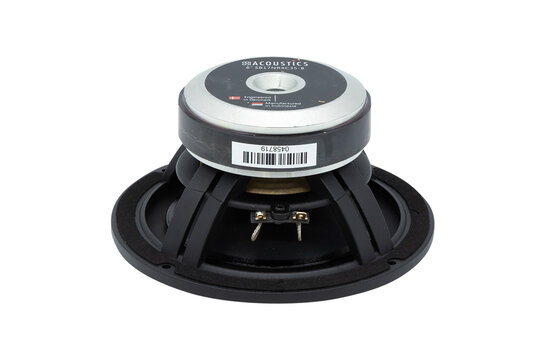

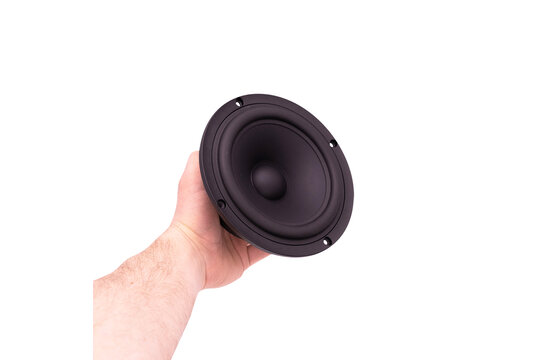

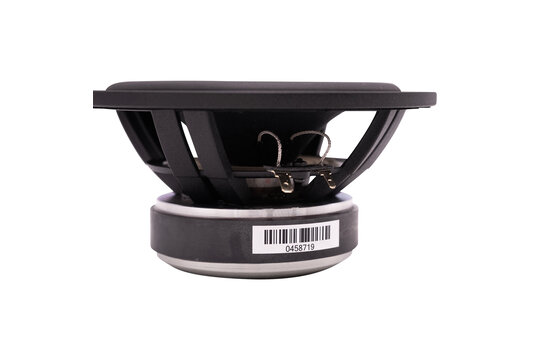

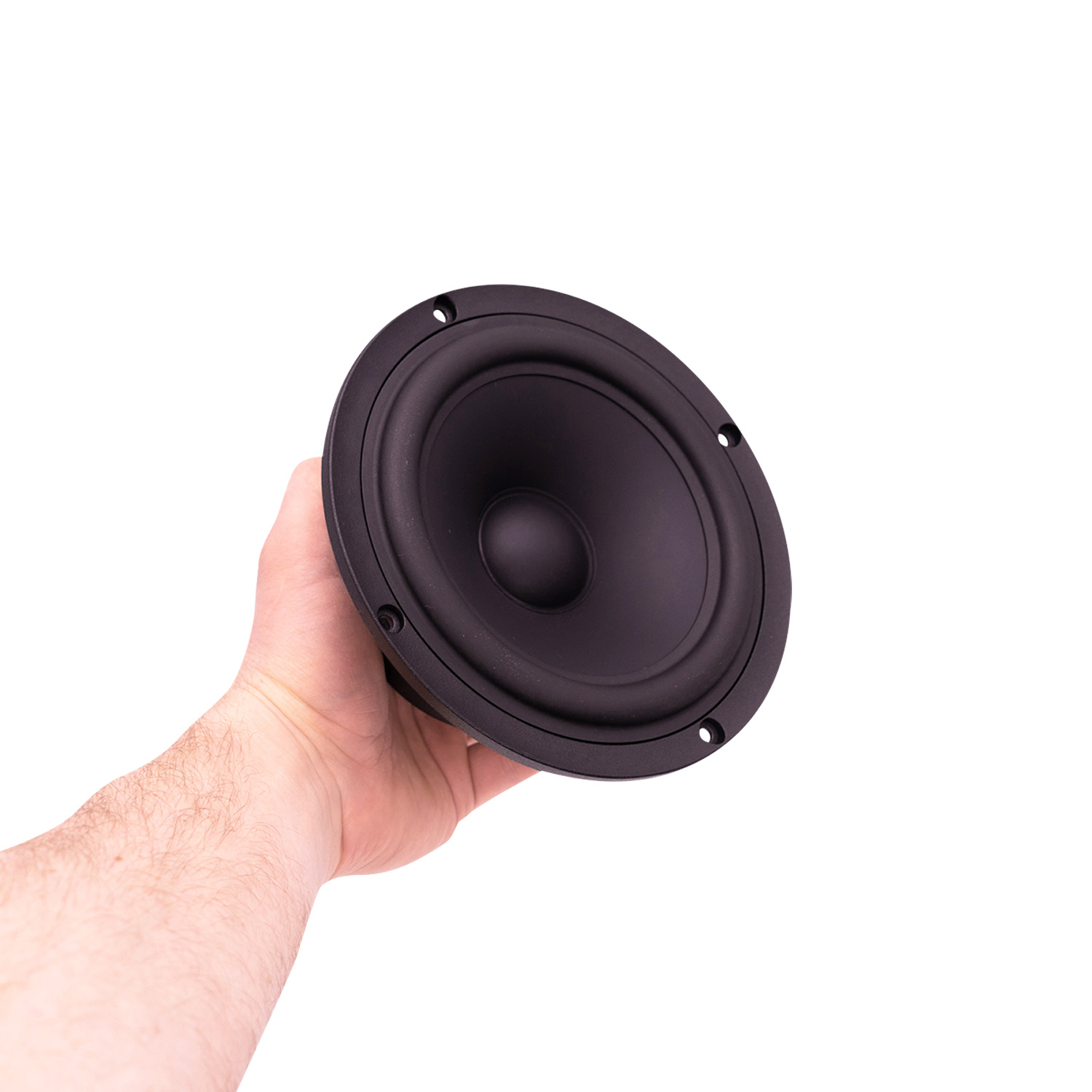

        SB Acoustics SB17NRXC35-8 Bass-midwoofer

        €72,95

        7 Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics SB17NRXC35-8 Bass-midwoofer

        3 reviews
        4 van 5
        3 reviews
        5 sterren
        33%
        4 sterren
        67%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle Bass-mid woofer
        6" | 8 Ω
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        € 60,29€ 72,95 7 Op voorraad
        • -5% Bestel 4 voor slechts € 69,30 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer
        SB17NRXC35-8 Bass-midwoofer

        Productomschrijving SB Acoustics SB17NRXC35-8 Bass-midwoofer

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • vented pole piece for reduced compression



        Product details

        SB Acoustics SB17NRXC35-8 6" Midrange Woofer



        Newly developed Norecx non-resonant poly-coated papyrus fiber cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive CCAW fiber glass 300mm coil former. Silver lead wires. Vented pole piece.



        The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To this end, SBA are proud to present their NRX series where close attention has been payed to design engineering with manufacturing materials and processes to optimize performance.

        Toon meer

        Specificaties

        Artikelnummer
        SB17NRXC35-8
        EAN
        0696277269044
        Woofer series
        SB Acoustics NRX Norex series
        Woofer type
        Midwoofer
        Nominale diameter
        6"
        Belastbaarheid (RMS)
        60 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        89 dB
        Spreekspoeldiameter
        1.4"
        Gelijkstroomweerstand (Re)
        5.7 ohms
        Spreekspoelinductie (Le)
        0.15 mH
        Resonantiefrequentie (Fs)
        32 Hz
        Mechanische Q (Qms)
        5
        Elektrische Q (Qes)
        0.36
        Totale Q (Qts)
        0.34
        Bewegende massa (Mms)
        11
        Compliantie van de ophanging (Cms)
        2.25 mm/N
        Effectief oppervlak (Sd)
        118 cm2
        Krachtsfactor (BL)
        5.9 Tm
        Equivalentvolume (Vas)
        1.57 ft.³
        Maximale excursie (Xmax)
        5.5 mm
        Gesloten volume
        14L - 25L (less damped - damped)
        Gepoort volume
        13L @ 35Hz - 17L @ 37Hz (damped - less damped)

        Toon meer

        Reviews

        3 reviews
        Schrijf een review
        4 van 5
        I used this driver to replace my damaged old one. I measured TS parameters before installing it into my enclosure. The TS parameters were not acc. to driver spec. yet (e.g. Fs was not 32 Hz as defined, but was 47 Hz). It is OK because driver was not burned in. It will need time. It is important to take it into consideration if you are building a crossover from the meaured not burned in driver.
        Door Michal on 31 Maart 2024
        5 van 5
        For my old Autovector speakers, I have replaced all mid-woofers with this unit - SB Acoustics SB17NRXC35-8 Perfect - highly recommendable.
        Door Anders Larsen on 5 Juli 2022
